WHI Steel Fire Proof Door With Good Sound Insulation Performance For Industrial Construction Fire Safety Requirements In North America

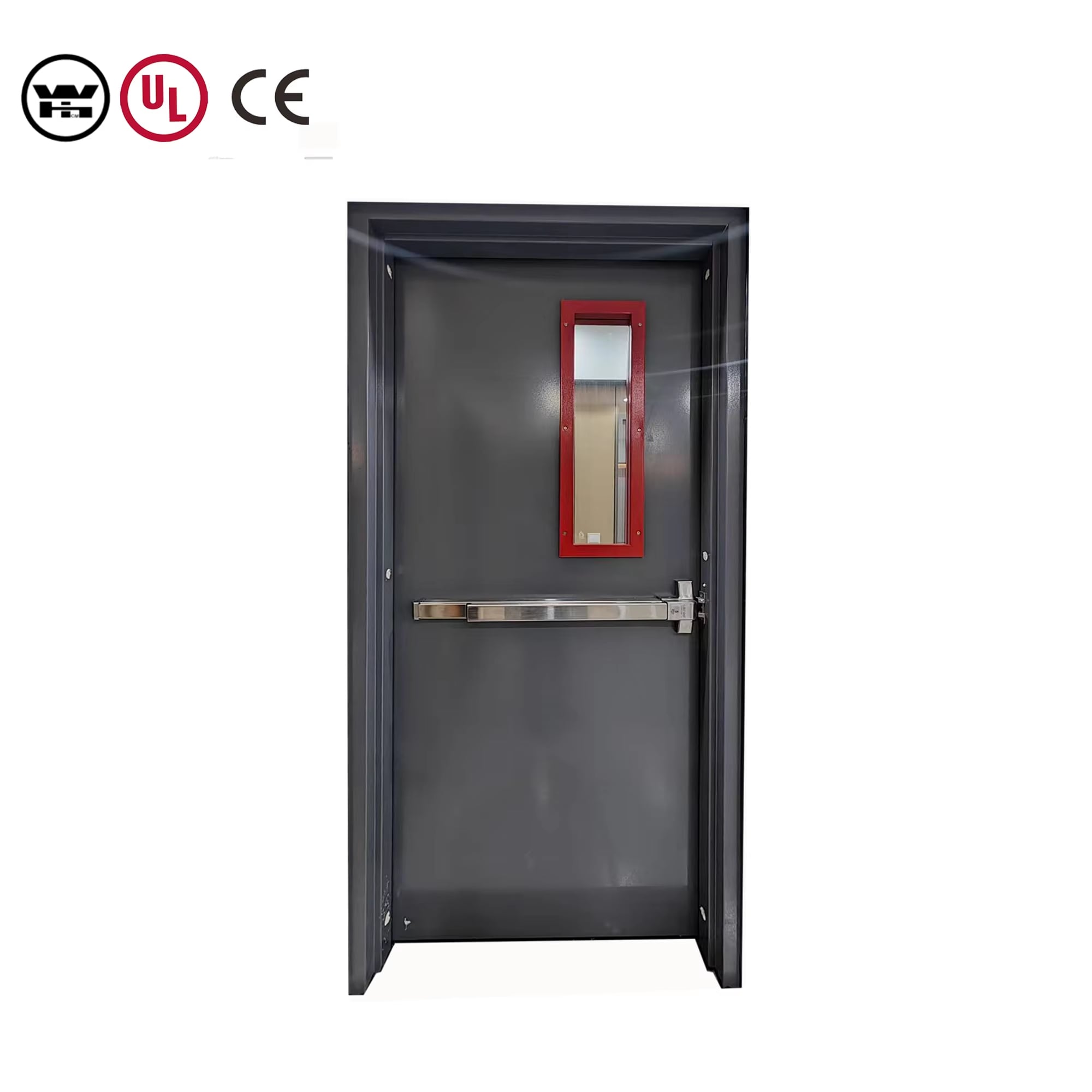

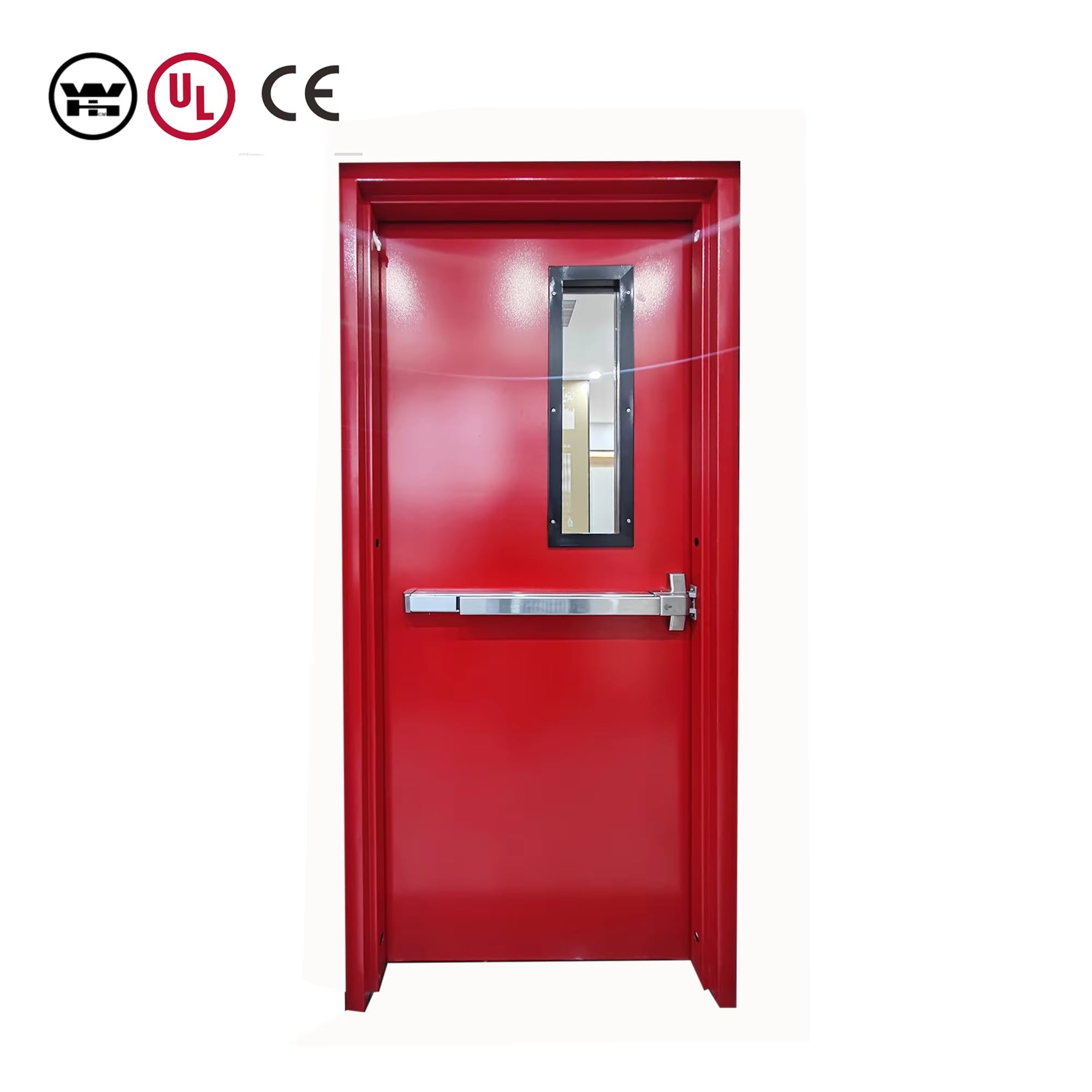

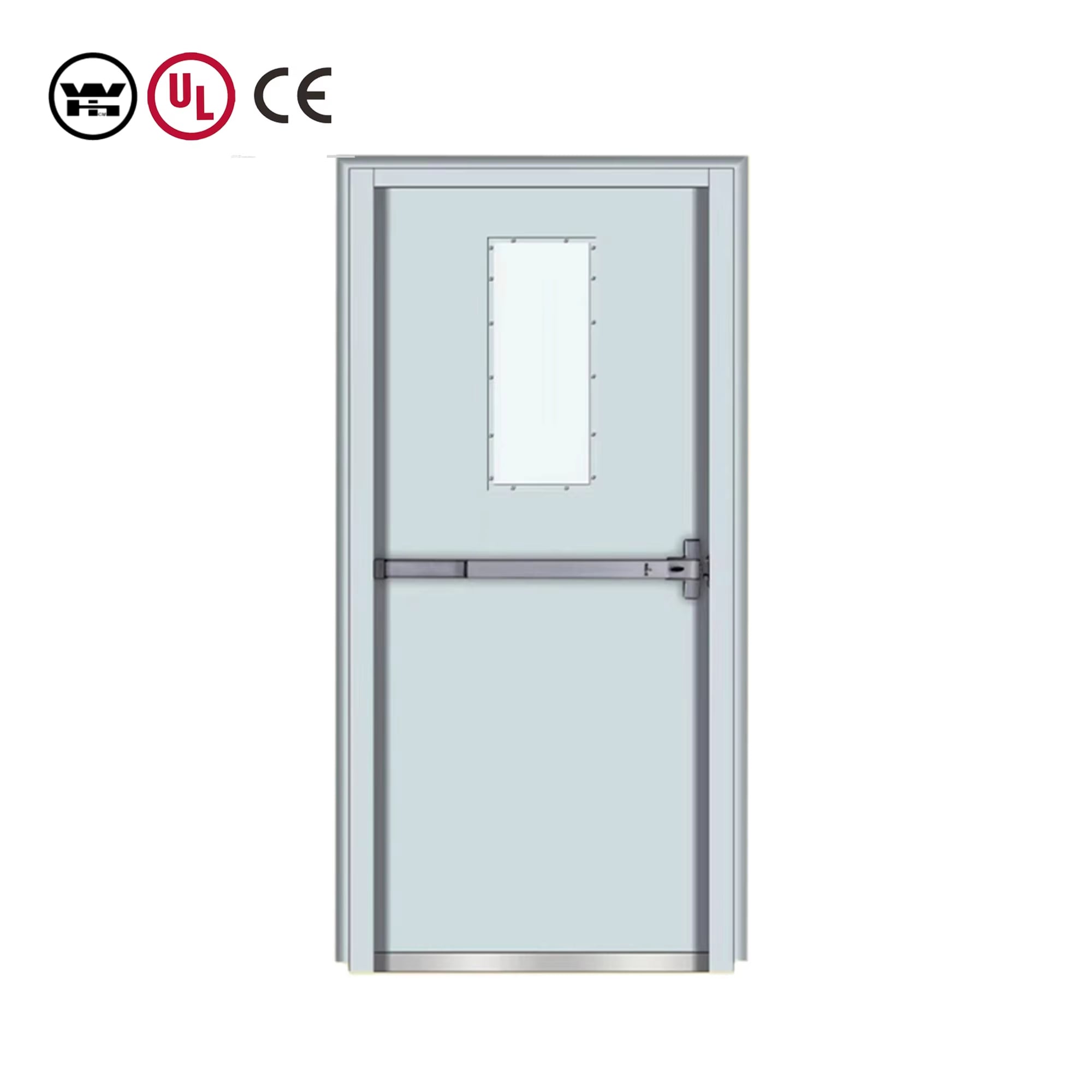

The panic exit device is made from high-quality stainless steel, durable and anti-rust. It’s for fire escape doors, which are critical in emergencies. Fire - rated, it will withstand a fire's high temperatures. It has a user – friendly design, allowing for fast and easy operation, even under duress.
- Overview
- Related Products
UL Fire Test

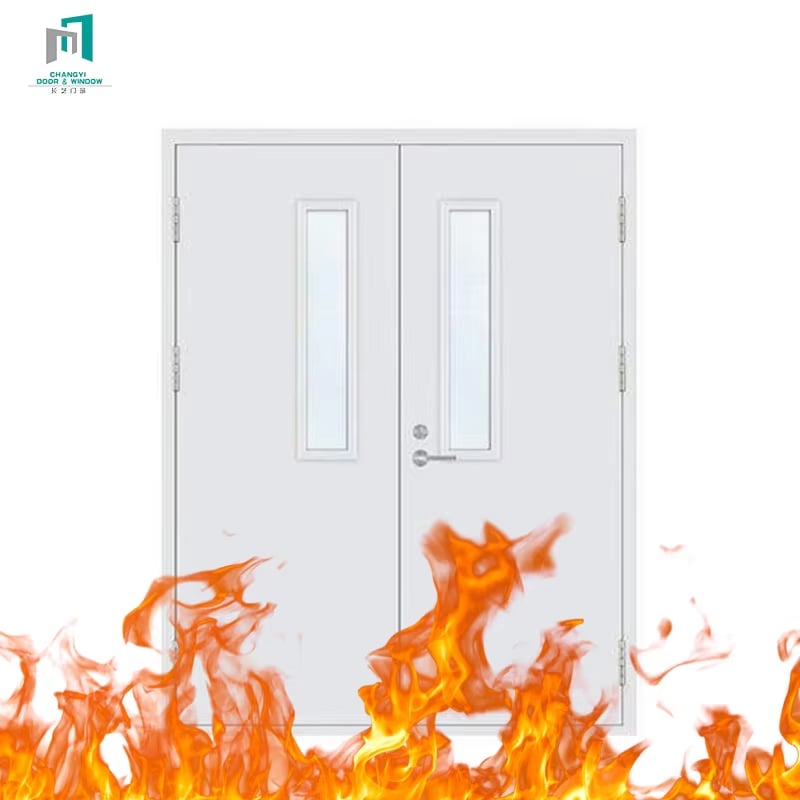

Premium Fire Rated Steel Doors for Maximum Commercial Building Protection
Constructed from heavy-duty 18-gauge galvanized steel, these fire resistant doors provide robust structural integrity and long-lasting protection. The non-handed design with reversible hinge plates ensures flexible installation in any door opening configuration, simplifying procurement and reducing inventory complexity for contractors and facility managers.
* Fire-rated protection up to 3 hours, providing critical evacuation time
* 1-3/4" thick construction with perlite fireproof board or rock wool
* Interlocking seam technology enhances structural rigidity and overall durability
* Factory-applied rust inhibiting primer ensures long-term corrosion resistance
* Fire-rated glass options available for vision lite configurations
* Compliant with international fire safety standards for commercial applications
Products Description
Fire rated steel doors play an essential role in protecting human life and minimizing property damage during fire emergencies. These labeled fire resistant doors effectively control the spread of fire and toxic smoke for durations up to 3 hours, providing crucial time for safe building evacuation and firefighting response. Commercial fire doors manufactured from steel offer an economical yet highly effective alternative to wooden fire doors when protection ratings exceeding 20 minutes are required.
Steel remains the only door material capable of delivering a full 3-hour fire-rating, making it the preferred choice for high-risk commercial buildings, industrial facilities, hospitals, schools, and multi-story residential complexes. The inherent strength and non-combustible properties of steel provide unmatched reliability in fire barrier applications.
* Heavy-duty 18-gauge steel construction for superior impact resistance
* Rigid honeycomb or high-density polystyrene insulating core
* Intumescent sealing systems that expand during fire exposure
* Pre-hung configurations available for faster installation
* Compatible with panic hardware, closers, and access control systems
The steel fire door design incorporates precision-engineered components that work together as a complete fire barrier system. The door leaf, frame, hardware, and sealing components are tested and listed as a complete assembly to ensure optimal performance during actual fire conditions. This integrated approach guarantees that every element functions properly when protection is needed most.
Our fire rated steel doors feature factory-welded construction with reinforced corners and edges to prevent warping and maintain dimensional stability throughout the product lifecycle. The galvanized steel substrate resists corrosion even in harsh environments, while the factory-applied primer provides an ideal surface for field painting to match any architectural color scheme.
| Door Material | Galvanized Steel |
| Feature | Fire prevention |
| Application | Commercial Building |
| Design Style | Modern |
| Place of Origin | Shandong, China |
| Material | Galvanized Steel |
| After-sale Service | Online technical support |
| Project Solution Capability | Total solution for projects |
| Brand Name | Changyi |
| Model Number | SD-1 |
| Warranty | 3 years |
| Surface Finishing | Powder coating, color custom |
| Size | 914*2134mm/1828*2134mm/Customized |
| Main Material | Galvanized Steel |
| Door leaf thickness | 45mm |
| Infilling | Perlite Fireproof Board/Rock Wool |
| Advantage | Fireproof/Security door/Heat Insulation/Waterproof |
| Surface treatment | Powder Coating/Wood Grain Transfer |
| Color | White/Red/Blue/Customized Color |
| Selling Units | Single item |
| Single package size | 205X95X13 cm |
| Single gross weight | 68.000 kg |
Details Images
Style Selection
Product Production
Company Profile
Certificate
FAQ
Q: What fire resistance ratings are available for your steel fire doors?
A: We offer 30-180 minute fire-rated steel doors, tested to EN 1634-1, UL 10C or GB 12955 depending on your market.
Q: Can you produce steel fire doors in custom sizes and colors?
A: Yes. Custom dimensions, RAL colors, glazed options and hardware configurations are available. Please provide your opening sizes for a precise quote.
Q: Do you support OEM/ODM orders?
A: Yes, we support OEM branding, custom packaging and documentation.
Q: What is the delivery time?
A: Standard lead time is 15-30 after deposit and drawing confirmation. Urgent orders can be arranged on request.
Q: Do you provide installation instructions and technical support?
A: Yes, each order includes installation manuals and drawings. Remote video guidance is available, and on-site installation supervision can be arranged for large projects.
Q: Can I get samples before placing a bulk order?
A: Samples are available. Sample cost will be refunded or deducted from the bulk order value once the order is confirmed.
