Outward Opening Aluminum Casement Window Reliable EPDM Sealing For Villa Exterior Wall Installation

Product Description

We are a professional manufacturer of aluminum outward opening windows, the space-saving casement solution that opens fully outward without occupying any interior space. Featuring 6060-T6 thermal break profiles, multi-chamber construction and multi-point locking hardware with four-bar friction hinges, our outward windows provide maximum ventilation, excellent sealing and reliable security. Available in side-hung and top-hung opening styles, fully customizable in size, color and glazing. NFRC certified, OEM/ODM supported. Contact us for a quotation, or send your drawings for a custom quote.

Key Features

1. Maximum Ventilation — the sash opens fully outward, bringing fresh air into the room while occupying no interior space.

2. Space-Saving Design — the window swings outward, keeping curtains, blinds and floor space completely free.

3. Reliable Outward Hardware — four-bar friction hinges hold the sash firmly at any open position; an optional restrictor limits the opening angle for safety.

4. Multi-Point Locking Security — locking points around the sash perimeter resist prying, with optional safety locks.

5. Thermal Break Energy Efficiency — PA66GF25 thermal break strips and multi-chamber profiles achieve a U-Factor as low as 1.0 W/(m²·K).

6. Excellent Sealing — multi-seal EPDM gaskets deliver Class 8 air permeability and Class 6 water tightness.

7. Weather Resistance — press-sealed gaskets with a proper drainage system keep out wind and rain.

8. Full Customization — size, color, glazing and hardware fully customizable; OEM/ODM supported.

Specifications

Materials & Finish

• Aluminum profiles: 6063-T5 aluminum alloy — high tensile strength, corrosion resistant, long service life
• Surface finishes: anodizing (AA15–AA25), powder coating (≥ 60μm), PVDF coating, wood/stone grain transfer — strong adhesion, weather and UV resistant
• Thermal break strips: PA66GF25 nylon (14.8–34.8mm) — high strength, stable insulation performance
• Gaskets: EPDM composite gaskets, -40°C to 120°C, aging resistant

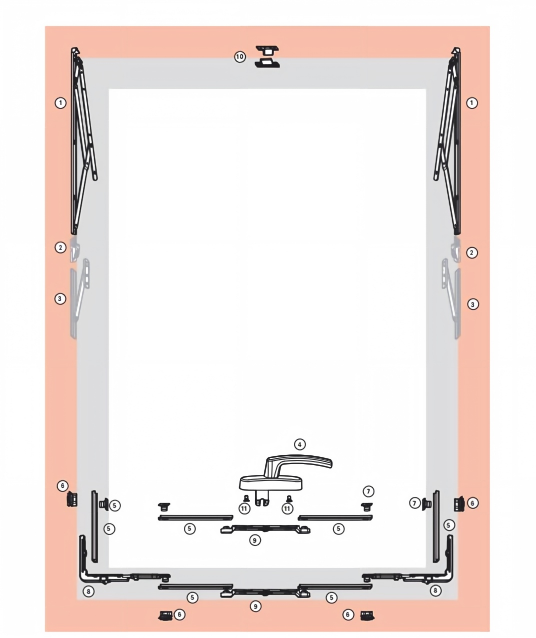

• Hardware: four-bar friction hinges, multi-point locking espagnolette, zinc alloy handles, optional restrictor and safety chain
• Glass: automotive-grade float glass; tempered, laminated, Low-E, argon-filled IGUs optional
• Processing: CNC cutting (±0.5mm accuracy), corner crimping with adhesive, complete assembly and opening/closing test of every window

Assembly & Installation

Installation steps:

• Measure the opening — verify actual opening dimensions, level and plumb
• Install the frame — fix with expansion bolts / connectors; adjust level and plumb to within 2mm
• Hang the sash — install the sash on the four-bar friction hinges and adjust for smooth outward opening and tight closure
• Waterproofing — fill gaps between frame and wall with foam, apply weather-resistant sealant with a drainage slope; ensure drainage holes are unobstructed
• Final adjustment — check opening angle, restrictor and locking points, remove protective film and clean

Applications

• Residential apartments — the common choice for low and mid-rise homes (keywords: outward opening window, side hung window)
• Villas & townhouses — outward casements with unobstructed views and full ventilation
• Schools & hospitals — full ventilation without interior obstruction

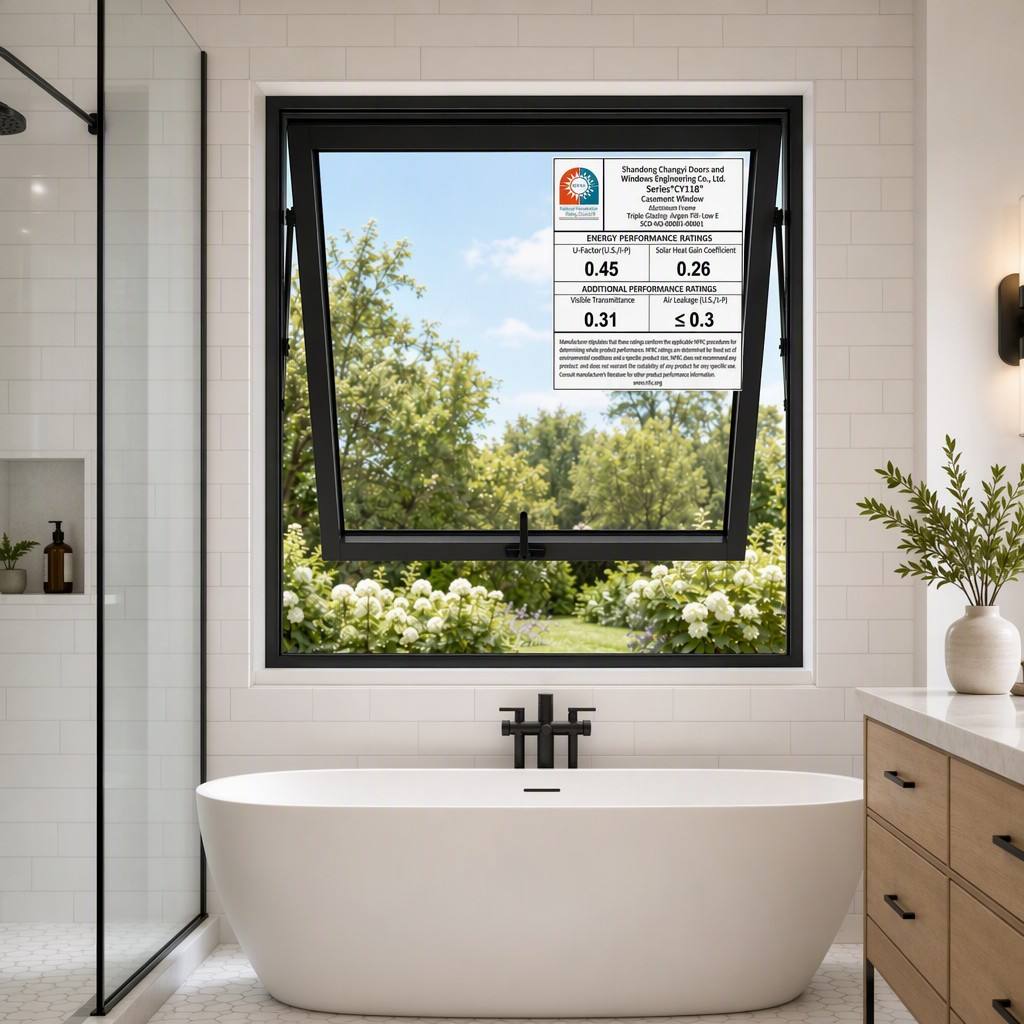

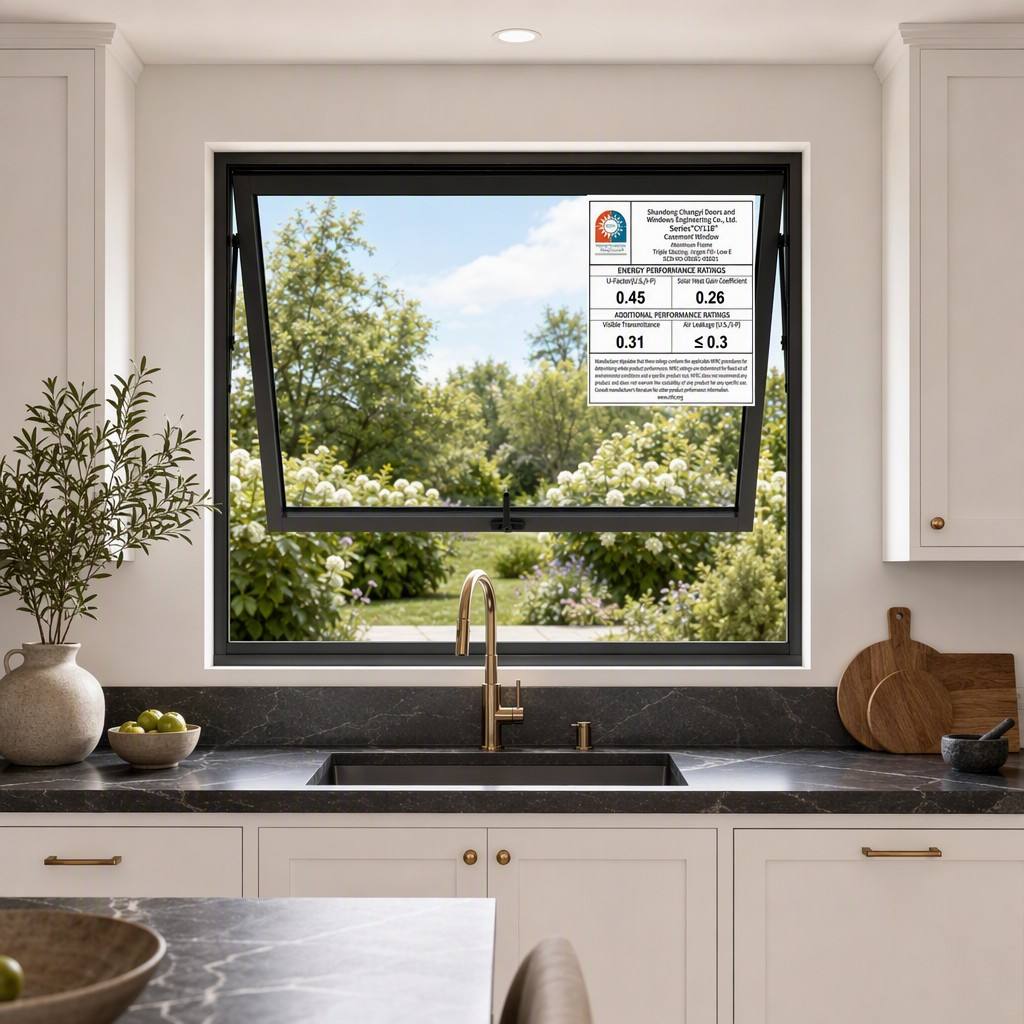

• Kitchens & bathrooms — large opening area for rapid air exchange
• Office & commercial buildings — reliable outward ventilation with multi-point security
• Renovation projects — replace old steel or wooden windows with aluminum outward casements
• Balcony & terrace windows — outward opening keeps interior space completely free
• Storefronts & shops — full-opening outward windows for display and ventilation

Customization

• Size: non-standard sizes produced from drawings; arched and special shapes available
• Color: per RAL chart; wood grain, stone grain, dual-color inside/outside
• Glazing: thickness, air space, Low-E, laminated, tempered, frosted, built-in blinds
• Opening style: side-hung outward / top-hung outward / fixed + outward combinations
• Hardware: handle and lock type, restrictor, safety chain, optional insect screen
• OEM/ODM service: private label, logo printing, custom packaging, new products developed from customer drawings

Certifications

• Compliant with GB/T 8478 Aluminum Alloy Windows national standard
• ISO 9001:2015 quality management system certified
• CE certified (EU market)

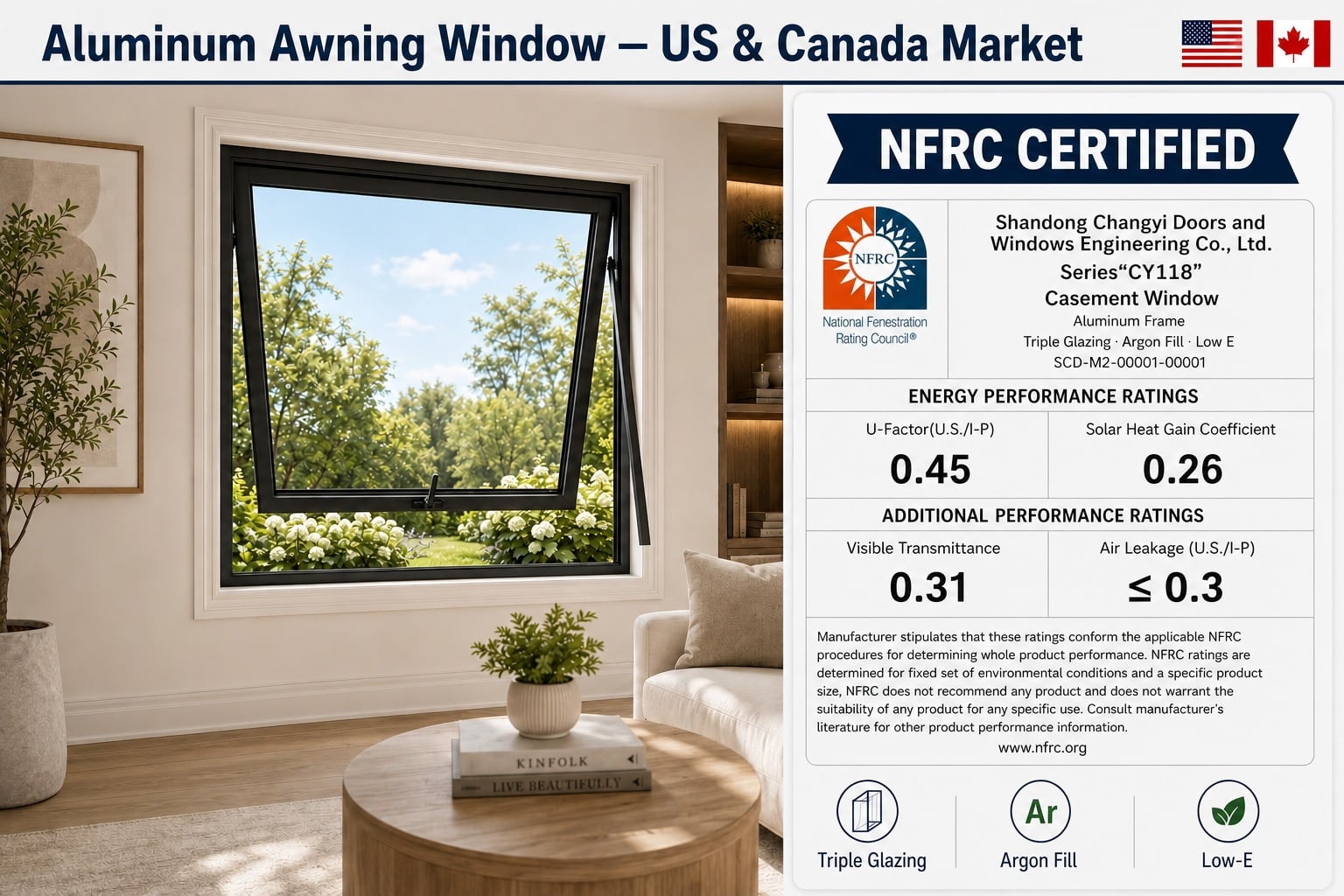

• NFRC energy performance certified (North America)
• Third-party test reports from SGS / TÜV available on request
• Factory QC: each batch ships with an inspection certificate

Packing & Logistics

• Inner packing: each window wrapped in EPE foam with protective film
• Outer packing: heavy-duty carton or wooden crate with reinforced corners for long sea freight
• Export crates: fumigation optional, compliant with ISPM 15
• Lead time: 15–25 days standard, 25–35 days custom (subject to order confirmation)
• Shipping: FCL / LCL by sea, air freight, international express
• Trade terms: FOB / CIF / EXW / DDP
• Loading port: 【Qingdao Port】

Product Video

• 360° product showcase (30s) — full window appearance and opening demonstration
• Outward opening demo (30s) — friction hinges, restrictor and locking demonstration
• Installation walkthrough (60–90s) — frame fixing, sash hanging and waterproofing
• Performance test footage — air, water and wind load tests
• Factory production line — CNC machining, assembly, hardware fitting, QC process
• Project case footage — installed windows and customer feedback

Reviews & Cases

Sample reviews:

• The window opens fully outward and the ventilation is excellent. The restrictor keeps it safe even with kids around.
• Ordered 300 units for a school project. Hinges are strong, sealing is tight and installation went smoothly.
• Replaced old steel windows with these outward casements. The room feels brighter and the windows operate very smoothly.

Case template:

Project name: Coastal Villa Complex Aluminum Outward‑Opening Window Project

Location: Brisbane, Australia

Scale: 1280 m² window area / 426 units

Configuration: 112 series thermally broken aluminum profile + 5+24A+5 Low‑E insulated tempered glass + German brand outward opening hardware

Customer feedback: Windows perform well against coastal strong wind and salt spray, thermal insulation meets local energy‑saving requirements.

Service

• Samples: free sample windows available before ordering
• Design support: free drawing review, hardware selection and wind load calculation
• Quick response: inquiries replied within 24 hours; after-sales issues within 48 hours
• Warranty: 3 years on profile structure, 5 years on hardware (per company policy)
• Installation support: installation video and manual provided; on-site technical guidance available
• After-sales: long-term spare parts supply, lifetime parts service
• Quality commitment: every window inspected before shipment; no defective products leave the factory

FAQ

Q1: Can an outward opening window be used on high floors?

A: Outward opening windows are best suited to low and mid-rise buildings. For upper floors, a restrictor or safety chain can limit the opening angle, or tilt & turn windows are recommended.

Q2: What is the difference between outward and inward opening windows?

A: Outward windows open away from the room, saving interior space and allowing full opening for ventilation; inward windows open into the room, making cleaning easier from inside.

Q3: How is the window cleaned?

A: Outward windows are cleaned mainly from outside. For high-rise buildings, we recommend inward opening or tilt & turn windows instead.

Q4: What is the minimum order quantity (MOQ)?

A: custom MOQ depends on configuration — confirm with our sales team.

Q5: What is the production lead time?

A: Around 15–25 days for standard windows and 25–35 days for custom orders; partial shipments can be arranged for large orders.

Q6: What is the maximum opening sash size?

A: Outward opening sashes are generally produced up to about 1200mm wide × 1800mm high, subject to hinge load capacity and wind load calculation.

Q7: Do you support OEM/ODM?

A: Yes. We offer private label, logo printing, custom packaging, and new product development from customer drawings.

Q8: What is the warranty? How is after-sales handled?

A: 3 years on profile structure and 5 years on hardware. Report issues with photos and we will provide a solution within 48 hours.

Q9: What glazing options are available?

A: Double glazing, triple glazing, Low-E, laminated, tempered, frosted and built-in blinds. We can recommend the right configuration for your local climate.

Q10: How do you guarantee quality?

A: We use qualified suppliers for profiles, glass and hardware, run QC throughout production, and inspect every window before shipment with a certificate of conformity. Test reports are available.

Q11: Can I get a sample?

A: Yes. Samples / sample windows are available free or at cost (freight paid by customer); the sample fee is deductible from the first order.
