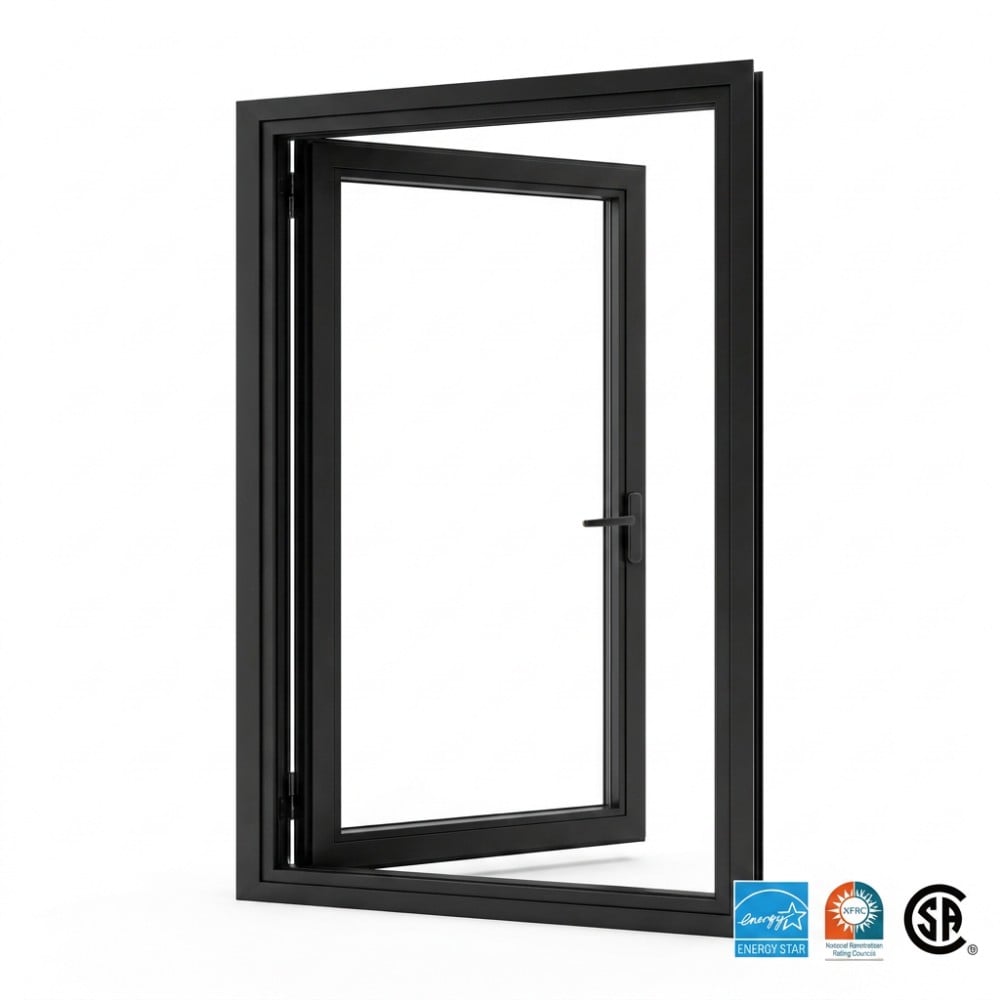

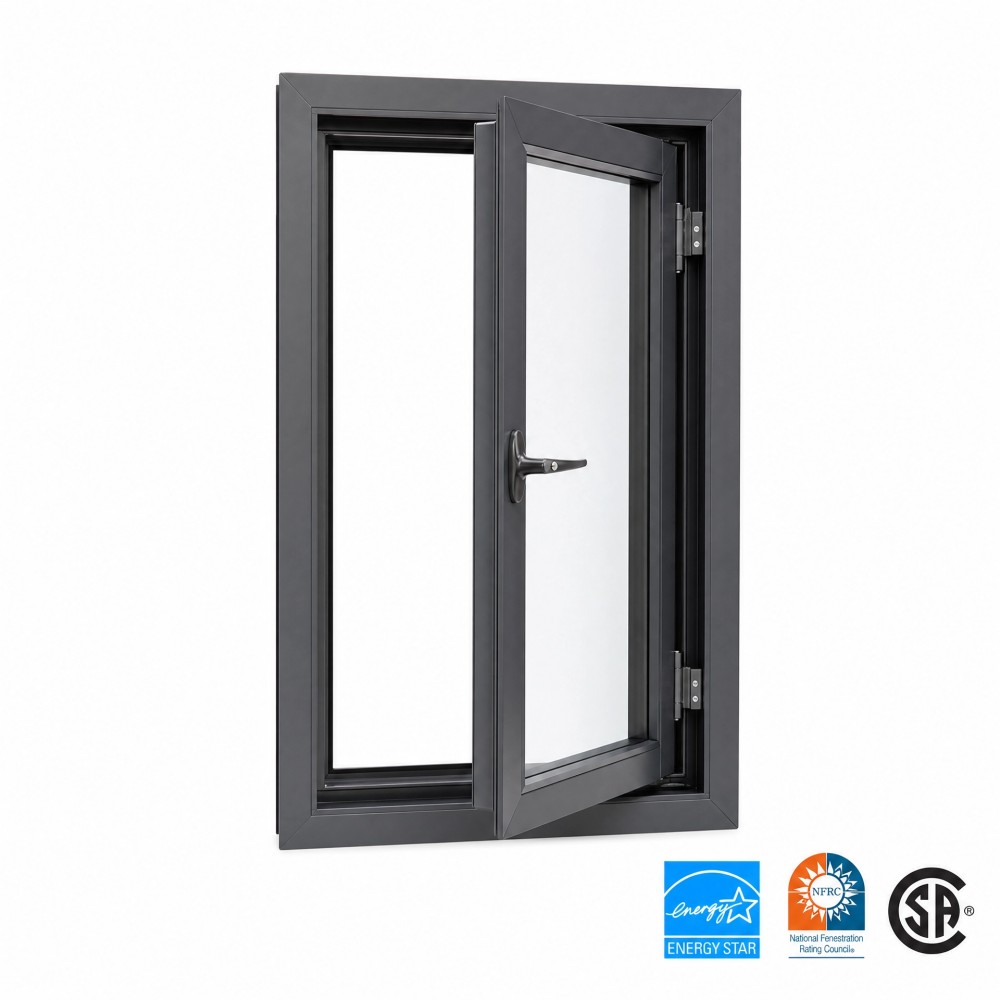

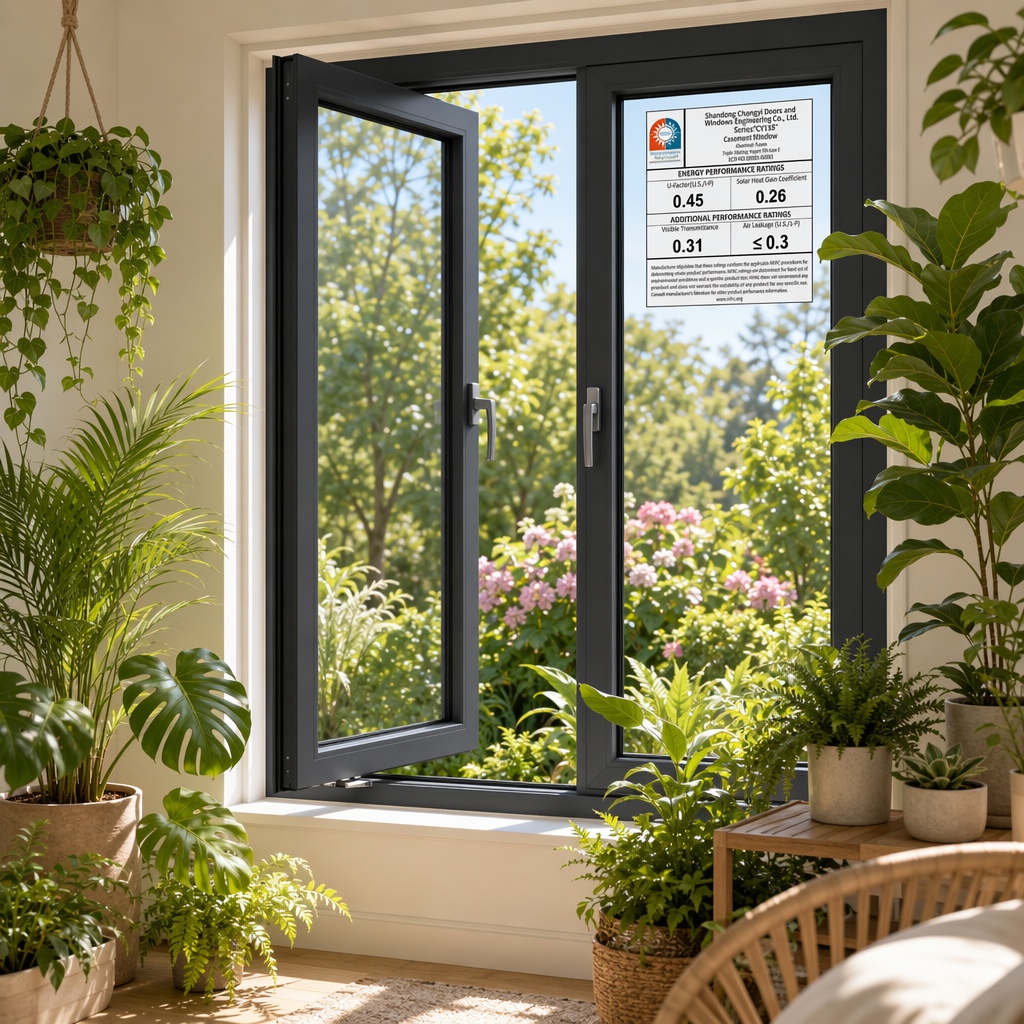

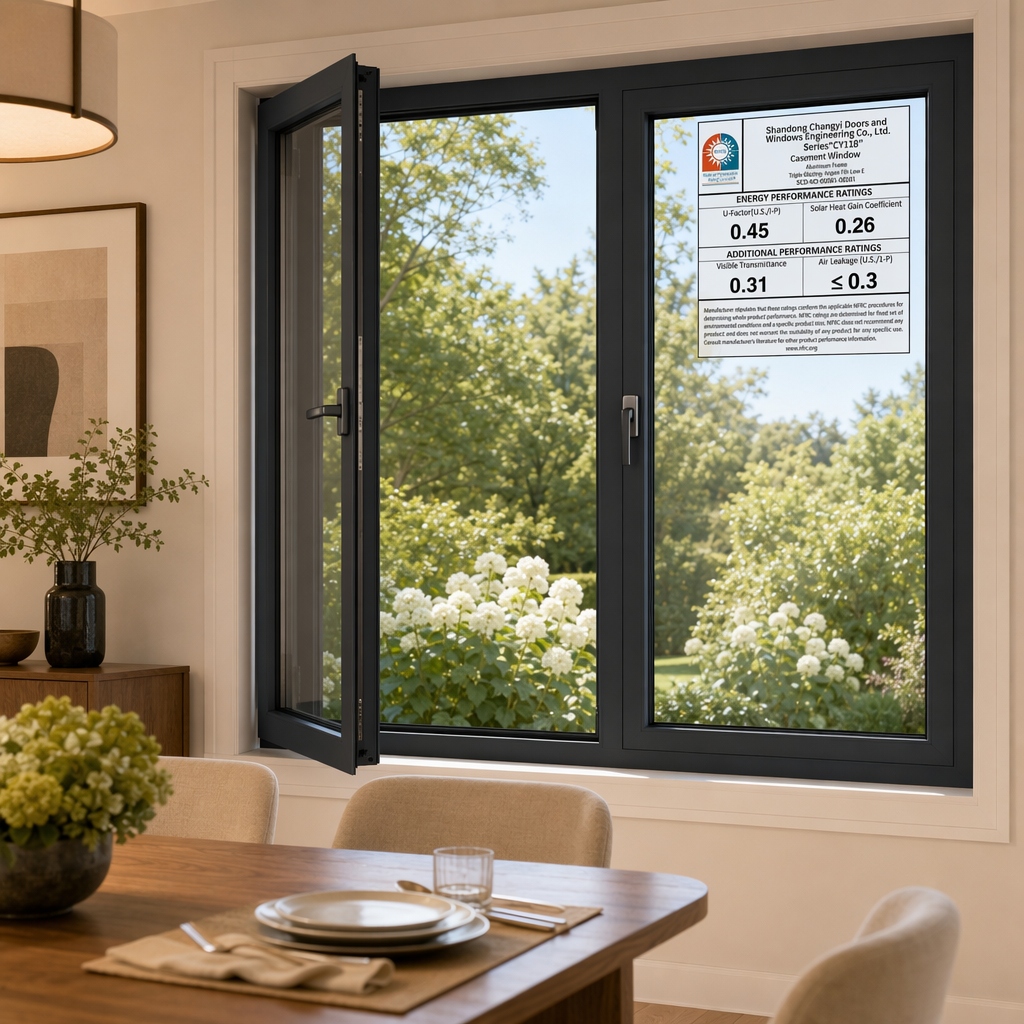

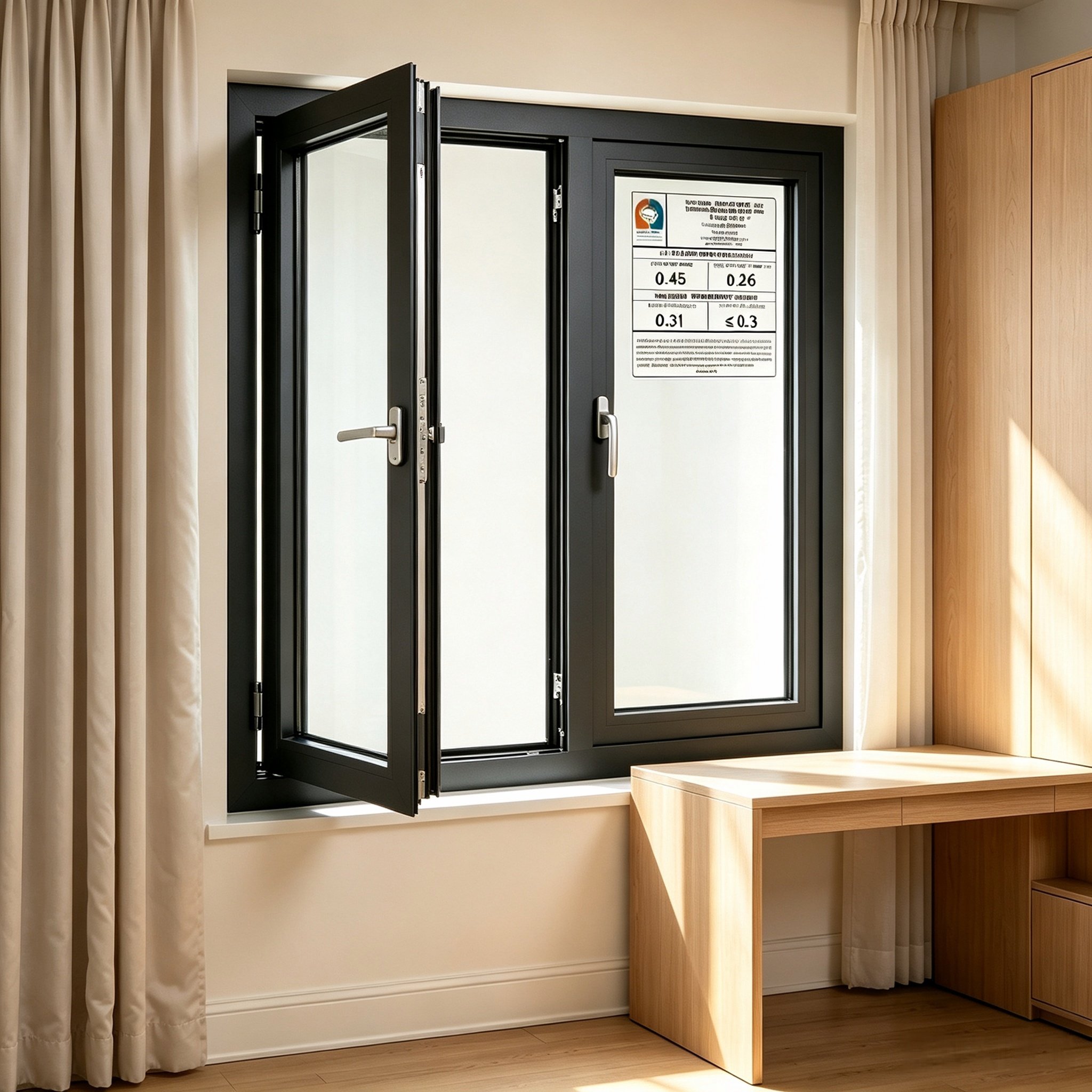

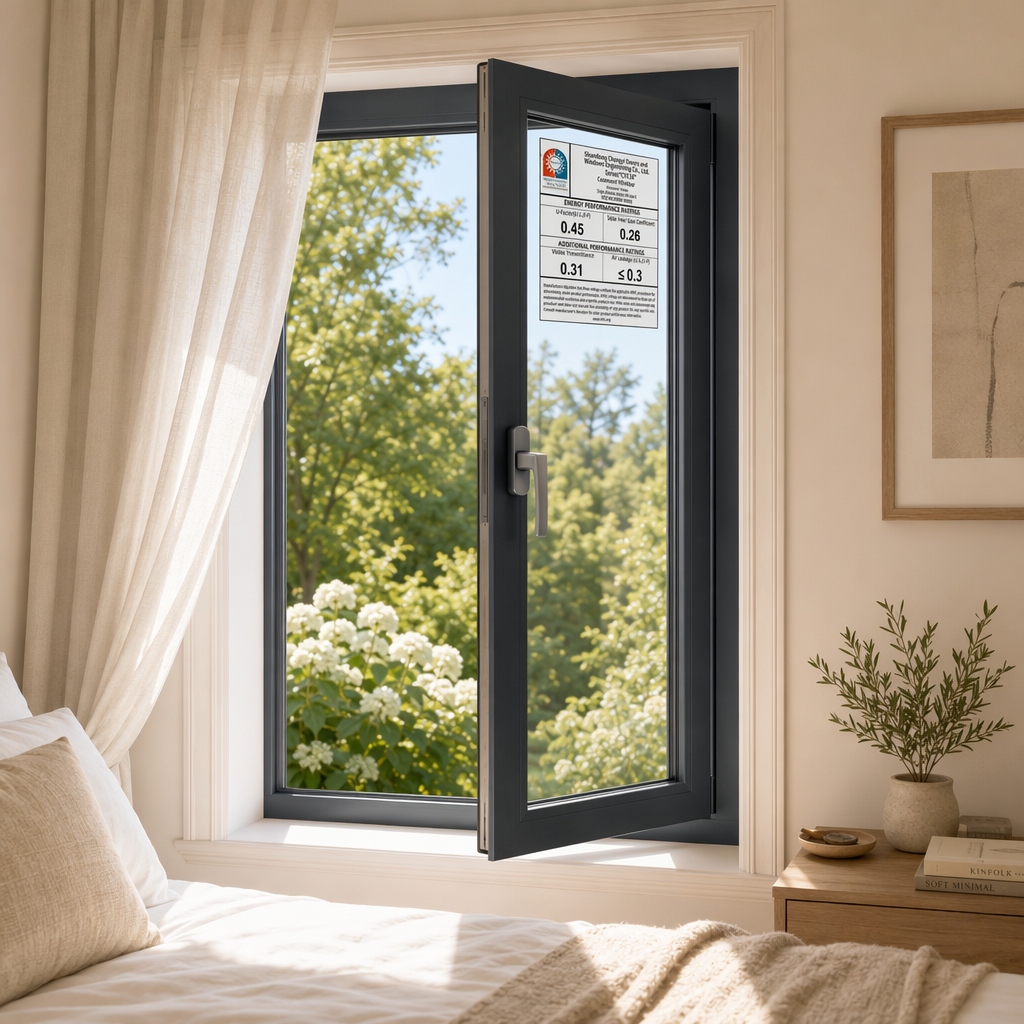

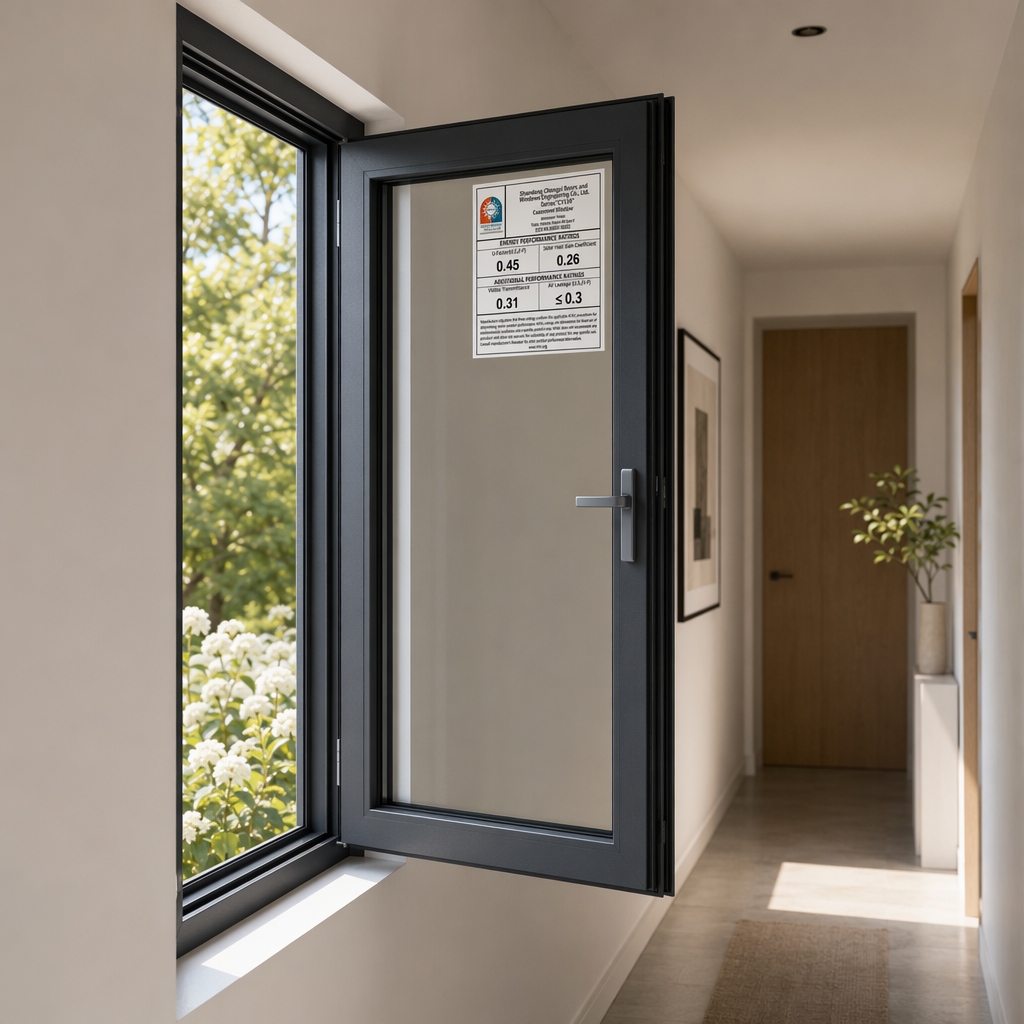

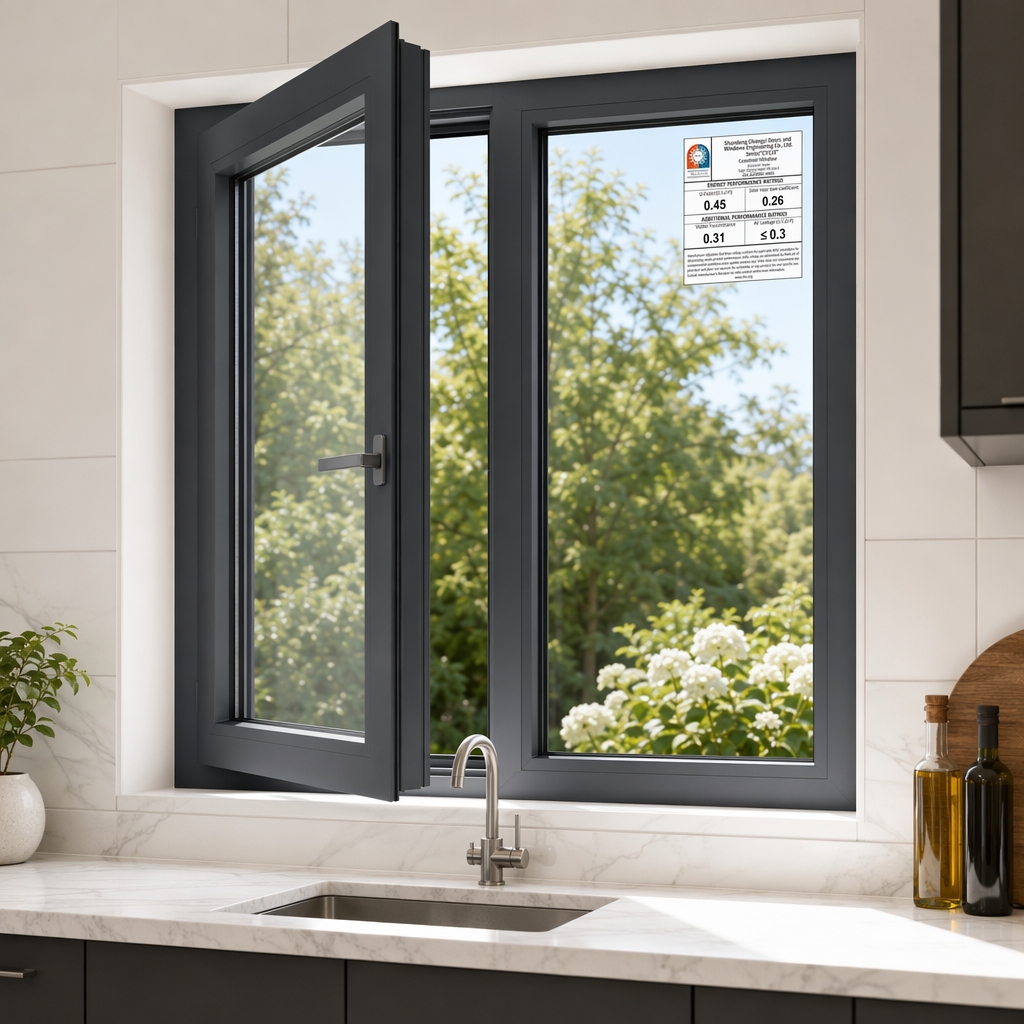

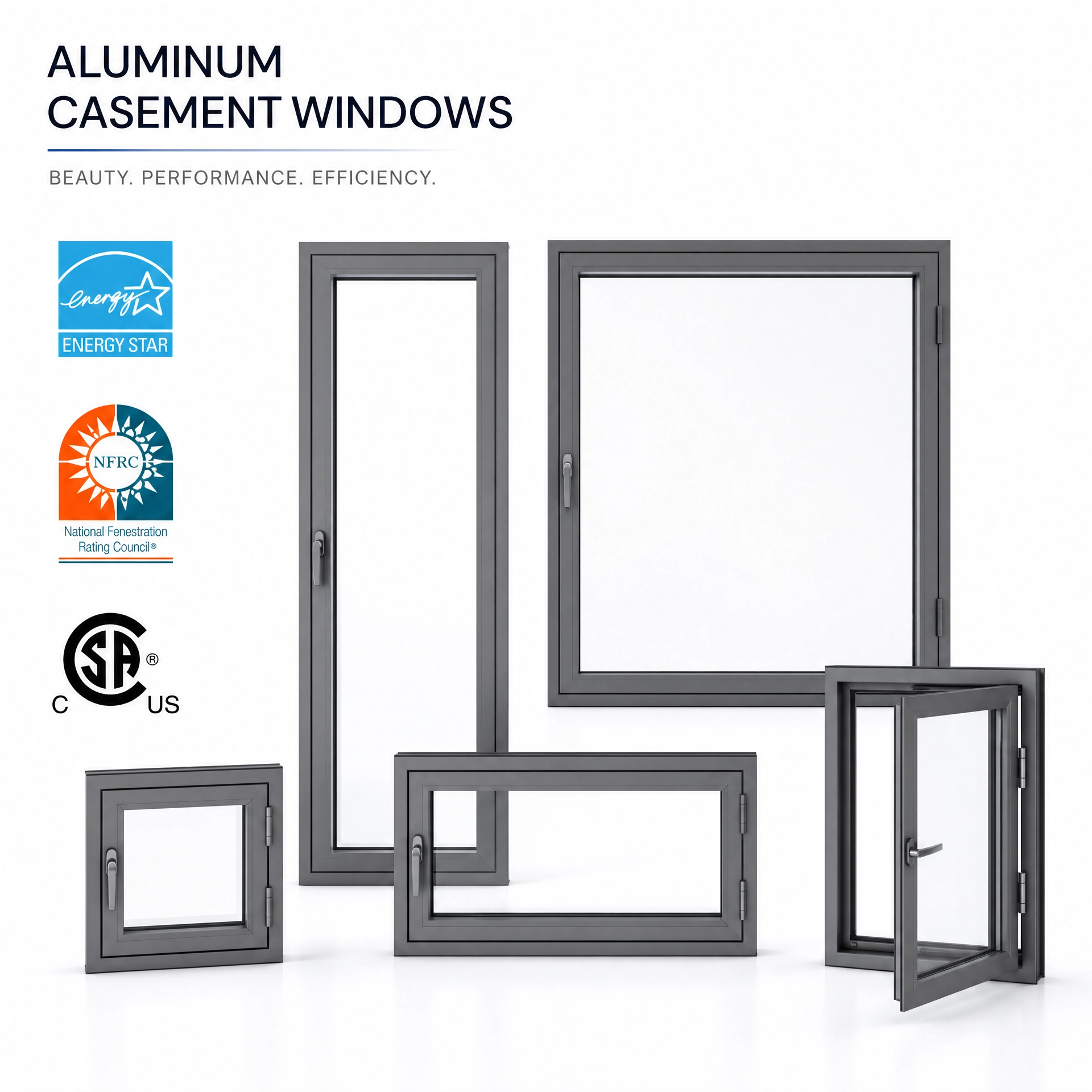

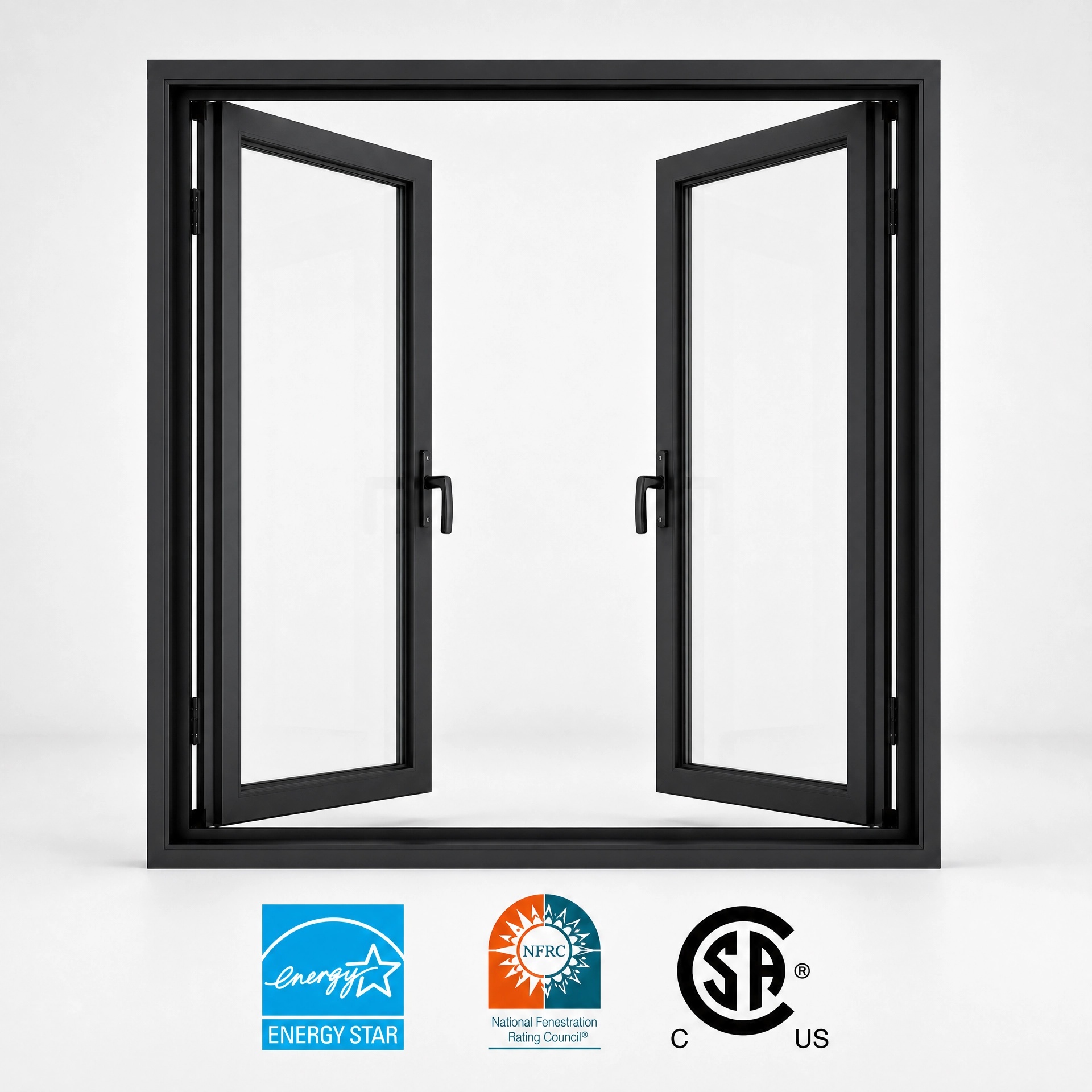

NFRC certification Custom Casement Window with Powder Coated Aluminum Frame, Thermal Break for Residential Exterior Design

Product Description

We are a professional manufacturer of aluminum casement windows, featuring 6060-T6 thermal break profiles, PA66 insulation strips and double glazing for excellent thermal, acoustic and weather performance. Available in inward, outward and tilt & turn opening styles, our windows are fully customizable in size, color, glazing and hardware, suitable for residential homes, villas, office buildings and renovation projects. Certified to NFRC certification, we support OEM/ODM production with stable lead times. Contact us for a quotation, or send your drawings for a custom quote.

Key Features

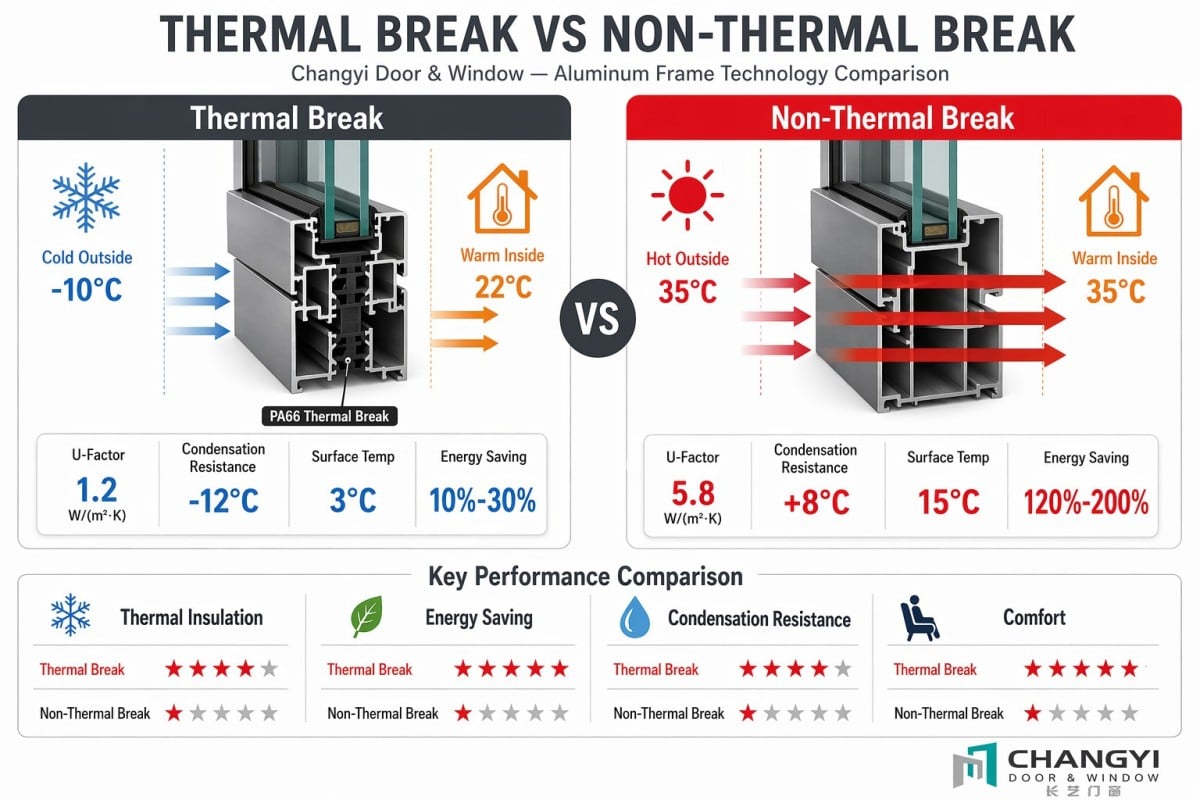

• Thermal Break Energy Efficiency — PA66GF25 thermal break strips + multi-chamber design deliver a whole-window U-Factor as low as 1.0–2.0 W/(m²·K), keeping rooms warm in winter and cool in summer while reducing HVAC costs.

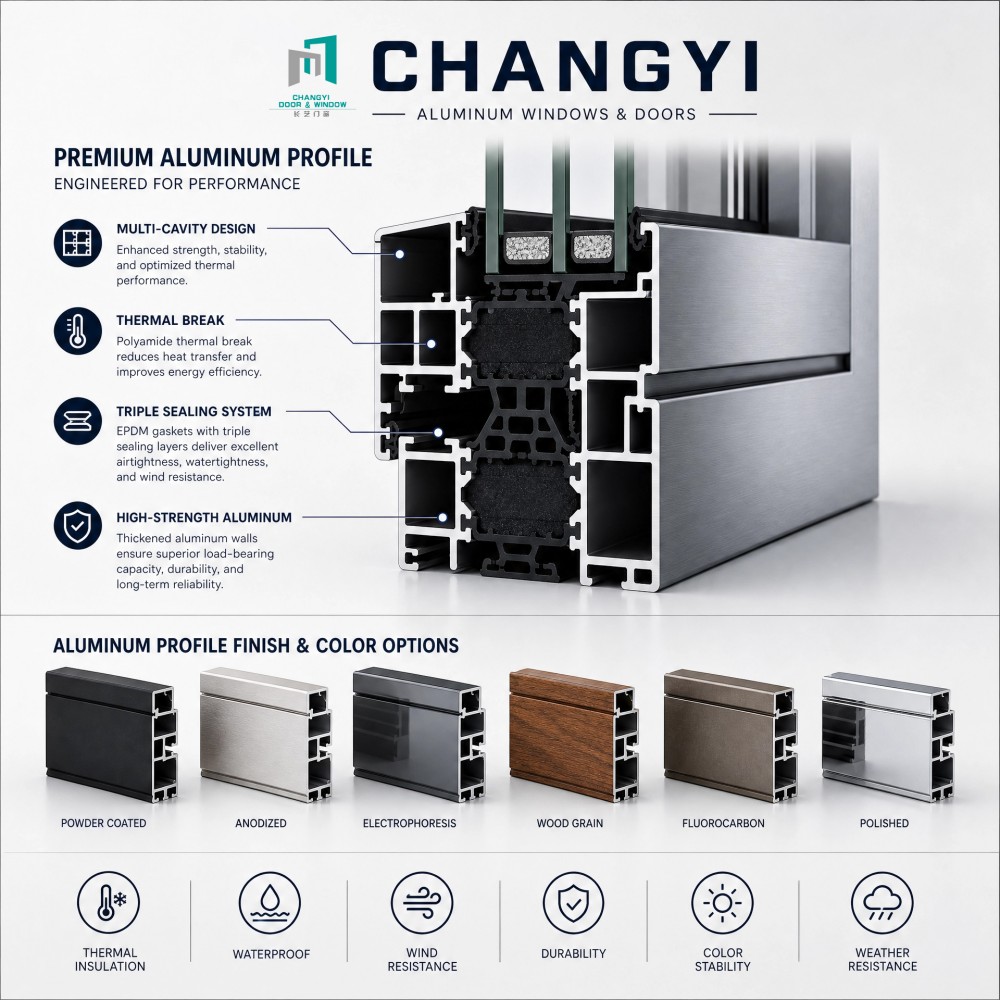

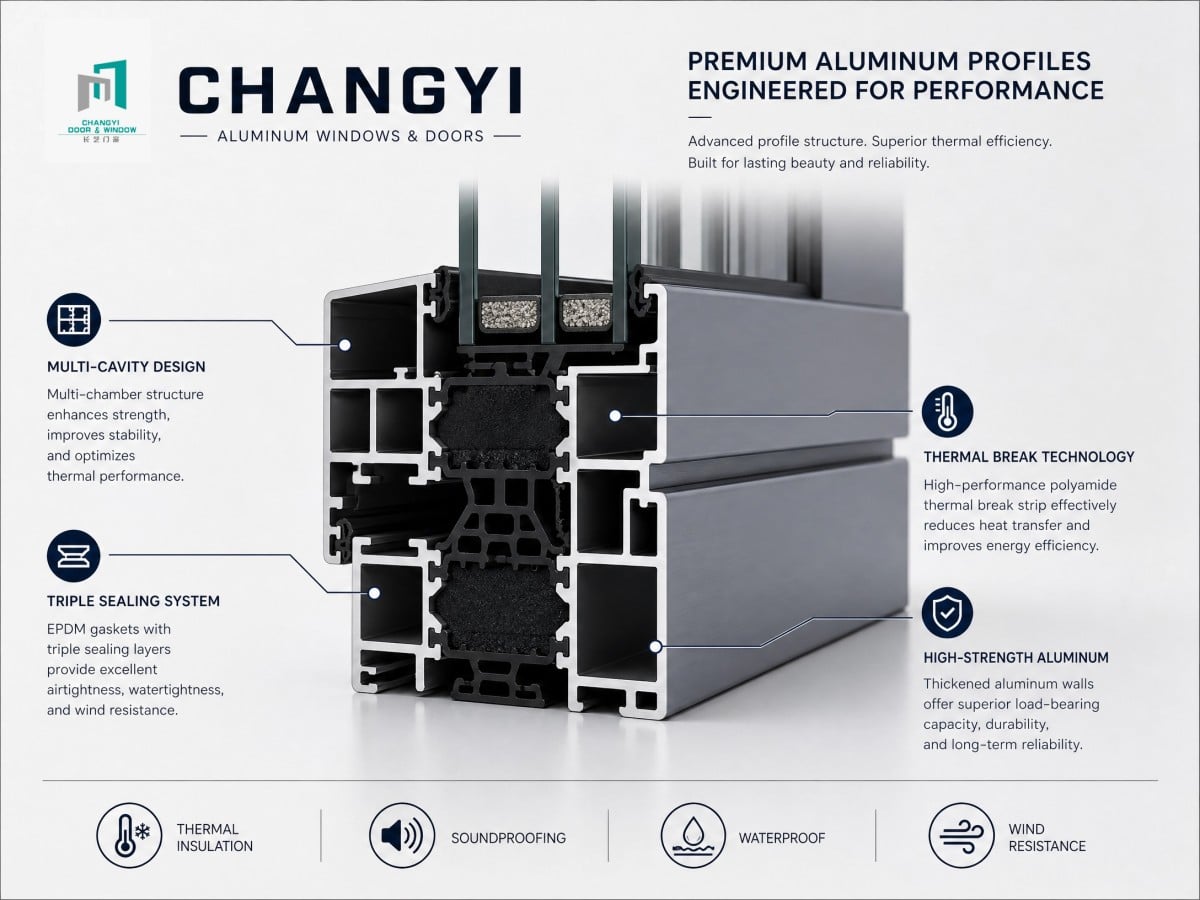

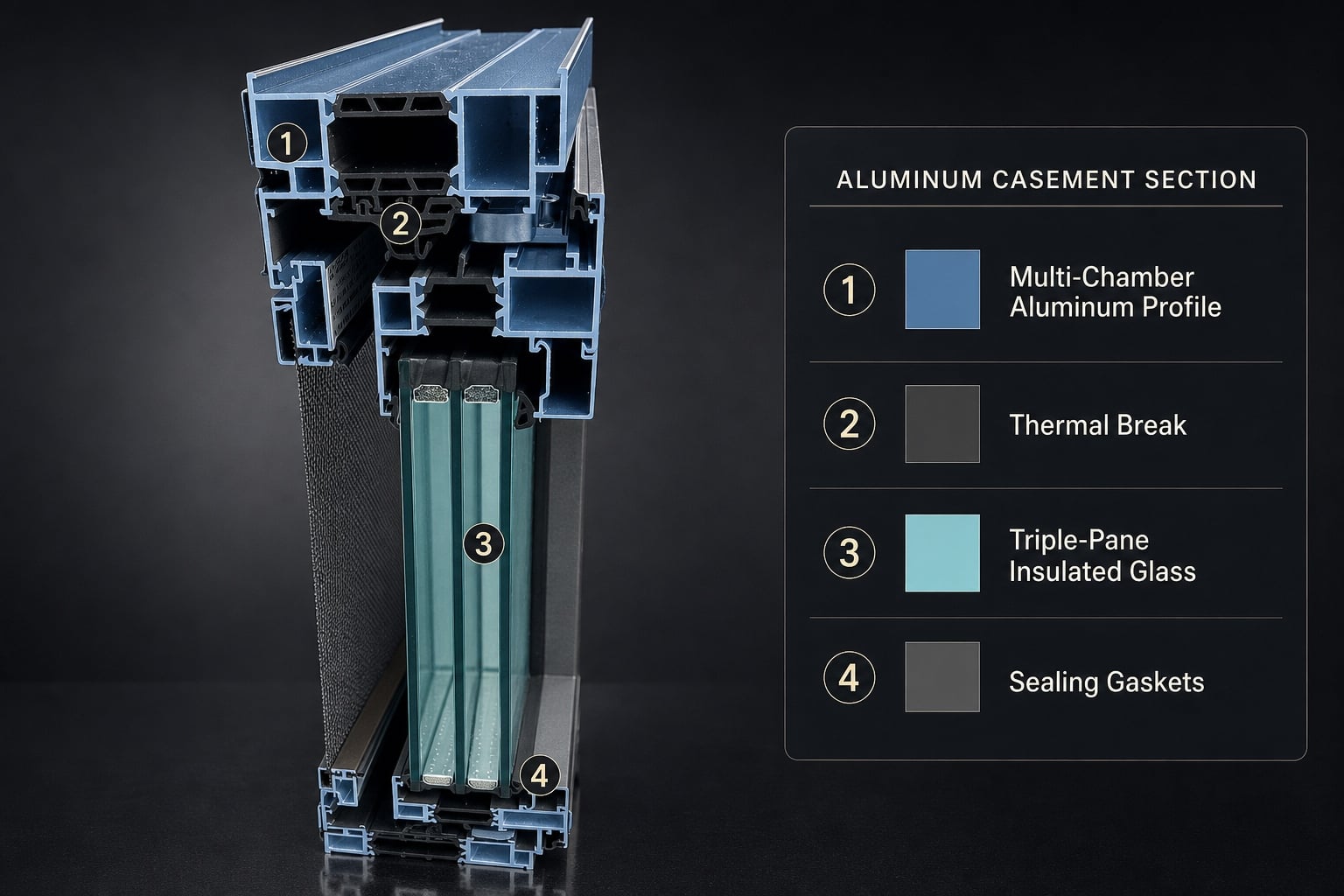

• Multi-Chamber Profile Design — 3–5 chambers combine strength with insulation; hidden drainage and pressure-equalization cavities prevent water leakage in heavy rain.
• Flexible Glazing Options — 5+12A+5 double glazing, triple glazing, Low-E / double-silver Low-E and argon gas filling to meet energy, acoustic and solar control needs.

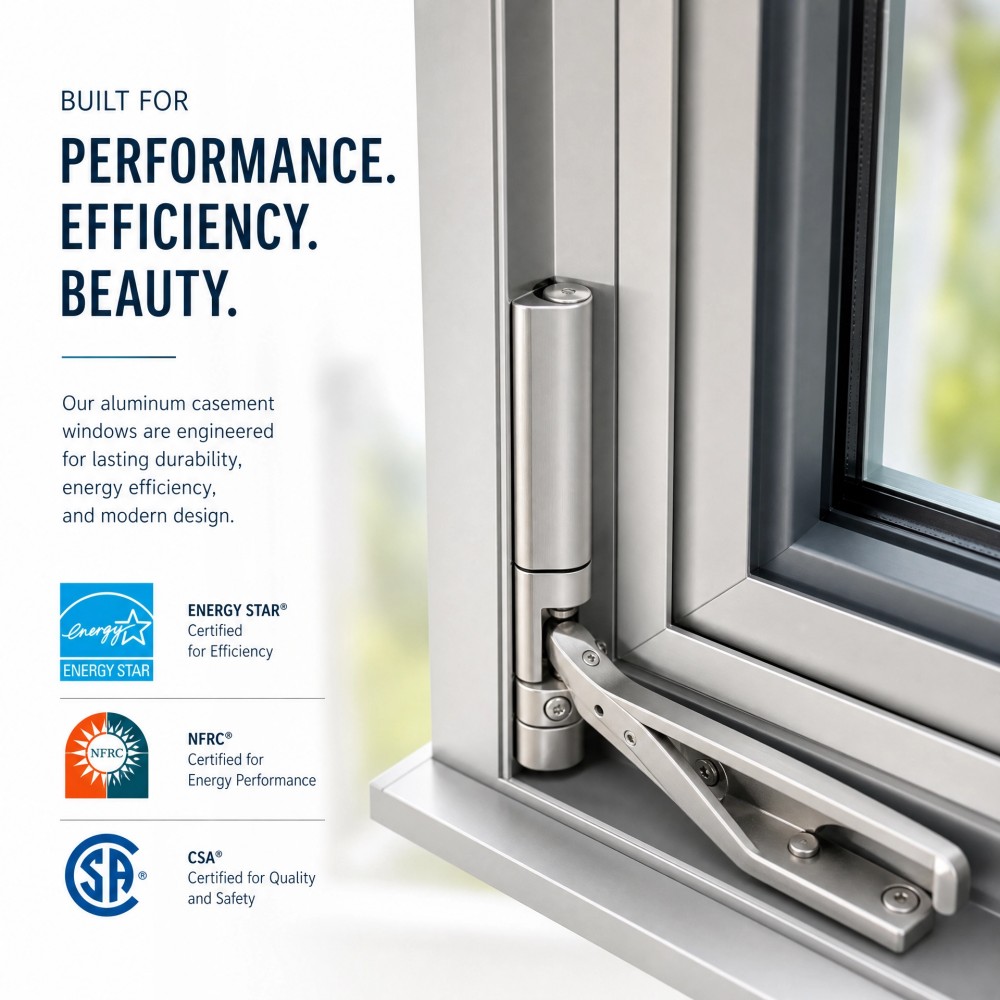

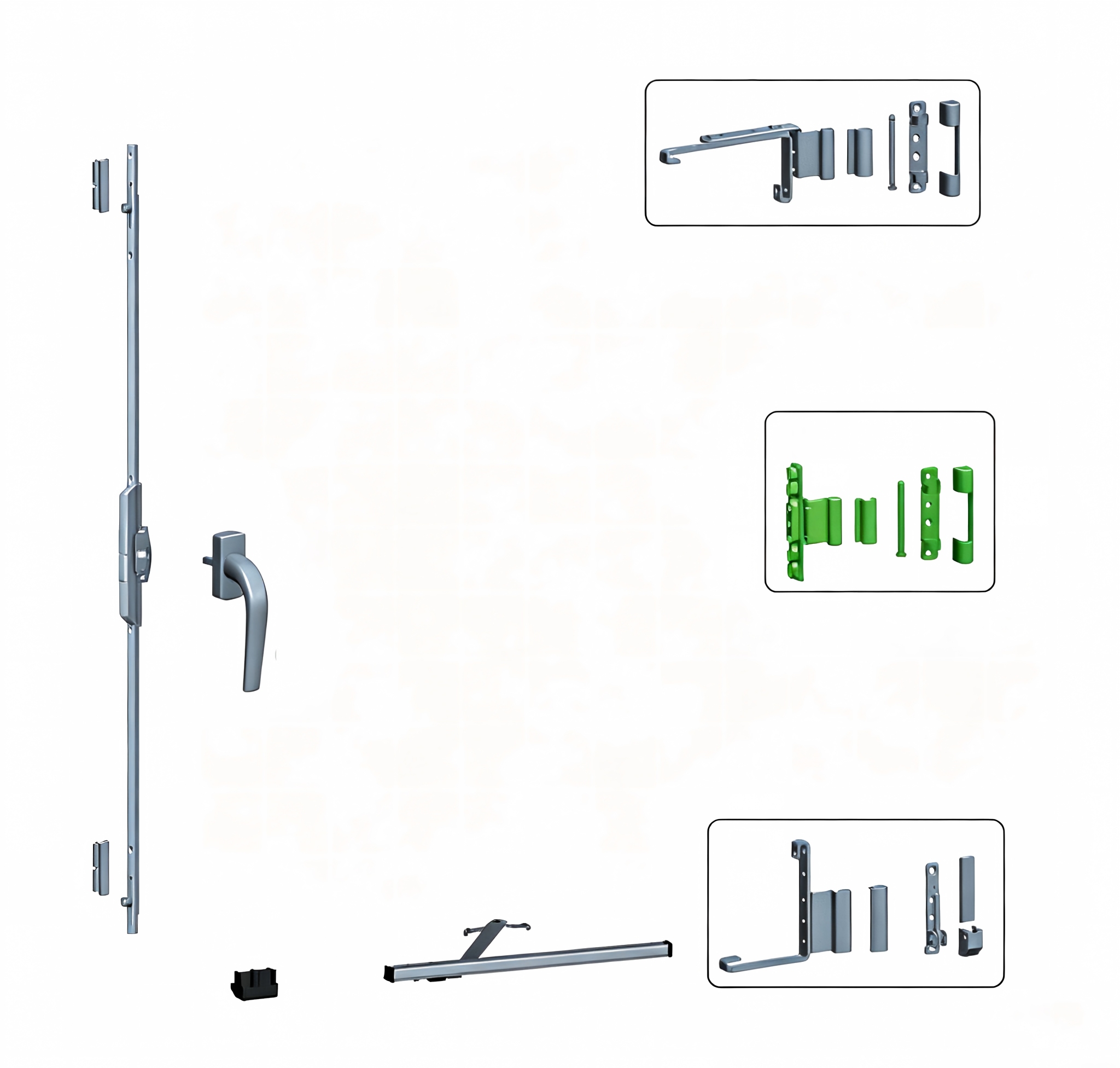

• Multi-Point Locking Hardware — 304 stainless steel hinges with multi-point locking for anti-theft security; ergonomic handles with smooth operation; tilt & turn mode for safe ventilation.

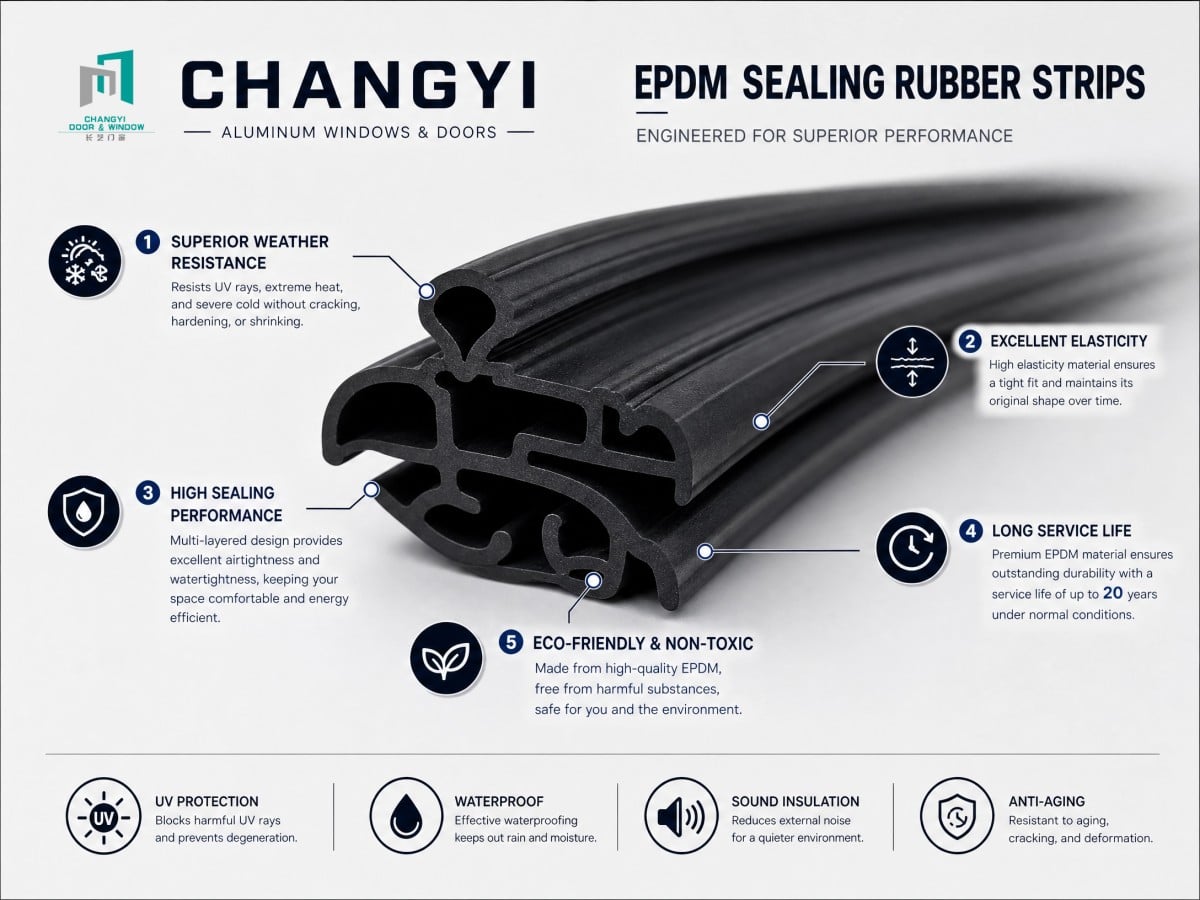

• Multi-Seal Gasket System — EPDM gaskets provide multi-seal protection with air permeability Class 8 and water tightness Class 6, keeping out dust, water and noise.
• Multiple Opening Styles — inward, outward, top-hung and tilt & turn options to suit different spaces and ventilation needs.

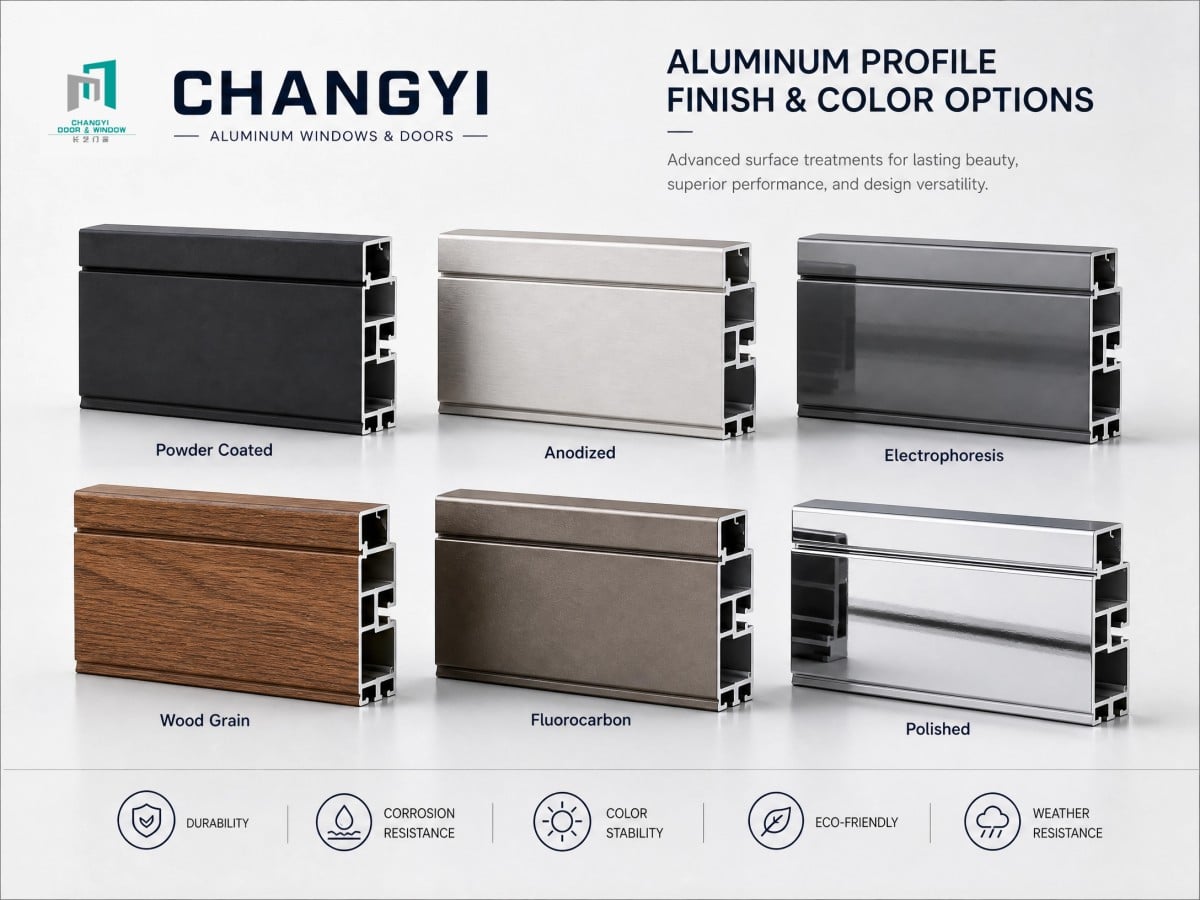

• Diverse Surface Finishes — anodizing, powder coating, PVDF coating and wood-grain transfer; colors customized per RAL chart, weather and UV resistant.
• Full Customization — size, color, glazing, hardware and opening style all customizable; OEM/ODM private label supported.

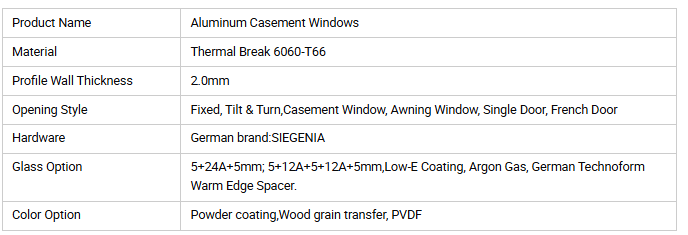

Specifications

Materials & Finish

• Aluminum profiles: 6060-T6 aluminum alloy — high tensile strength, corrosion resistant, long service life

• Surface finishes: anodizing (AA15–AA25), powder coating (≥ 60μm), PVDF coating, wood/stone grain transfer — strong adhesion, weather and UV resistant

• Thermal break strips: PA66GF25 nylon (14.8–34.8mm) — high strength, stable insulation performance

• Gaskets: EPDM composite gaskets, -40°C to 120°C, aging resistant

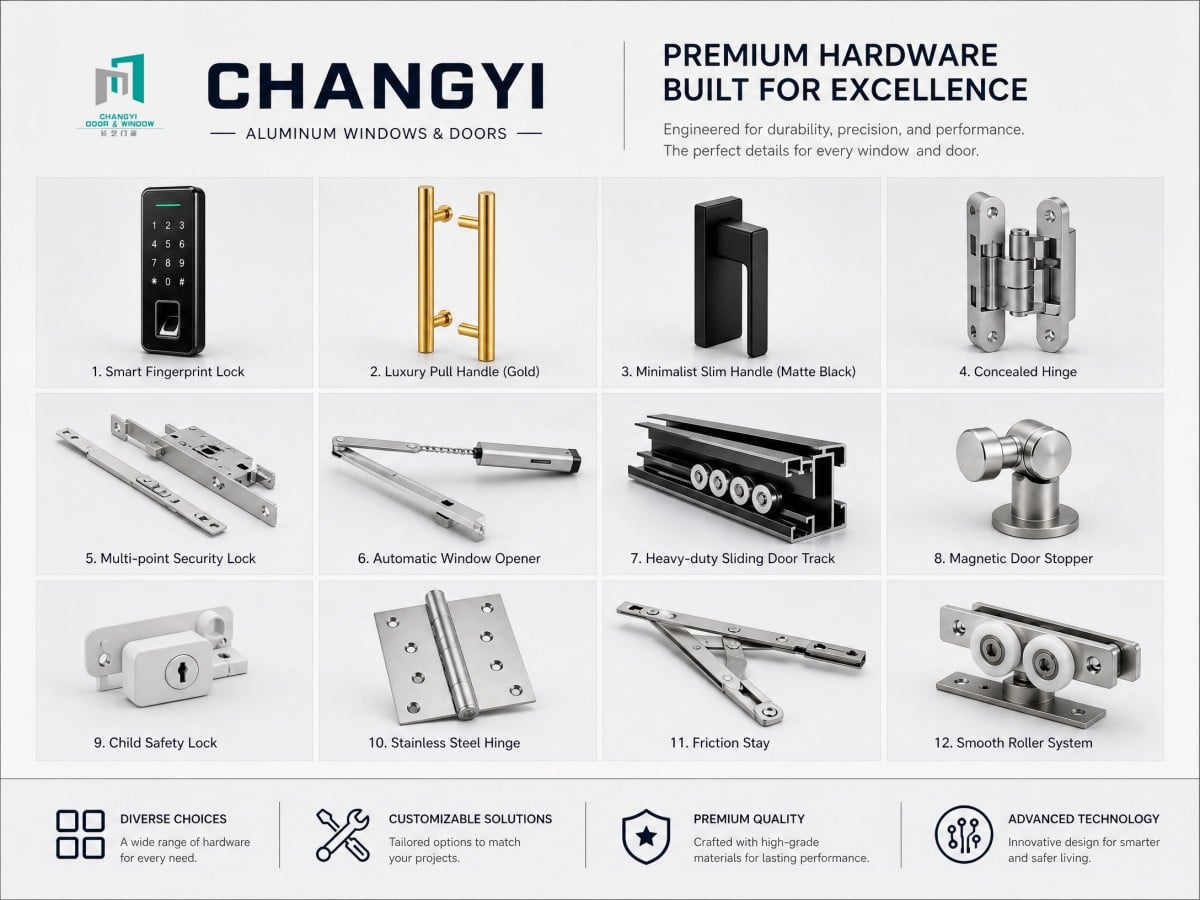

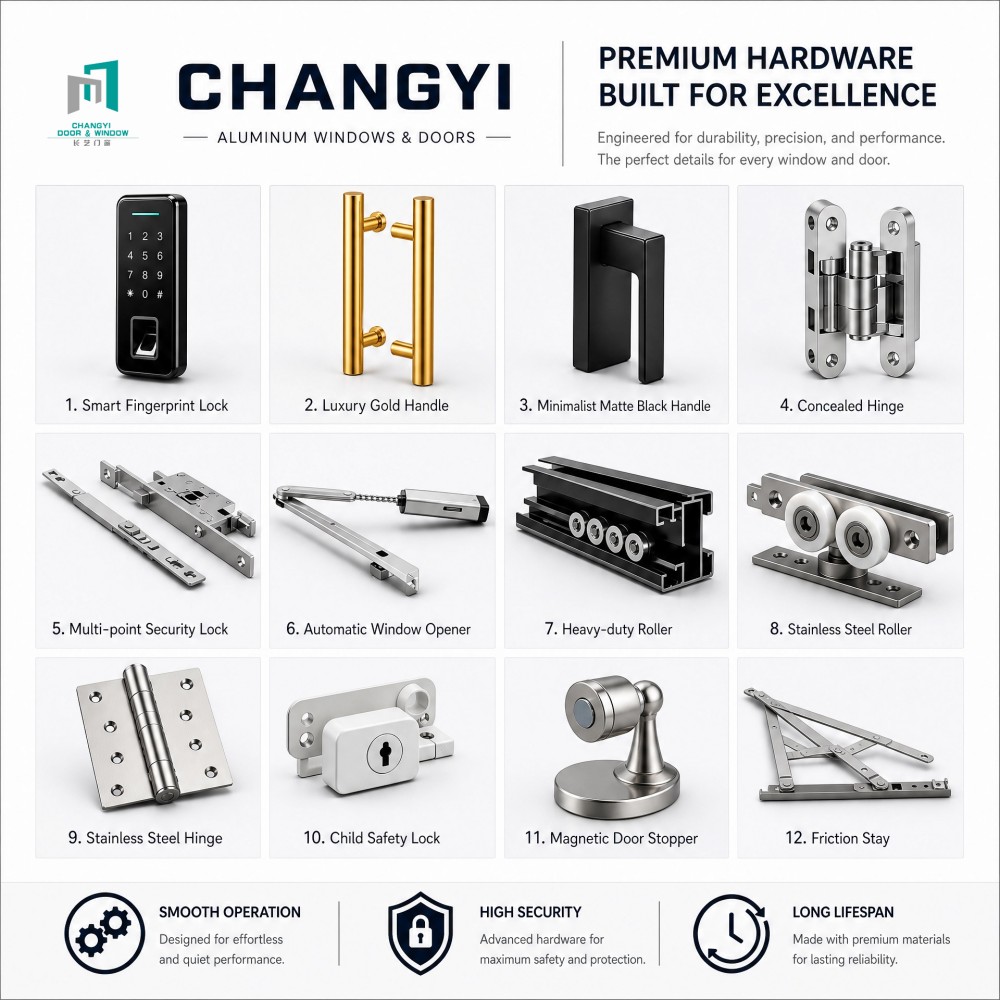

• Hardware: 304 stainless steel hinges, zinc alloy handles, multi-point locking system

• Glass: automotive-grade float glass; tempered, Low-E, laminated, argon-filled IGUs optional

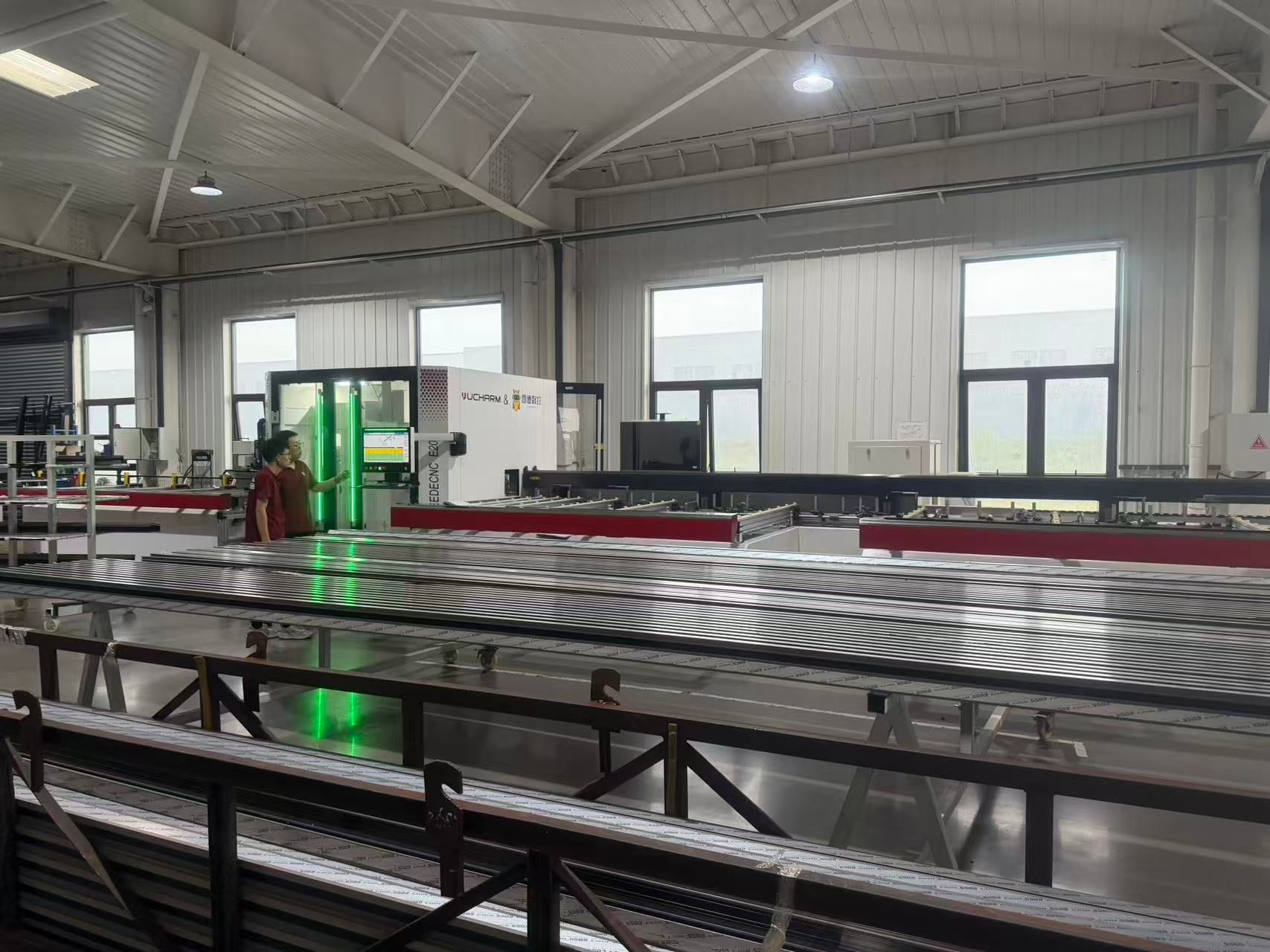

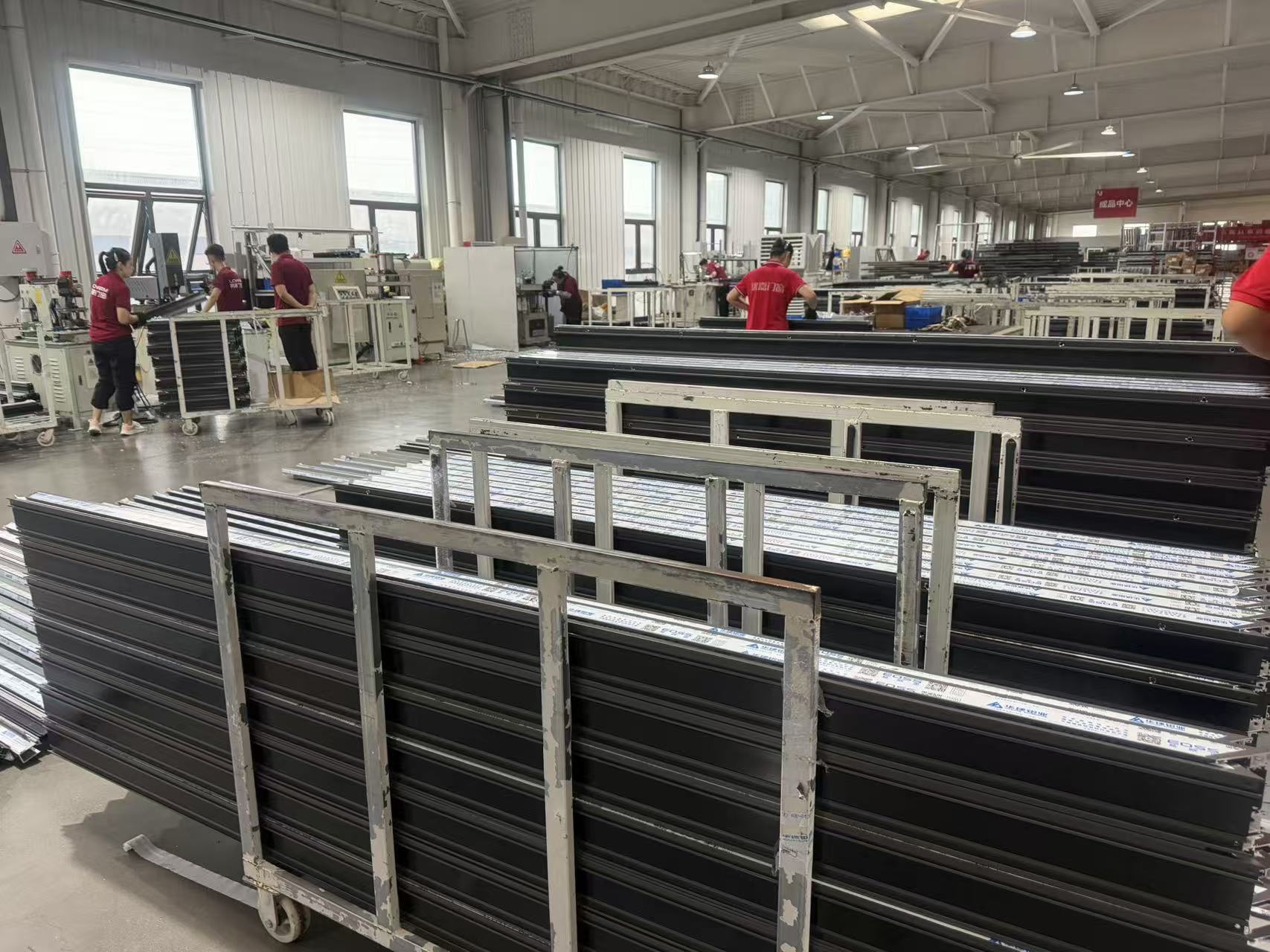

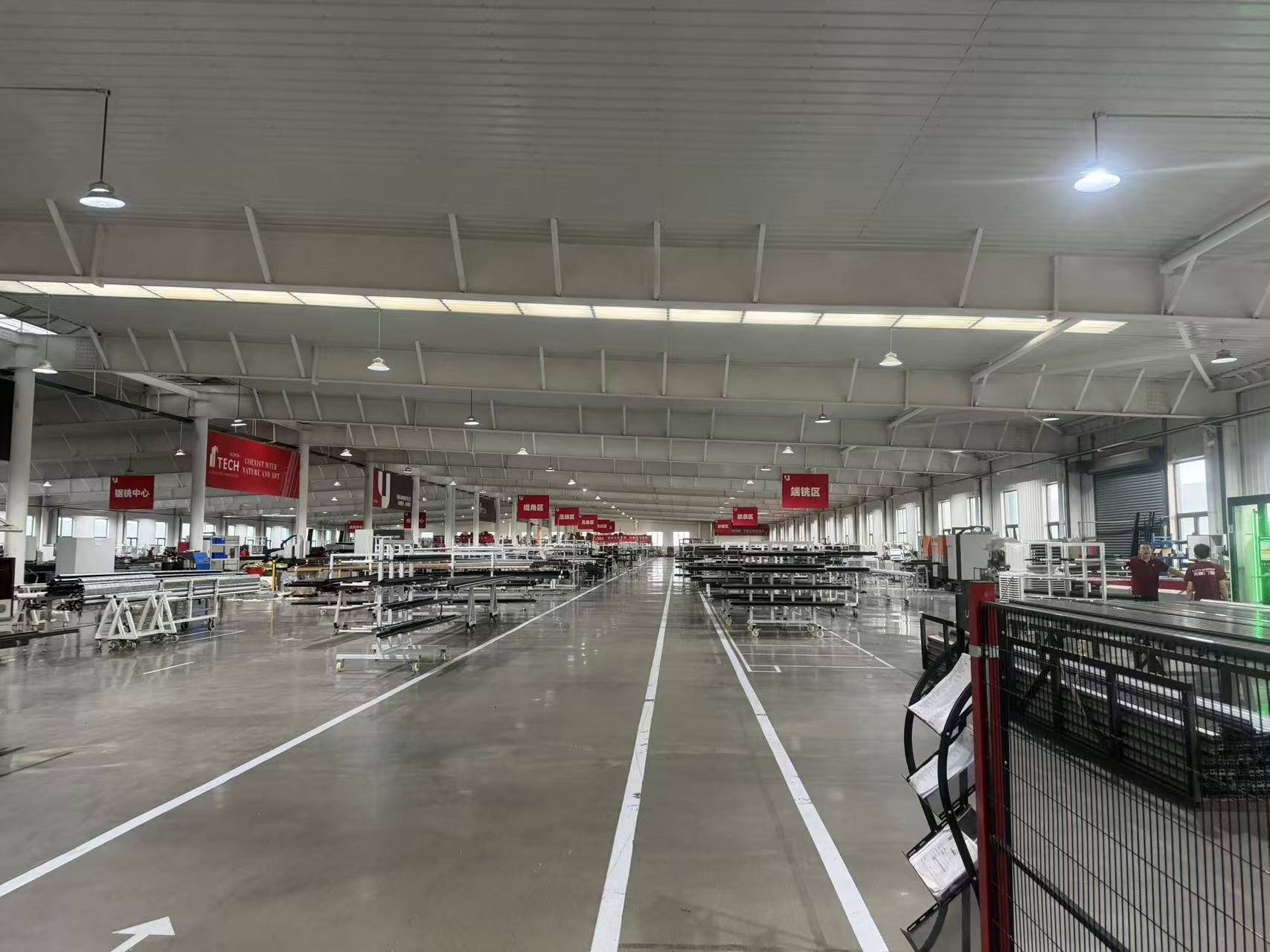

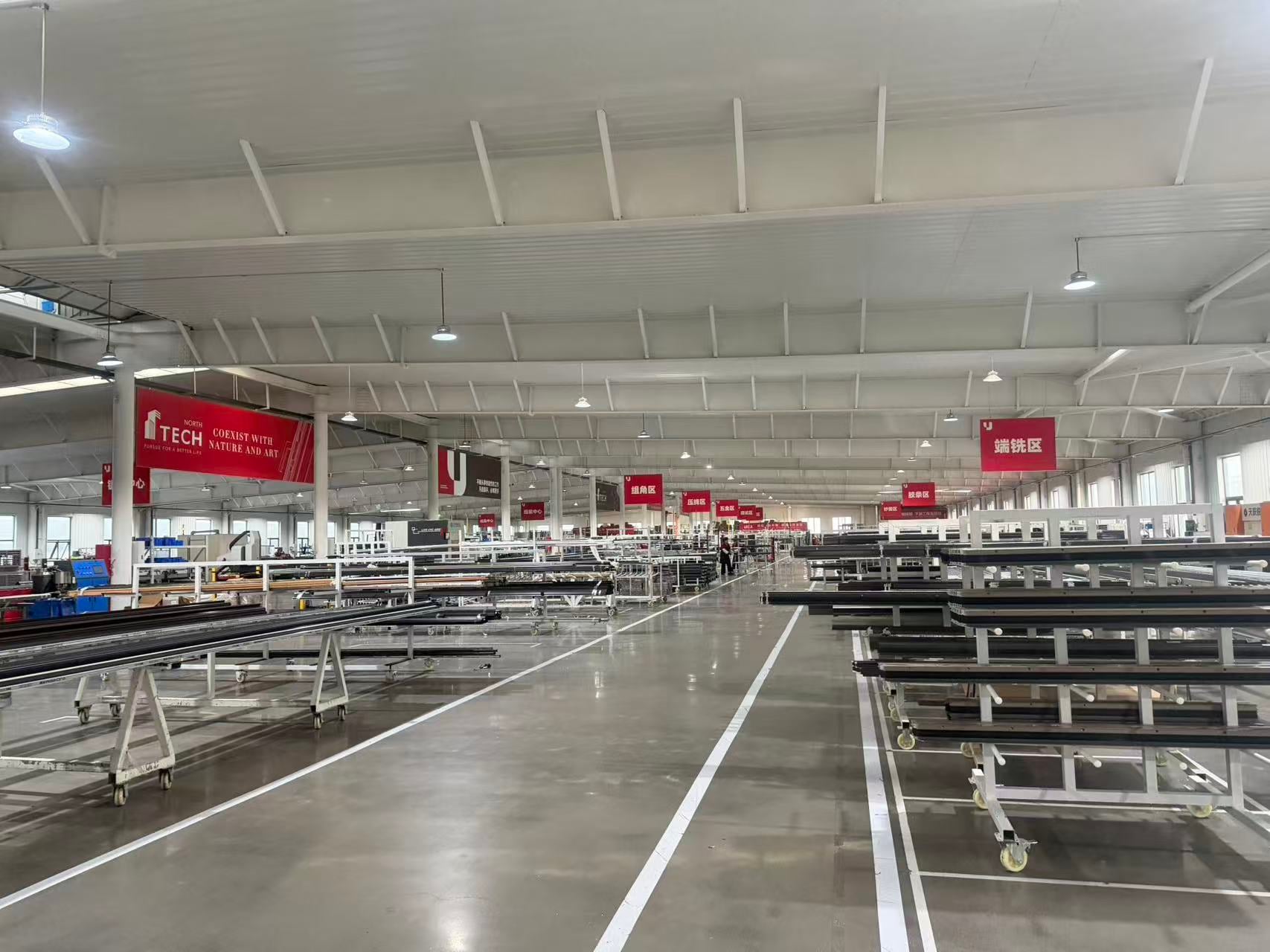

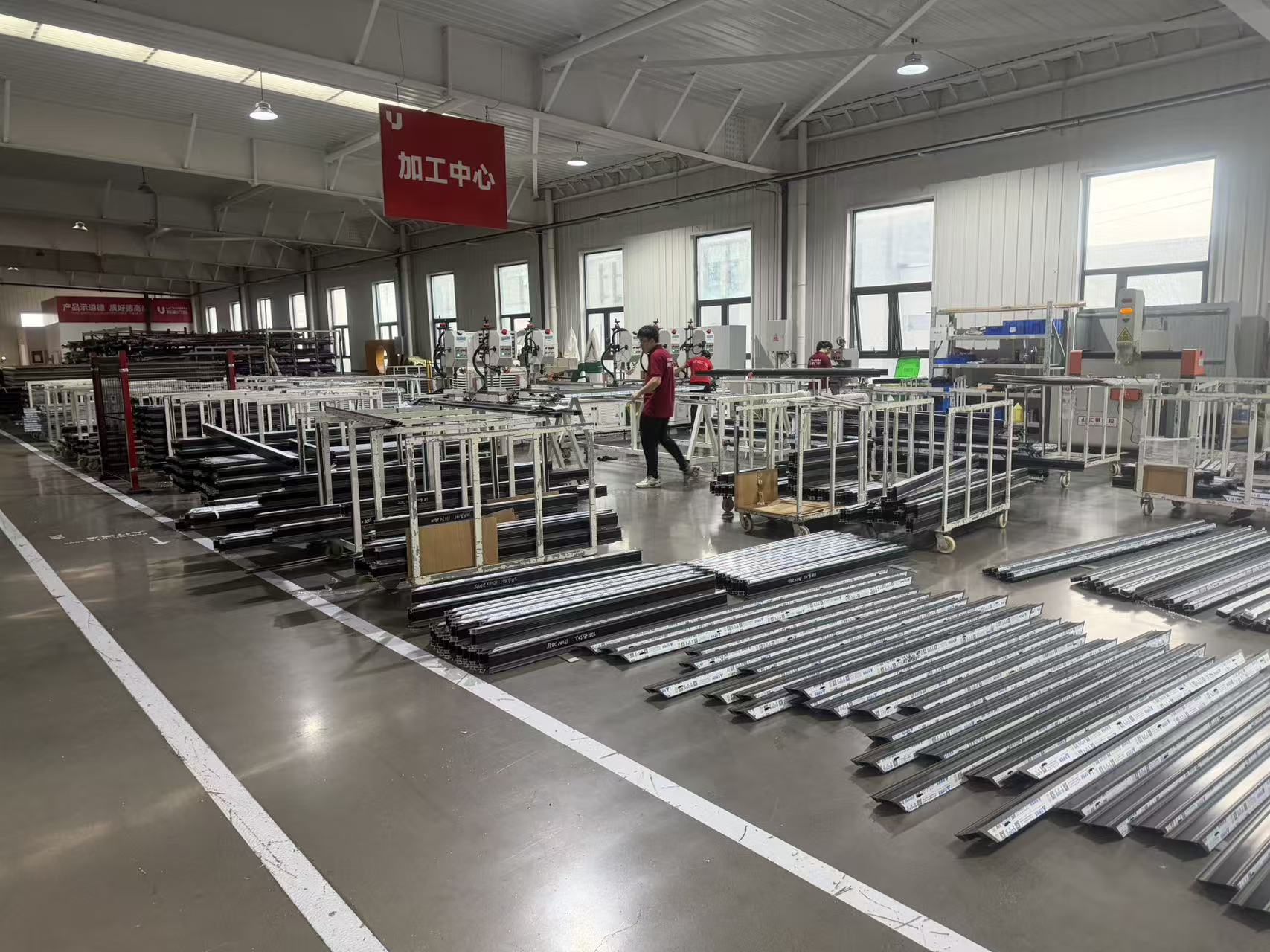

• Processing: CNC double-miter saw cutting (±0.5mm accuracy), corner crimping with adhesive, 100% inspection of every assembled window

Assembly & Installation

Installation steps

• Measure the opening — verify actual opening dimensions, level and plumb before installation

• Install the frame — fix with expansion bolts / connectors; adjust level and plumb to within 2mm

• Waterproofing — fill gaps between frame and wall with foam, apply weather-resistant sealant with a drainage slope outside

• Hang the sash — install and adjust hinges for smooth operation and tight closure

• Final adjustment — check locking points and gasket contact, remove protective film and clean

Maintenance tips

• Clean drainage holes and tracks quarterly to prevent blockage and water pooling
• Lubricate hinges and locking points with neutral oil every six months
• Inspect gaskets for aging or deformation and replace as needed
• Avoid acidic or alkaline cleaners on profile surfaces

Applications

• Residential apartments & communities — standard choice for homes, balancing cost and energy efficiency (keywords: apartment windows, balcony windows)

• Villas & townhouses — custom large floor-to-ceiling and corner windows for natural light and architectural style

• Office buildings — high air and water tightness to meet wind load and energy requirements

• Hotels & guesthouses — sound insulation for quiet rooms

• Schools & hospitals — safety and ventilation needs; child safety locks available

• Renovation & window replacement — upgrade old windows for immediate insulation and noise reduction

• Balcony enclosures — casement + top-hung combination for ventilation and safety

• Retail storefronts — clear views for product display, with anti-theft security

Customization

• Size: non-standard sizes produced from drawings; arched and special shapes available
• Color: per RAL chart; wood grain, stone grain, dual-color inside/outside
• Glazing: thickness, air space, Low-E, laminated, frosted, built-in blinds, security glass
• Hardware: brand, color and lock type (handle / multi-point lock) selectable
• Opening style: casement, top-hung, tilt & turn, fixed + casement combinations
• OEM/ODM service: private label, logo printing, custom packaging, new products developed from customer drawings

Certifications

• Compliant with GB/T 8478 Aluminum Alloy Windows national standard
• ISO 9001:2015 quality management system certified
• CE certified (EU market)

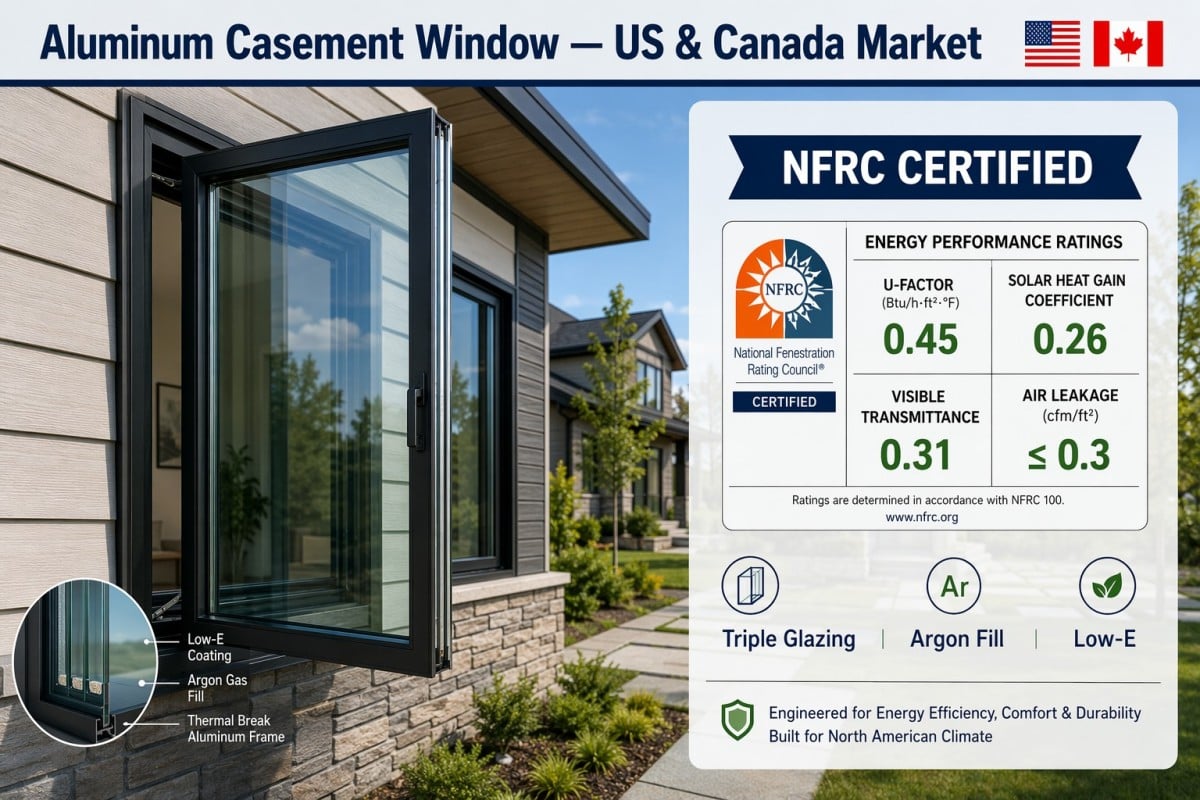

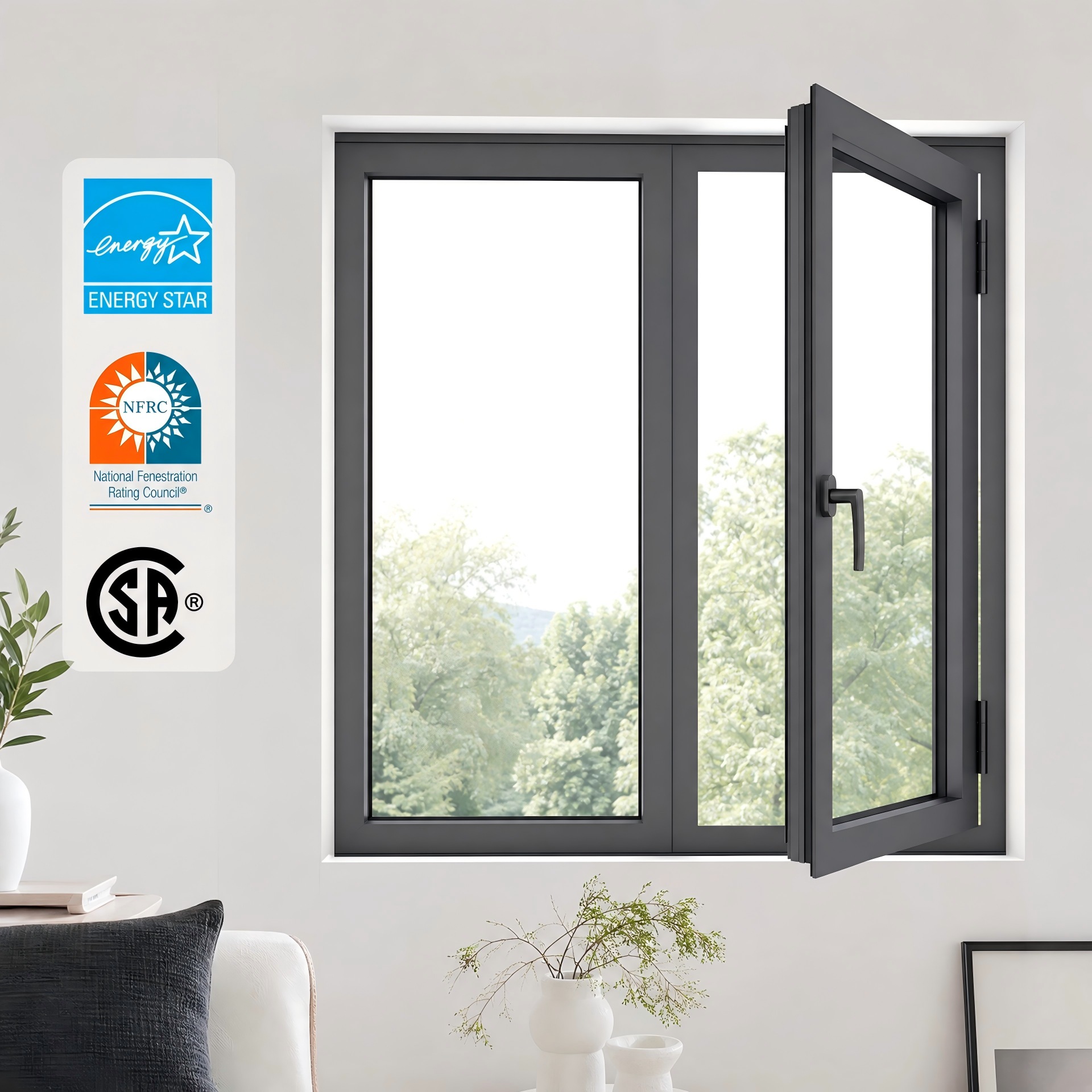

• NFRC energy performance certified (North America)
• Third-party test reports from SGS / TÜV available on request
• Factory QC: each batch ships with an inspection certificate

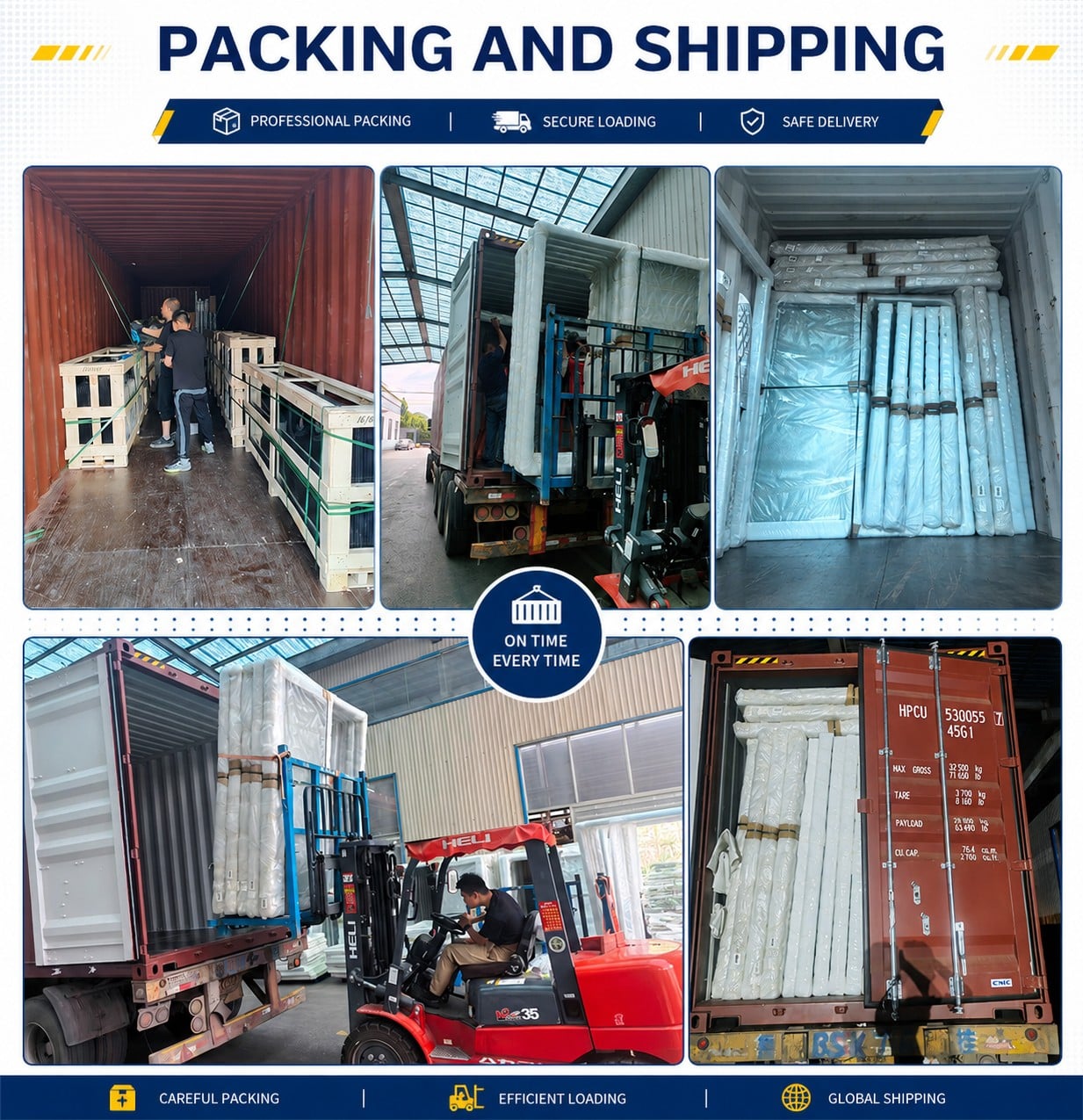

Packing & Logistics

• Inner packing: each window wrapped in EPE foam with protective film

• Outer packing: heavy-duty carton or wooden crate with reinforced corners for long sea freight

• Export crates: fumigation optional, compliant with ISPM 15

• Lead time: 15–25 days standard, 25–35 days custom (subject to order confirmation)

• Shipping: FCL / LCL by sea, air freight, international express

• Trade terms: FOB / CIF / EXW / DDP
• Loading port: 【Qingdao】

Reviews & Cases

Reviews

• Quality: “Profiles are thick and well made, gaskets seal tightly. The installer said the quality is much more solid than windows at the same price.”
• Service: “From drawing confirmation to delivery took only 20 days. Dimensions followed the drawings exactly and communication was smooth. Will order again.”
• Result: “After switching to thermal break casement windows, the indoor temperature is much more stable in winter and street noise is noticeably lower. Very satisfied.”

Cases

• Project name: High End Villa Aluminum Casement Window Project

• Location: Melbourne / Australia

• Scale: 1560 m² window area / 860 units

• Configuration: 90 series thermal break aluminum profile + 5+18A+5 double insulated glass + 1350*2250mm glass panel size

• Customer feedback: Smooth operation, superior sealing performance and perfect compatibility with villa facade design.

Service

• Samples: free sample windows available before ordering
• Design support: free drawing review, suggestions and detailed design
• Quick response: inquiries replied within 24 hours; after-sales issues within 48 hours
• Warranty: years on profile structure, years on hardware (per company policy)
• Installation support: installation video and manual provided; on-site technical guidance available
• After-sales: long-term spare parts supply, lifetime parts service
• Quality commitment: every window inspected before shipment; no defective products leave the factory

FAQ

Q1: What is the minimum order quantity (MOQ)?
A: Custom MOQ depends on configuration — confirm with our sales team.

Q2: What is the production lead time?
A: Around 15–25 days for standard windows and 25–35 days for custom orders; partial shipments can be arranged for large orders.

Q3: Can you make windows to my size?
A: Yes. We produce non-standard sizes from drawings — provide opening dimensions or design drawings before ordering.

Q4: Do you support OEM/ODM?
A: Yes. We offer private label, logo printing, custom packaging, and new product development from customer drawings.

Q5: What is the warranty? How is after-sales handled?
A: 3 years on profile structure and 5 years on hardware. Report issues with photos and we will provide a solution within 48 hours.

Q6: What glazing options are available?
A: Double glazing, triple glazing, Low-E, laminated, frosted and built-in blinds, among others. We can recommend the right configuration for your local climate.

Q7: How is the price calculated?
A: Per square meter or per unit, depending on profile series, glazing, hardware brand and quantity. Send us your drawings for a quote.

Q8: How do you guarantee quality?
A: We use qualified suppliers for profiles, glass and hardware, run QC throughout production, and inspect every window before shipment with a certificate of conformity. Test reports are available.

Q9: How do you ship? What if goods are damaged in transit?
A: EPE foam + wooden crate / carton reinforced packing; sea, air and express available. For transit damage, report with photos and the bill of lading within 1 days for free replacement parts.

Q10: Can I get a sample?
A: Yes. Samples / sample windows are available free or at cost (freight paid by customer); the sample fee is deductible from the first order.
