Aluminum Tilt And Turn Window Dual Function Tilt Swing Opening For Residential Bedroom Ventilation Safety

Product Description

We are a professional manufacturer of aluminum tilt & turn windows, the European-style dual opening windows widely used in residential and commercial projects. Featuring 6060-T6 thermal break profiles, multi-chamber construction and a multi-point locking tilt & turn hardware system, our windows offer two opening modes: full casement opening for ventilation and cleaning, and tilt mode for draft-free, child-safe ventilation. Fully customizable in size, color, glazing and hardware, suitable for apartments, villas, high-rise buildings, offices and renovation projects. NFRC certified, OEM/ODM supported. Contact us for a quotation, or send your drawings for a custom quote.

Key Features

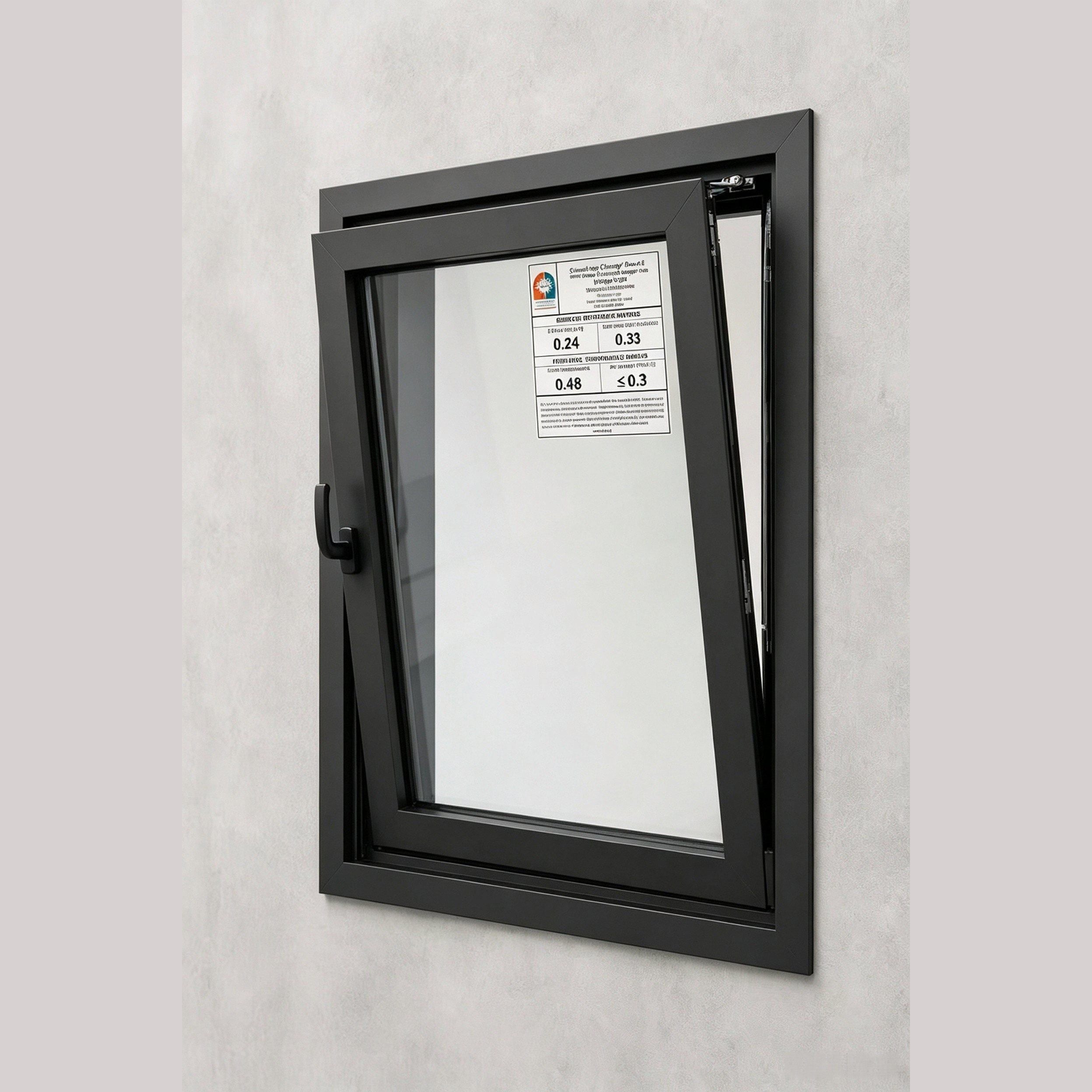

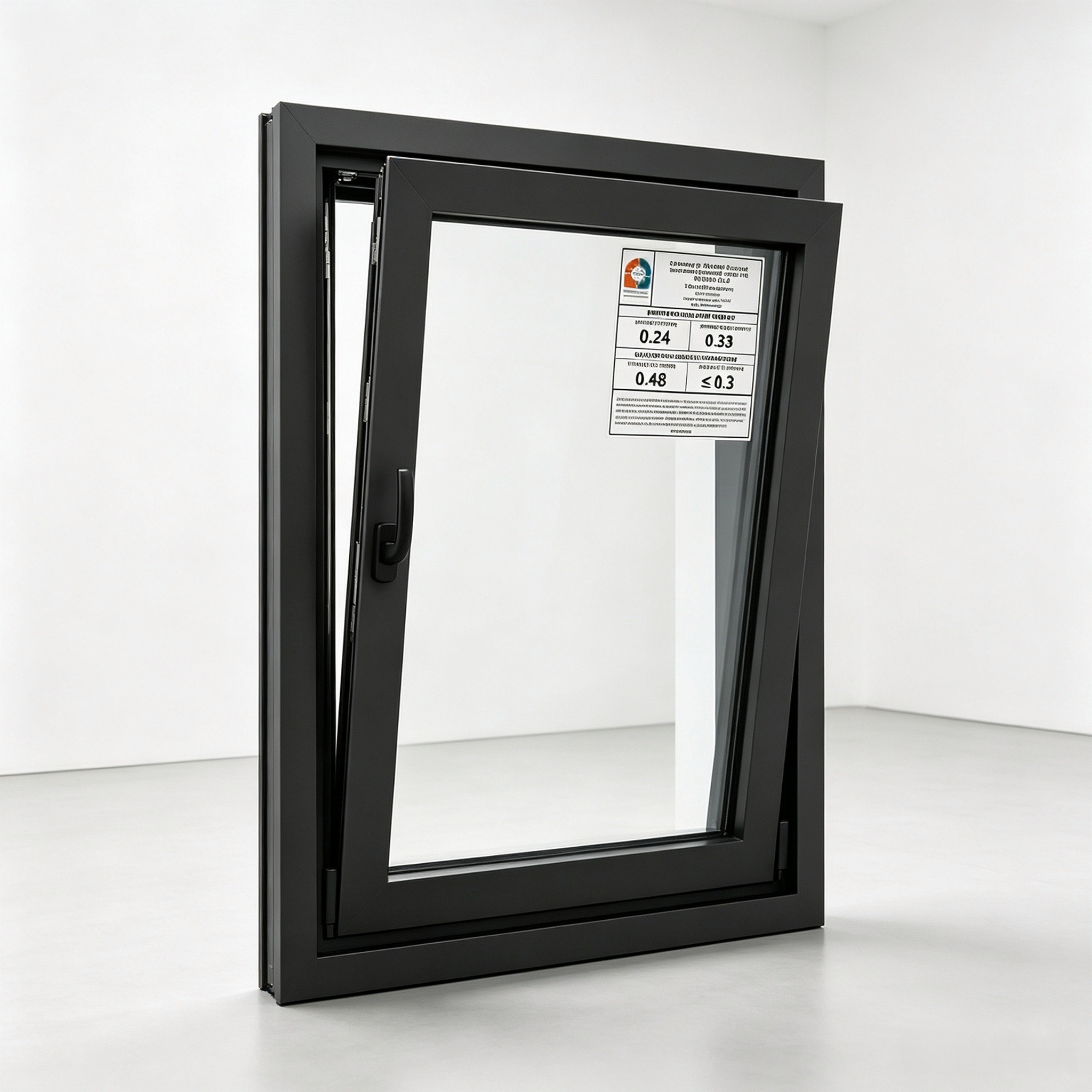

1. Dual Opening Modes — tilt mode opens the top inward for secure, rain-safe ventilation; turn mode opens the sash fully for maximum airflow and easy cleaning.

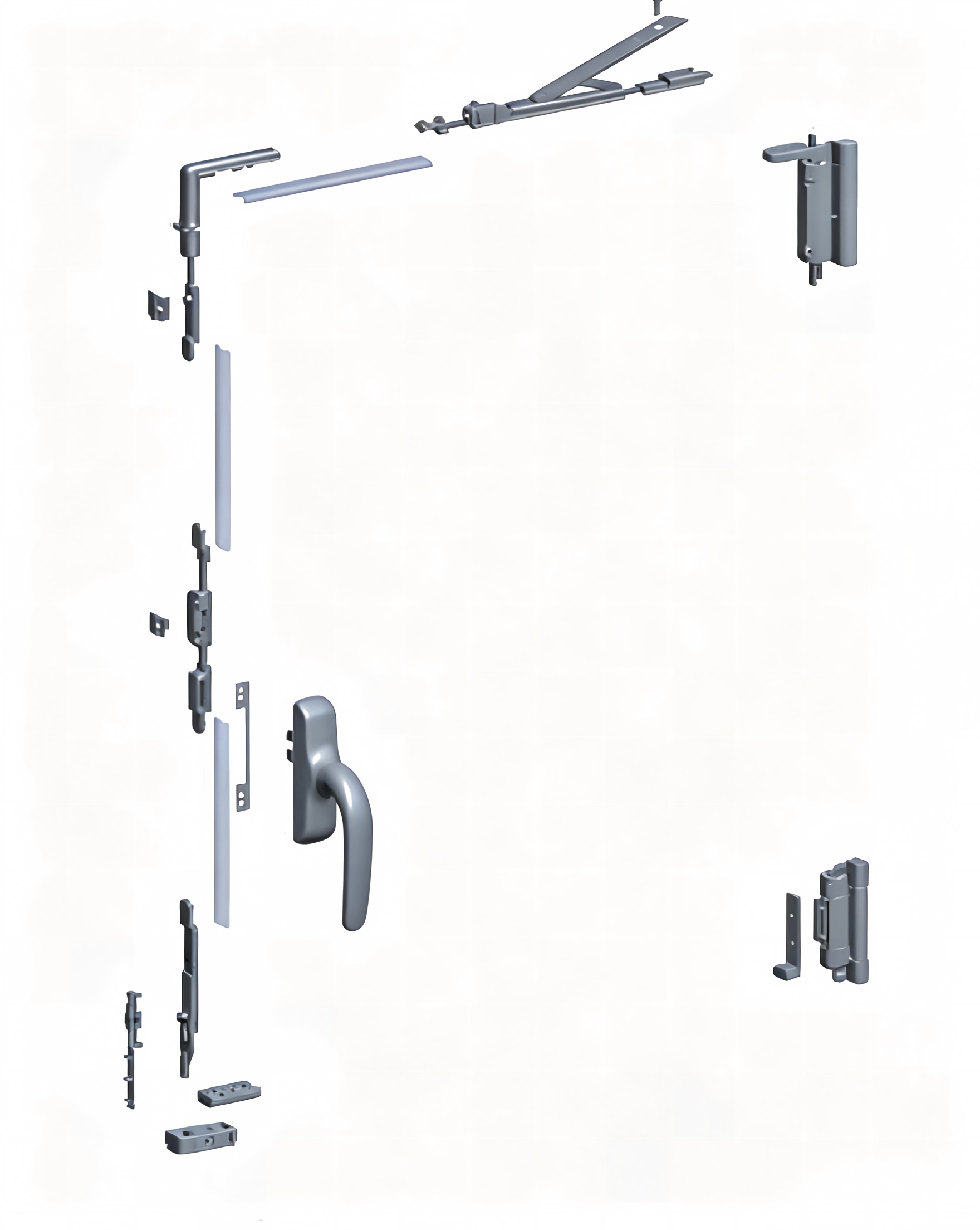

2. European Tilt & Turn Hardware — multi-point locking espagnolette with integrated tilt mechanism and 304 stainless steel hinges for smooth, durable operation.

3. Multi-Point Locking Security — locking points around the entire sash perimeter effectively resist prying and break-in attempts.

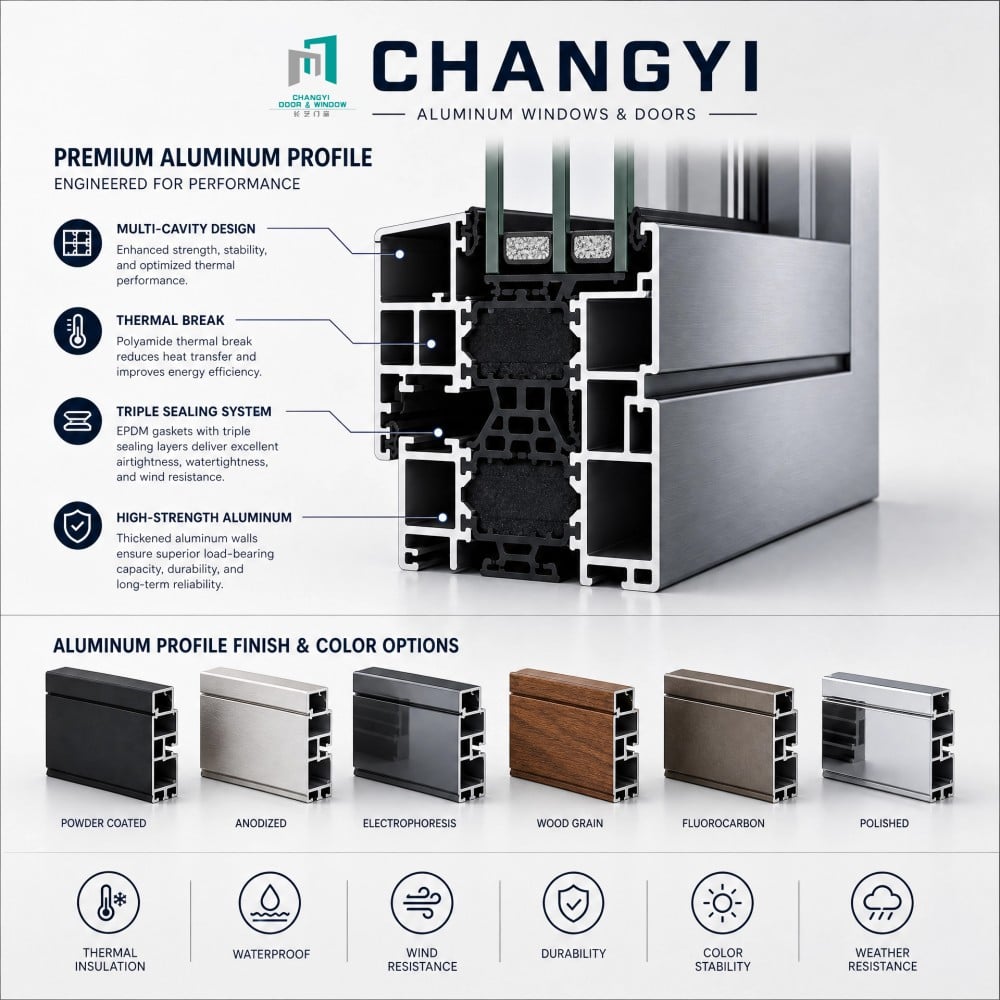

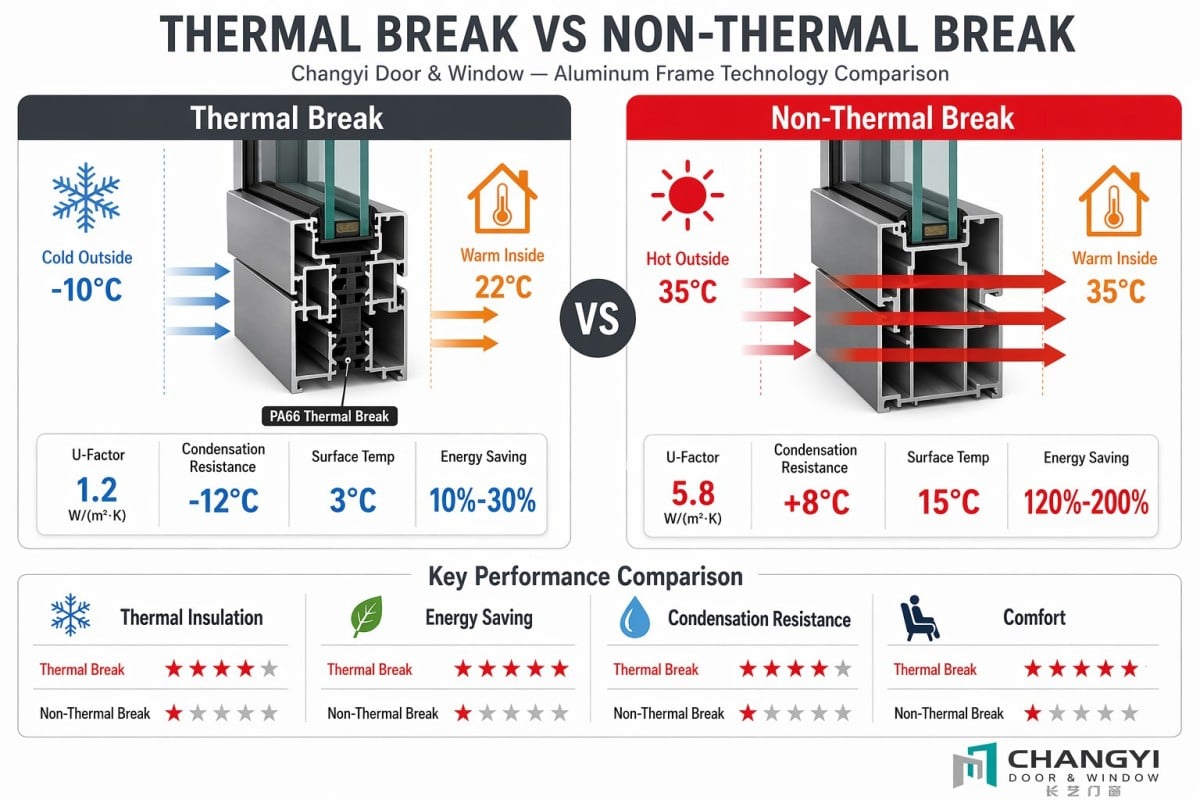

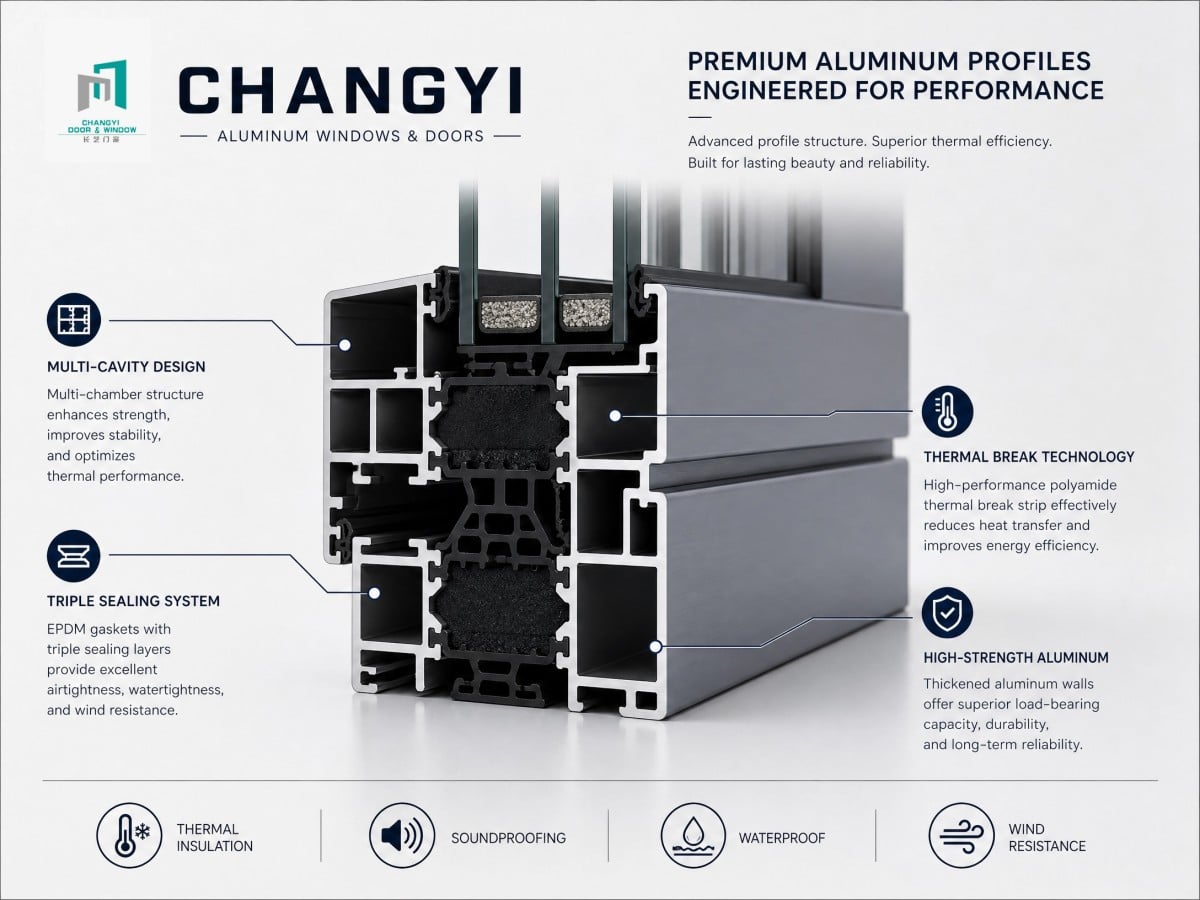

4. Thermal Break Energy Efficiency — PA66GF25 thermal break strips and multi-chamber profiles achieve a U-Factor as low as 1.0 W/(m²·K).

5. Excellent Sealing — multi-seal EPDM gaskets deliver Class 8 air permeability and Class 6 water tightness.

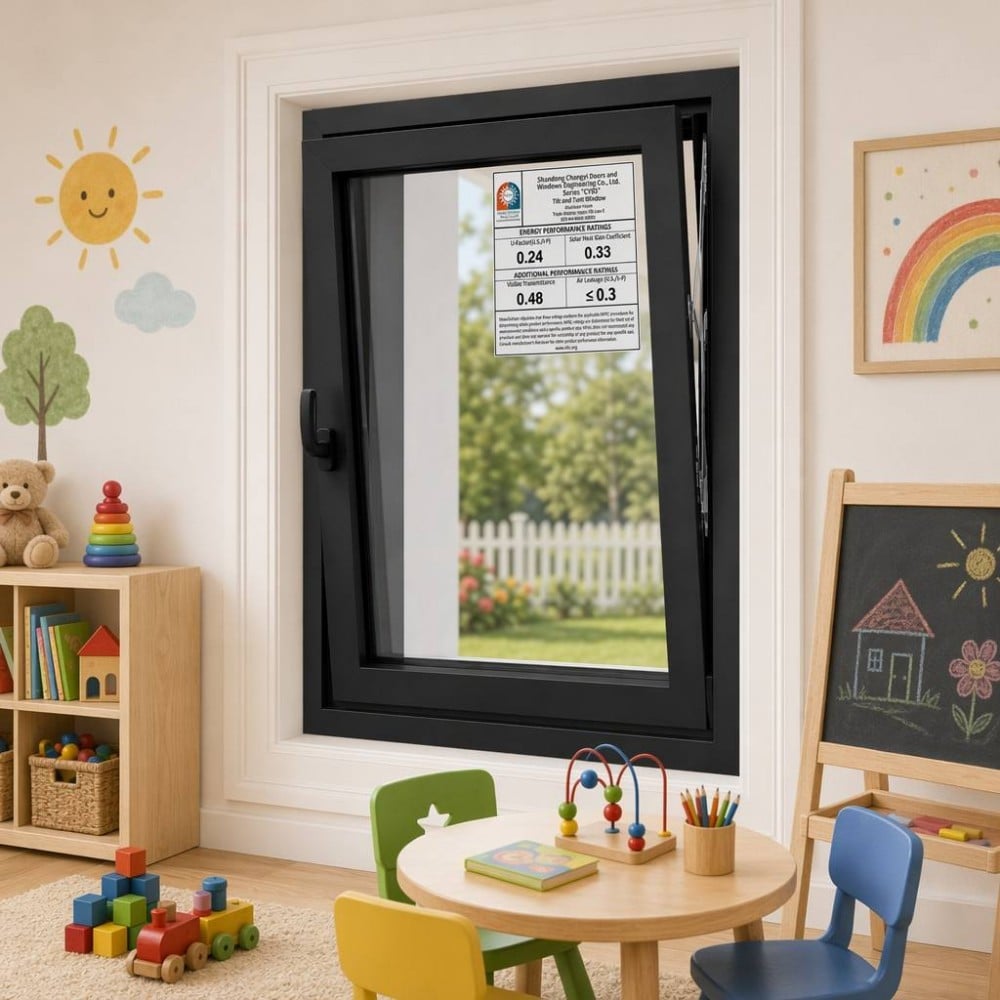

6. Child-Safe Ventilation — tilt mode limits the opening gap to prevent children from falling out while still allowing fresh air in.

7. Easy Cleaning & Maintenance — the inward opening sash allows both sides of the glass to be cleaned safely from inside, ideal for high-rise buildings.

8. Full Customization — size, color, glazing and hardware fully customizable; OEM/ODM supported.

Specifications

Materials & Finish

• Aluminum profiles: 6063-T5 aluminum alloy — high tensile strength, corrosion resistant, long service life

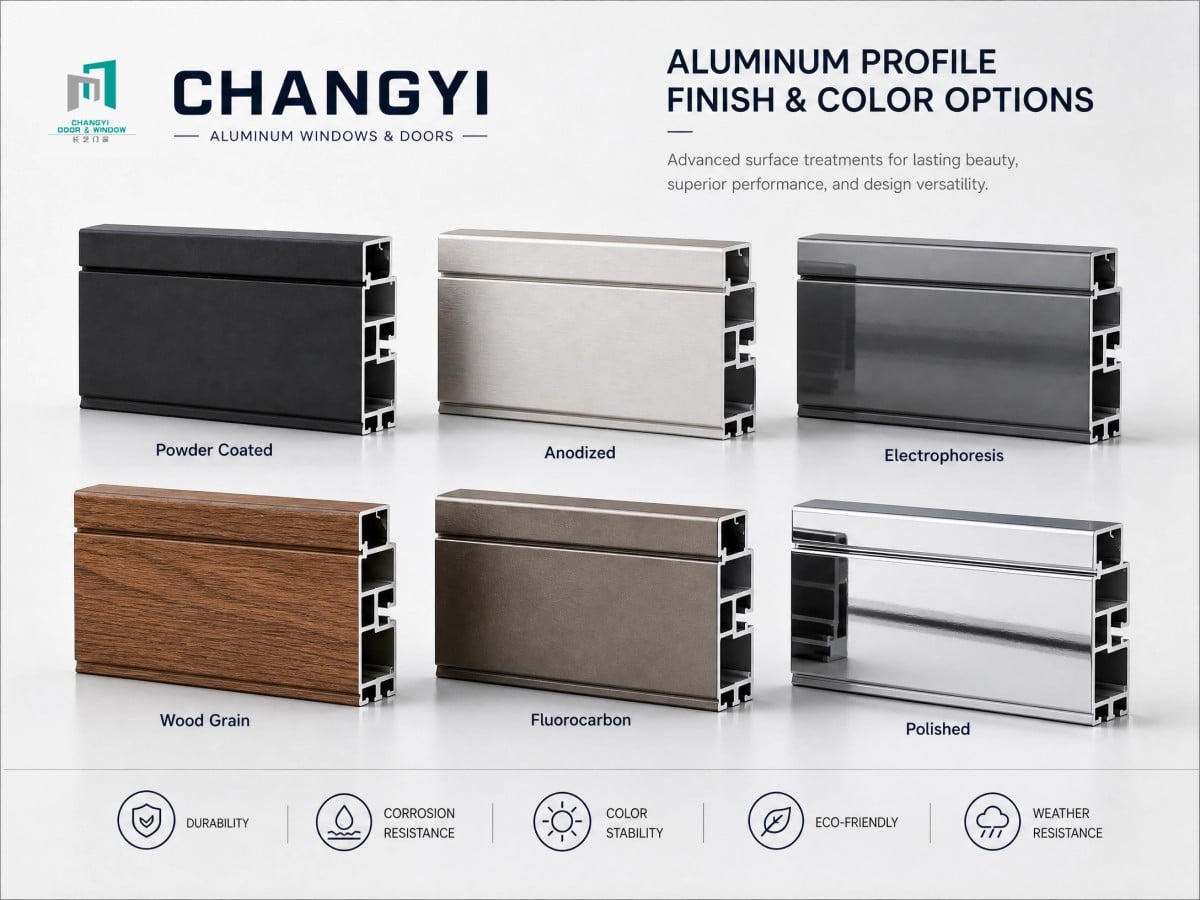

• Surface finishes: anodizing (AA15–AA25), powder coating (≥ 60μm), PVDF coating, wood/stone grain transfer — strong adhesion, weather and UV resistant
• Thermal break strips: PA66GF25 nylon (14.8–34.8mm) — high strength, stable insulation performance

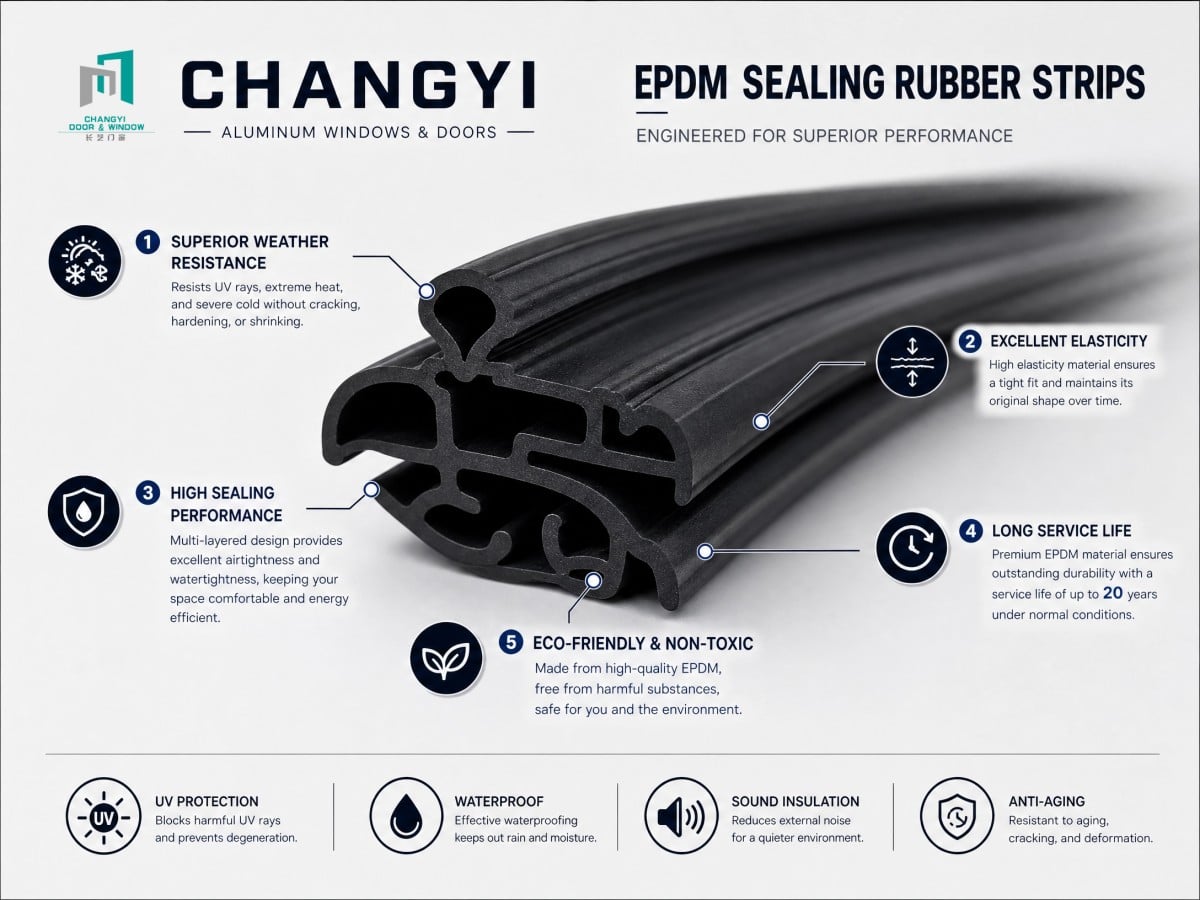

• Gaskets: EPDM composite gaskets, -40°C to 120°C, aging resistant

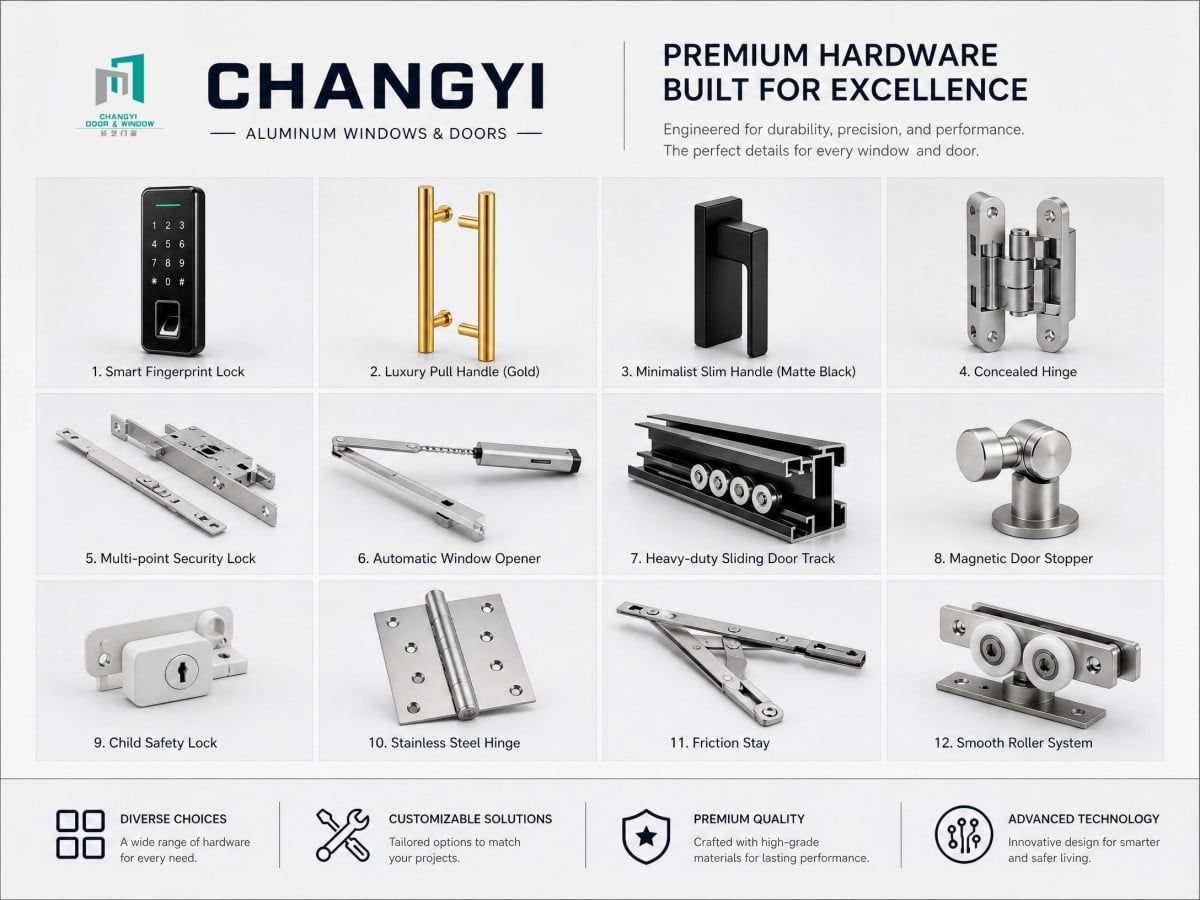

• Hardware: European tilt & turn hardware — multi-point espagnolette, concealed hinges, zinc alloy handles with optional child safety lock
• Glass: automotive-grade float glass; tempered, laminated, Low-E, argon-filled IGUs optional
• Processing: CNC double-miter saw cutting (±0.5mm accuracy), corner crimping with adhesive, 100% inspection of every assembled window

Assembly & Installation

Installation steps:

• Measure the opening — verify actual opening dimensions, level and plumb
• Install the frame — fix with expansion bolts / connectors; adjust level and plumb to within 2mm
• Hang the sash — install the sash on the tilt & turn hinges and adjust for smooth tilt and turn operation
• Waterproofing — fill gaps between frame and wall with foam, apply weather-resistant sealant with a drainage slope outside
• Final adjustment — check both opening modes and locking points, remove protective film and clean

Maintenance:

• Clean drainage holes and tracks quarterly to prevent blockage and water pooling
• Lubricate the espagnolette, tilt mechanism and hinges with neutral oil every six months
• Check the child safety lock and gaskets for wear; replace as needed
• Avoid acidic or alkaline cleaners on profile surfaces

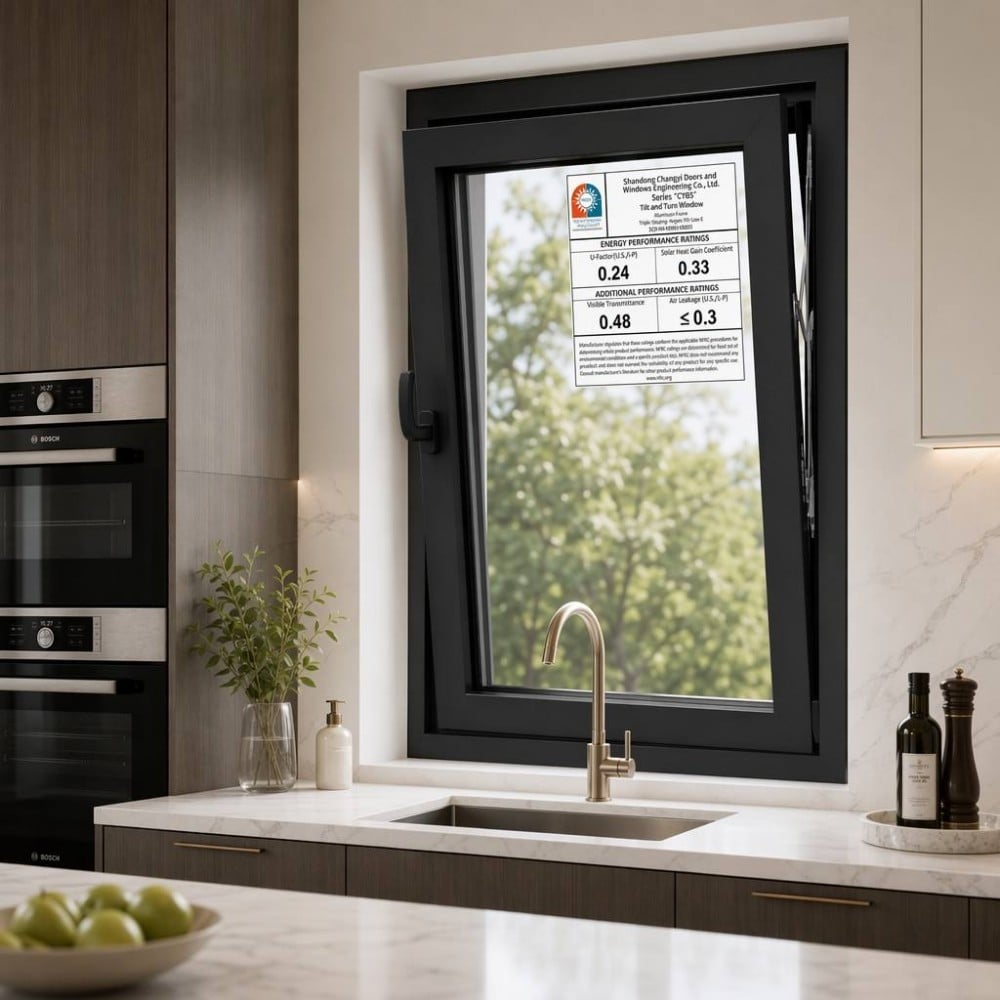

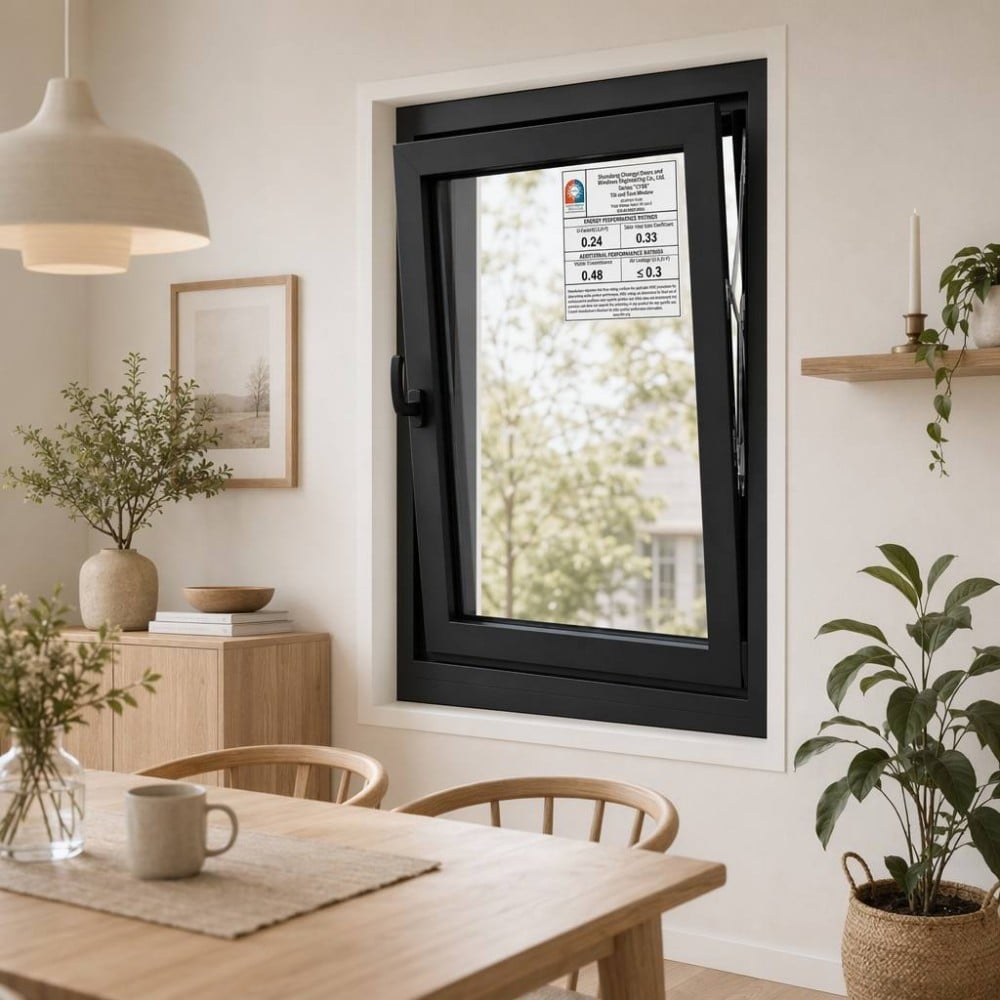

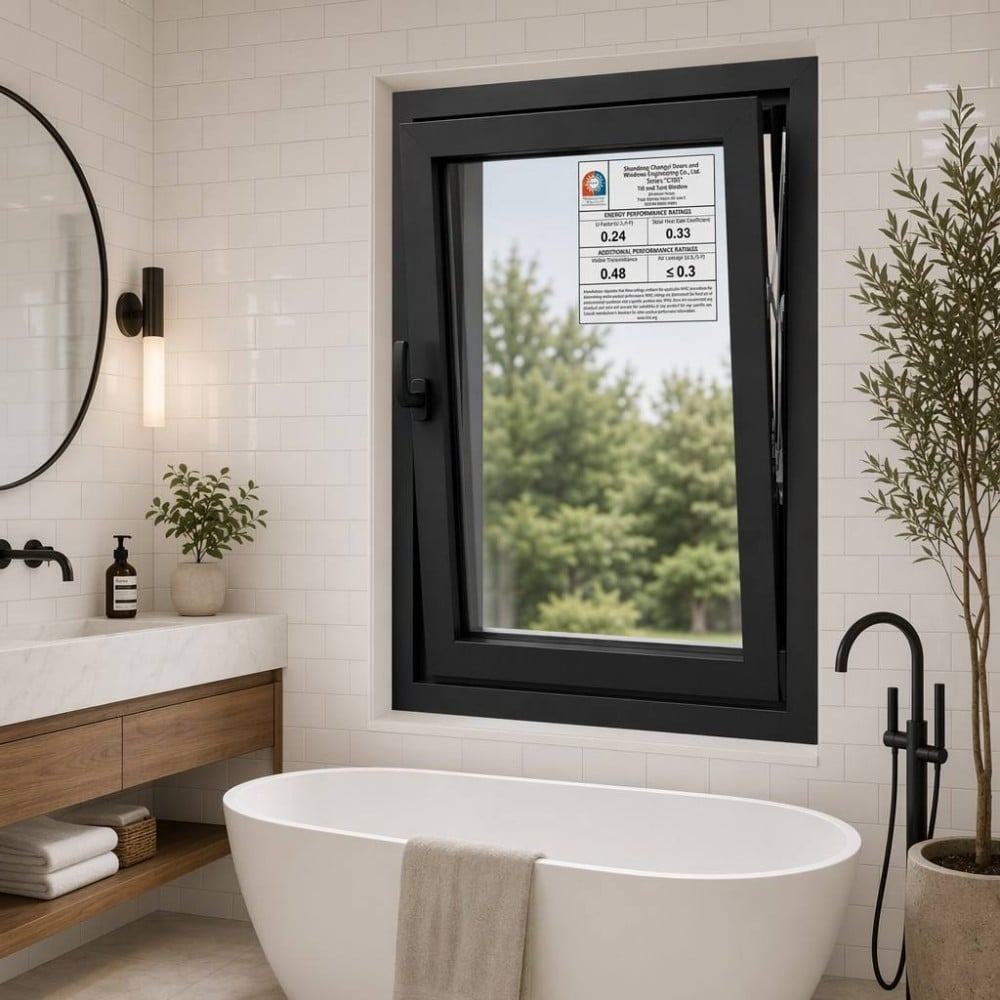

Applications

• Residential apartments & communities — the European standard choice for homes (keywords: tilt and turn windows, apartment windows)

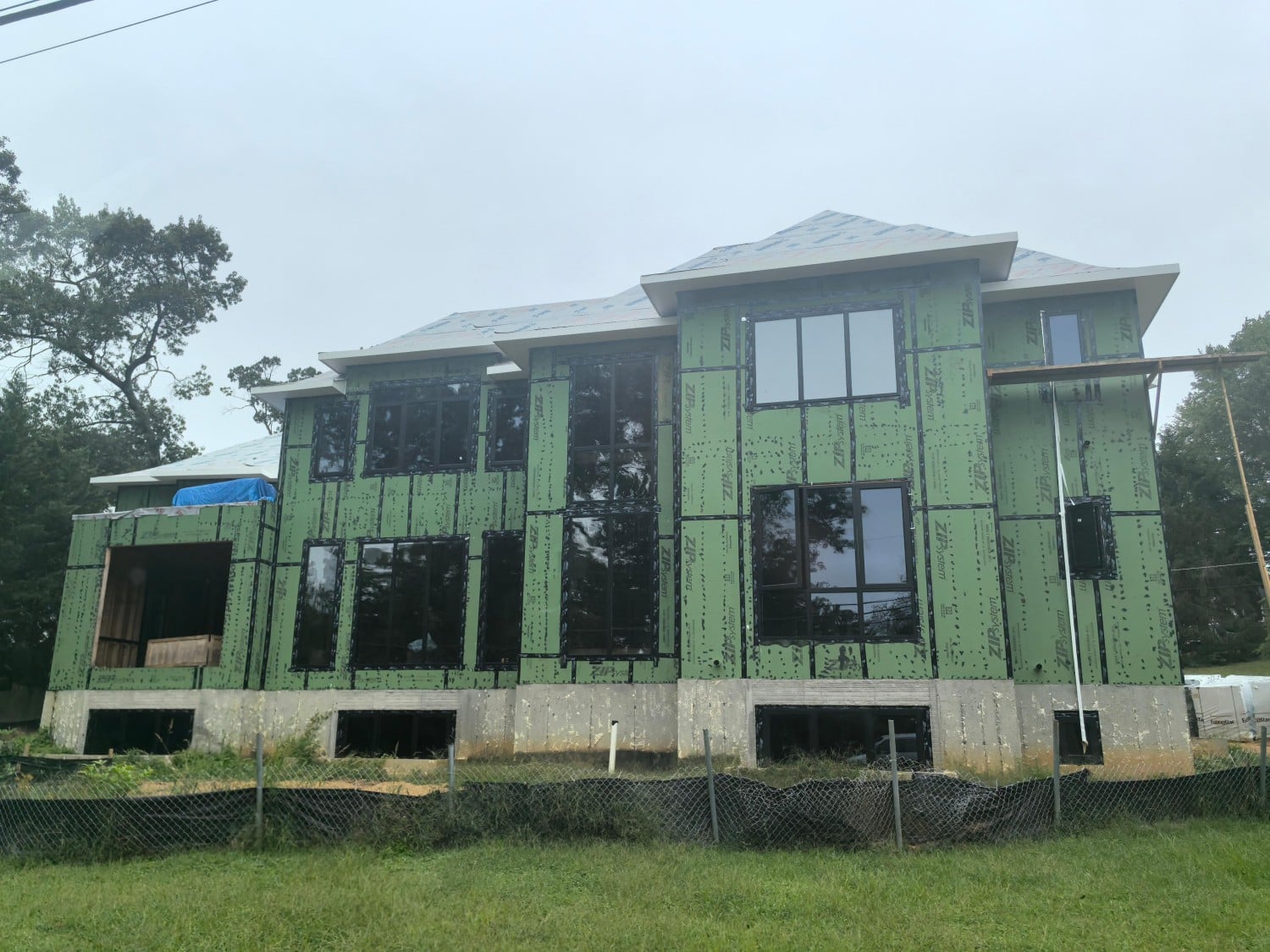

• Villas & townhouses — large dual-opening windows for ventilation and unobstructed views
• High-rise buildings — inward opening allows safe glass cleaning from inside

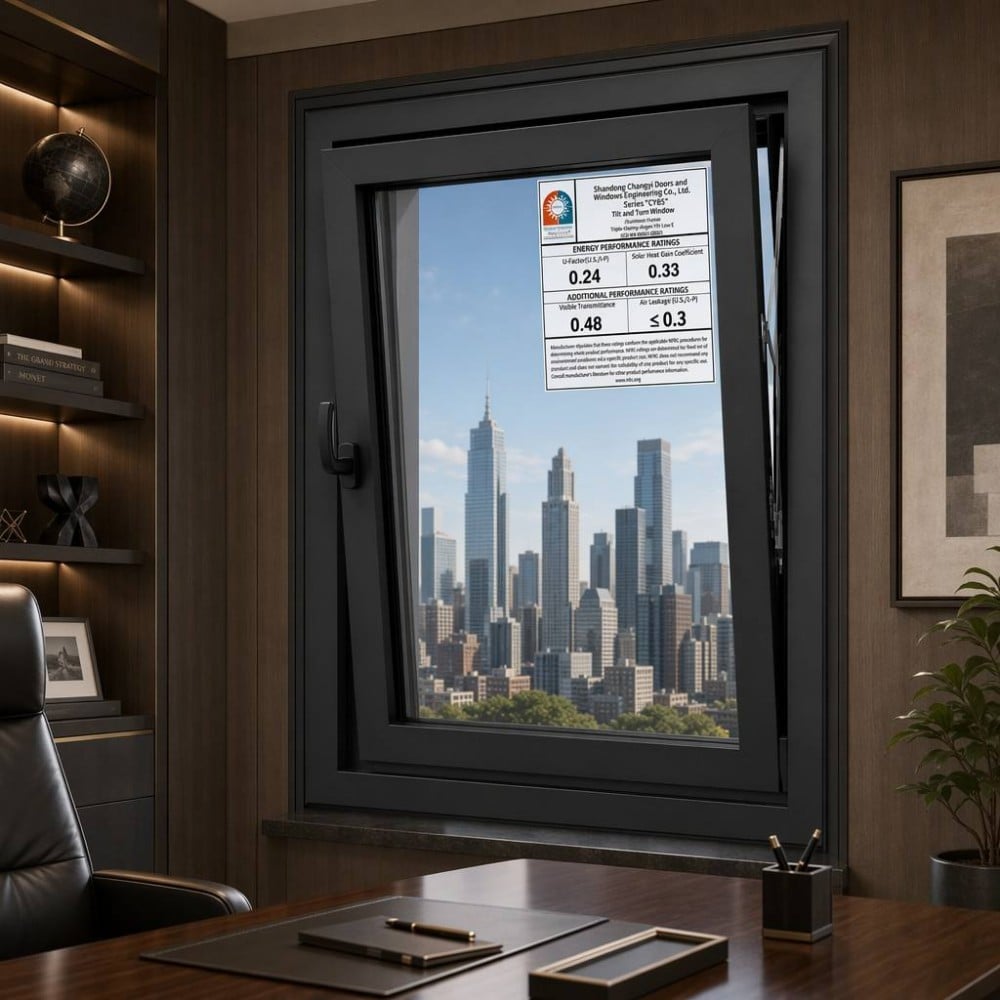

• Office buildings — controlled tilt ventilation with high air tightness

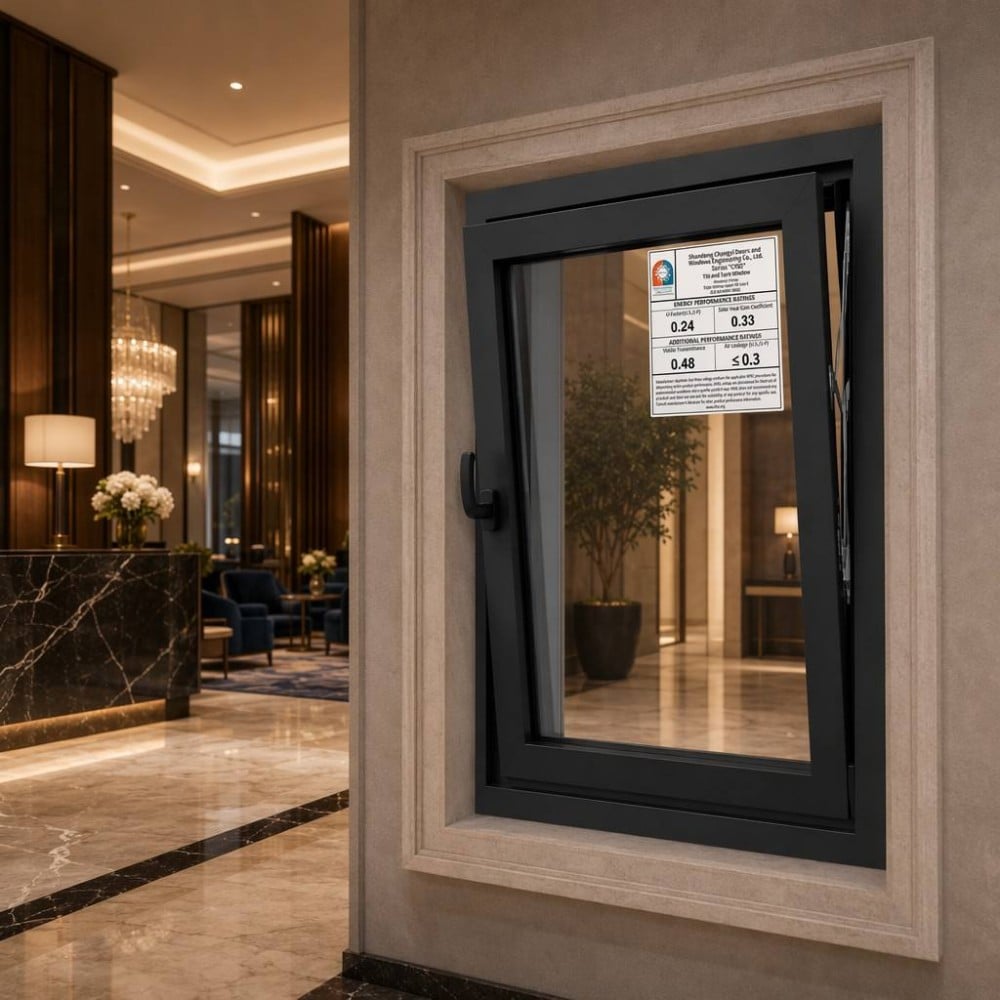

• Hotels & guesthouses — quiet, safe ventilation for guest rooms
• Schools & kindergartens — child-safe tilt ventilation in classrooms
• Renovation & window replacement — upgrade to European-style dual-opening windows
• Balconies & partitions — tilt & turn units combined with fixed glazing

Customization

• Size: non-standard sizes produced from drawings; arched and special shapes available
• Color: per RAL chart; wood grain, stone grain, dual-color inside/outside
• Glazing: thickness, air space, Low-E, laminated, tempered, frosted, built-in blinds
• Hardware: handle color and lock type, child safety lock, optional security grade
• Opening mode: tilt-first or turn-first handle options
• OEM/ODM service: private label, logo printing, custom packaging, new products developed from customer drawings

Certifications

• Compliant with GB/T 8478 Aluminum Alloy Windows national standard
• ISO 9001:2015 quality management system certified
• CE certified (EU market)

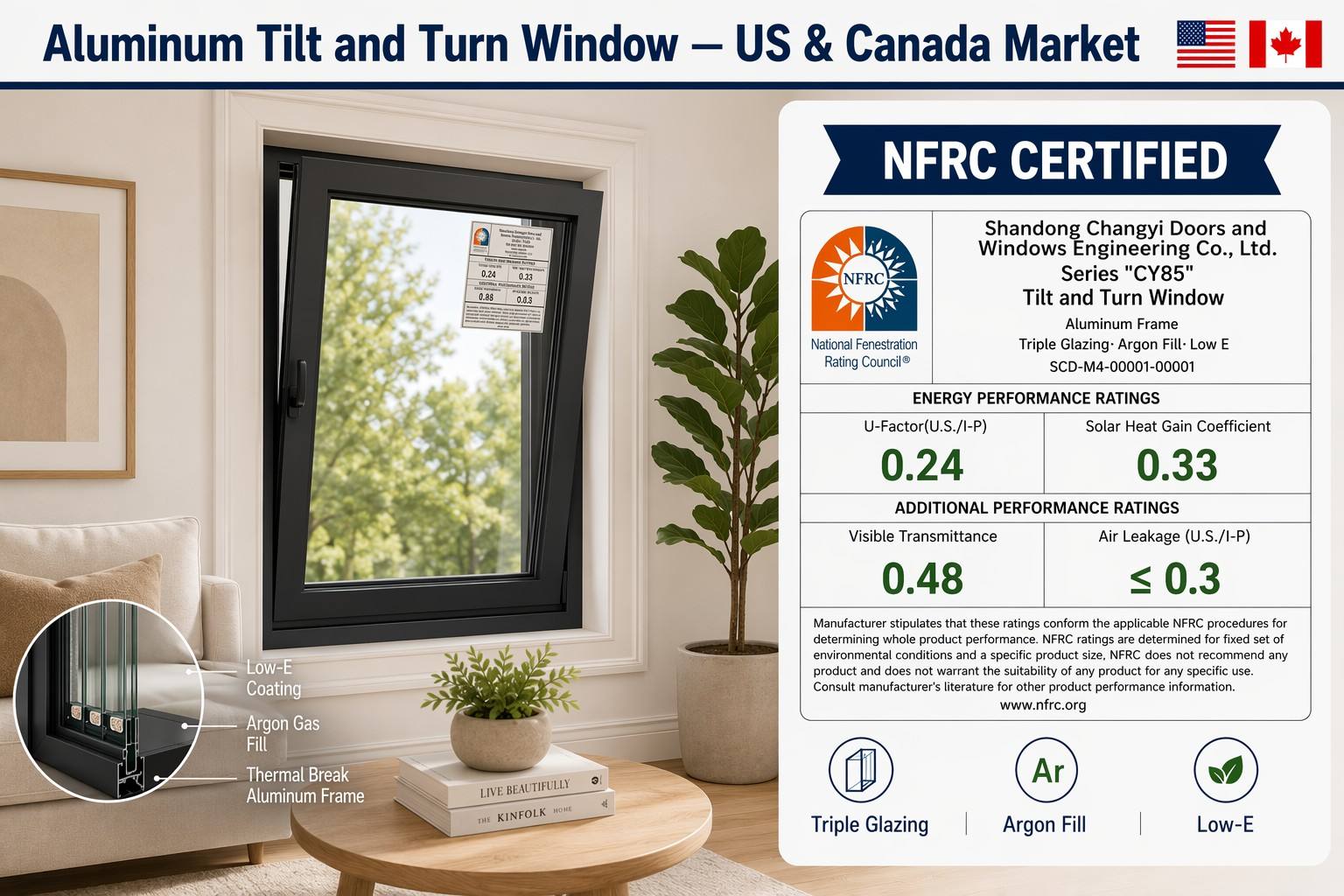

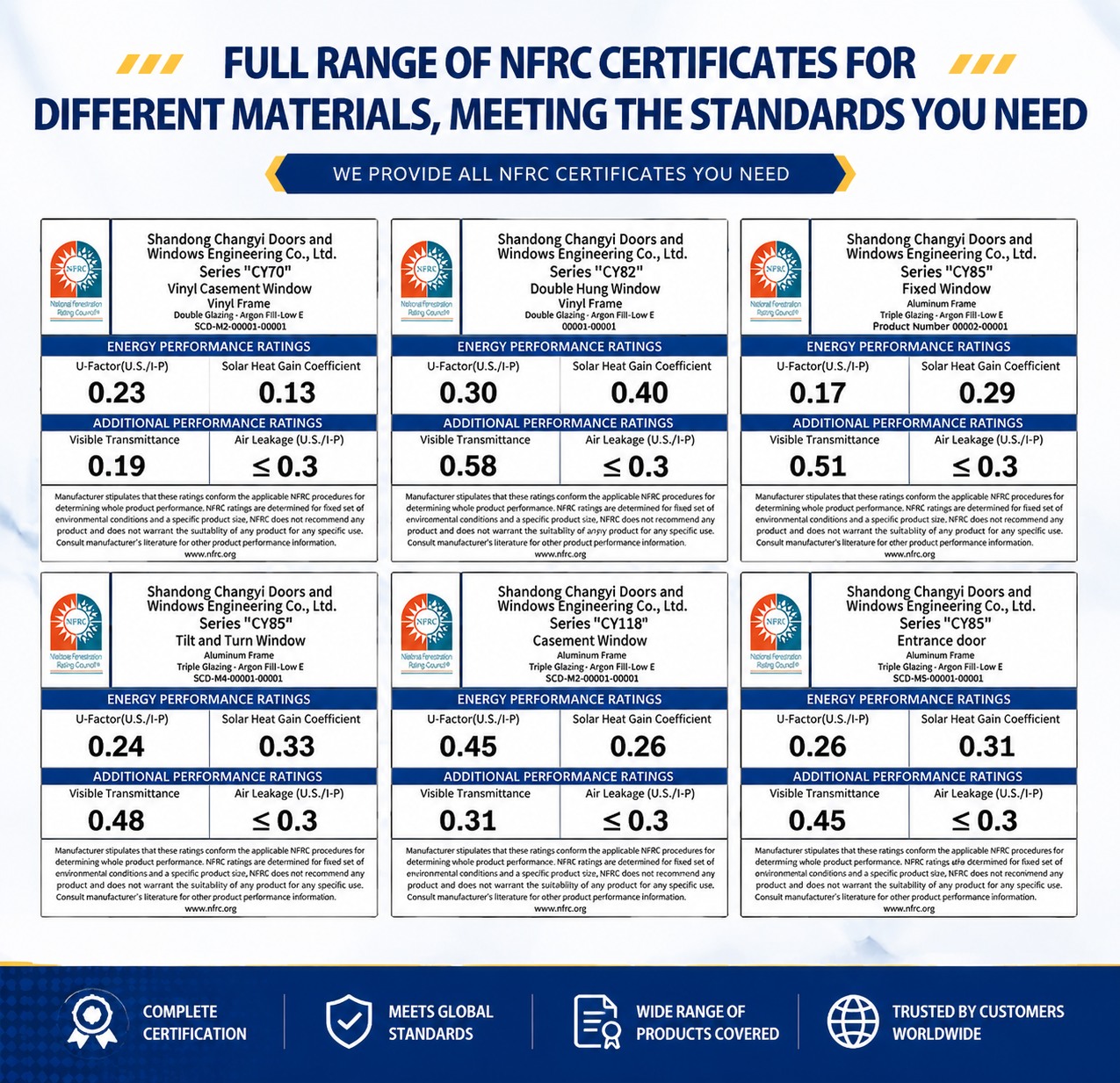

• NFRC energy performance certified (North America)
• Third-party test reports from SGS / TÜV available on request
• Factory QC: each batch ships with an inspection certificate

Packing & Logistics

• Inner packing: each window wrapped in EPE foam with protective film
• Outer packing: heavy-duty carton or wooden crate with reinforced corners for long sea freight
• Export crates: fumigation optional, compliant with ISPM 15
• Lead time: 15–25 days standard, 25–35 days custom (subject to order confirmation)
• Shipping: FCL / LCL by sea, air freight, international express
• Trade terms: FOB / CIF / EXW / DDP
• Loading port:【Qingdao Port】

Product Video

• 360° product showcase (30s) — full window appearance with dual opening modes demonstrated
• Tilt & turn operation tutorial (30–45s) — how to switch between the two opening modes
• Installation walkthrough (60–90s) — frame fixing, sash hanging and waterproofing
• Performance test footage — air, water and wind load tests

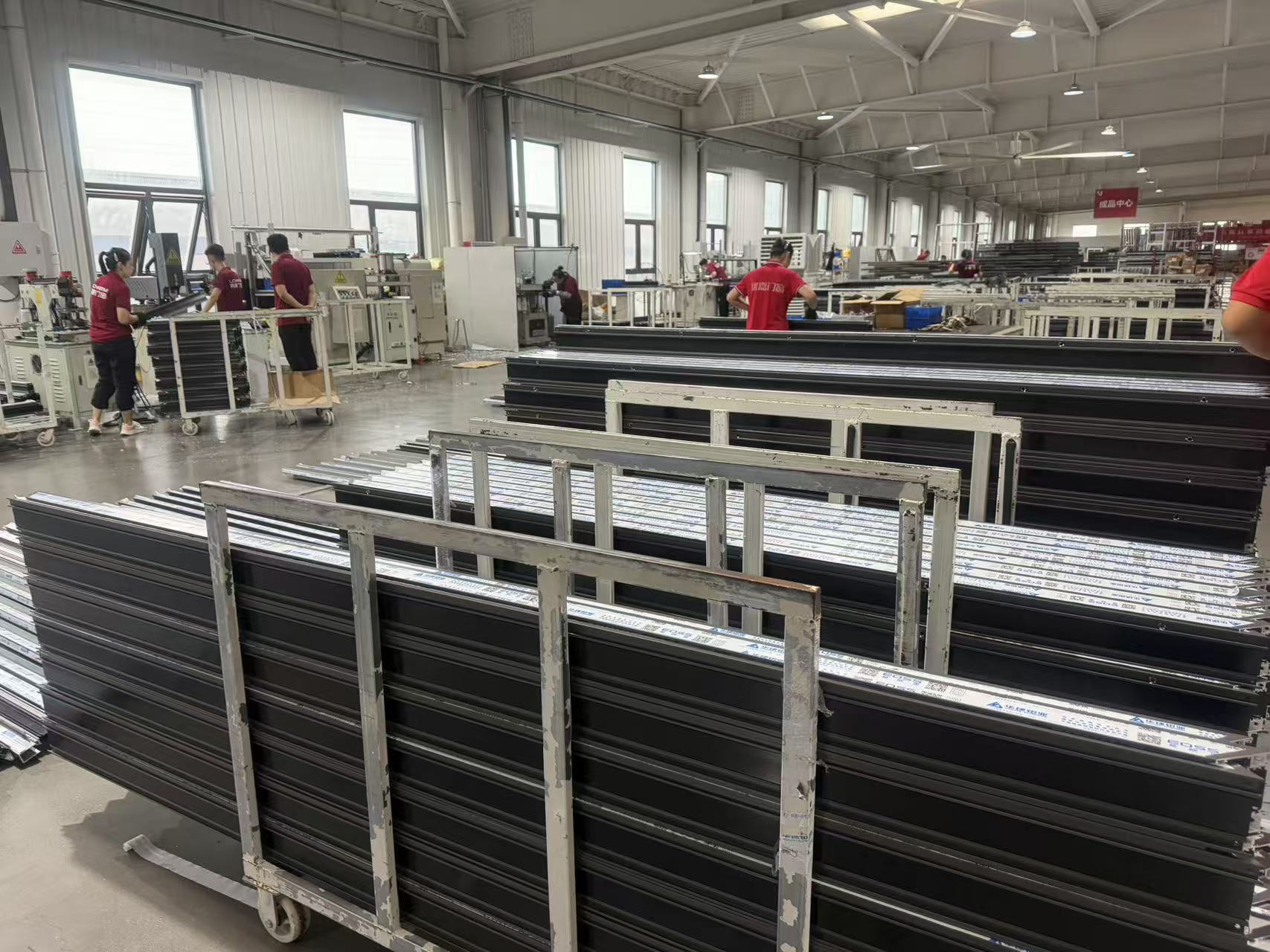

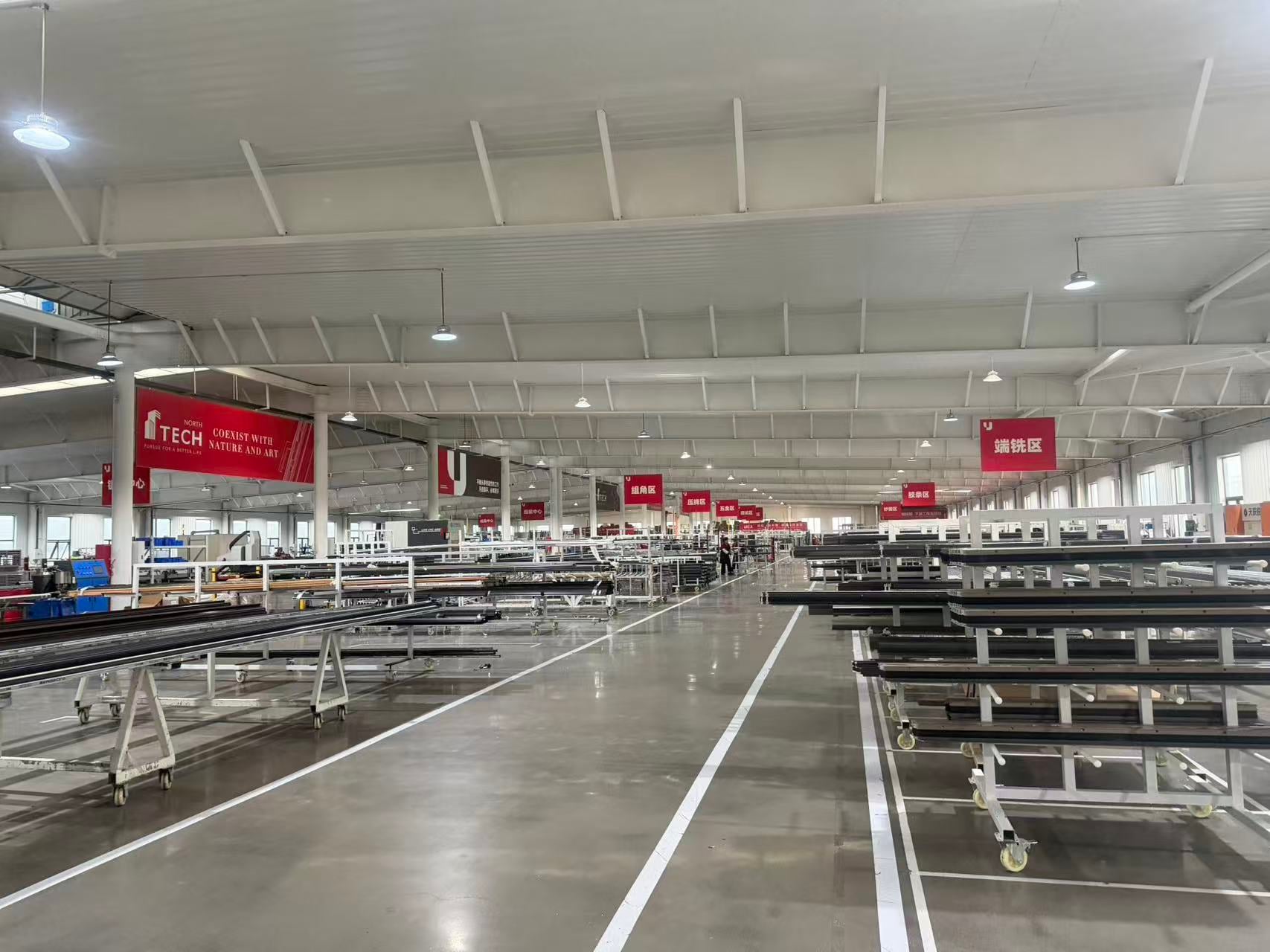

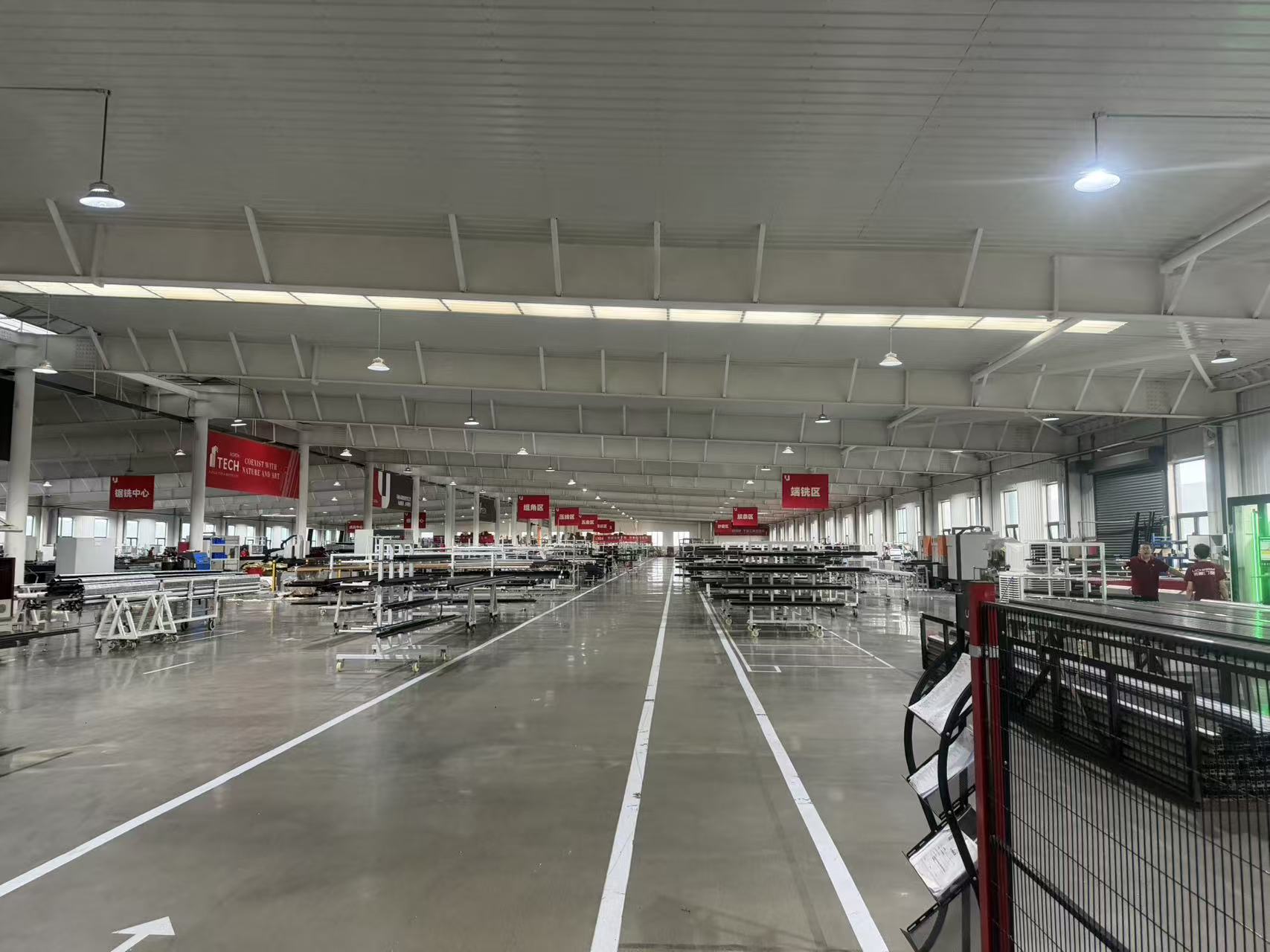

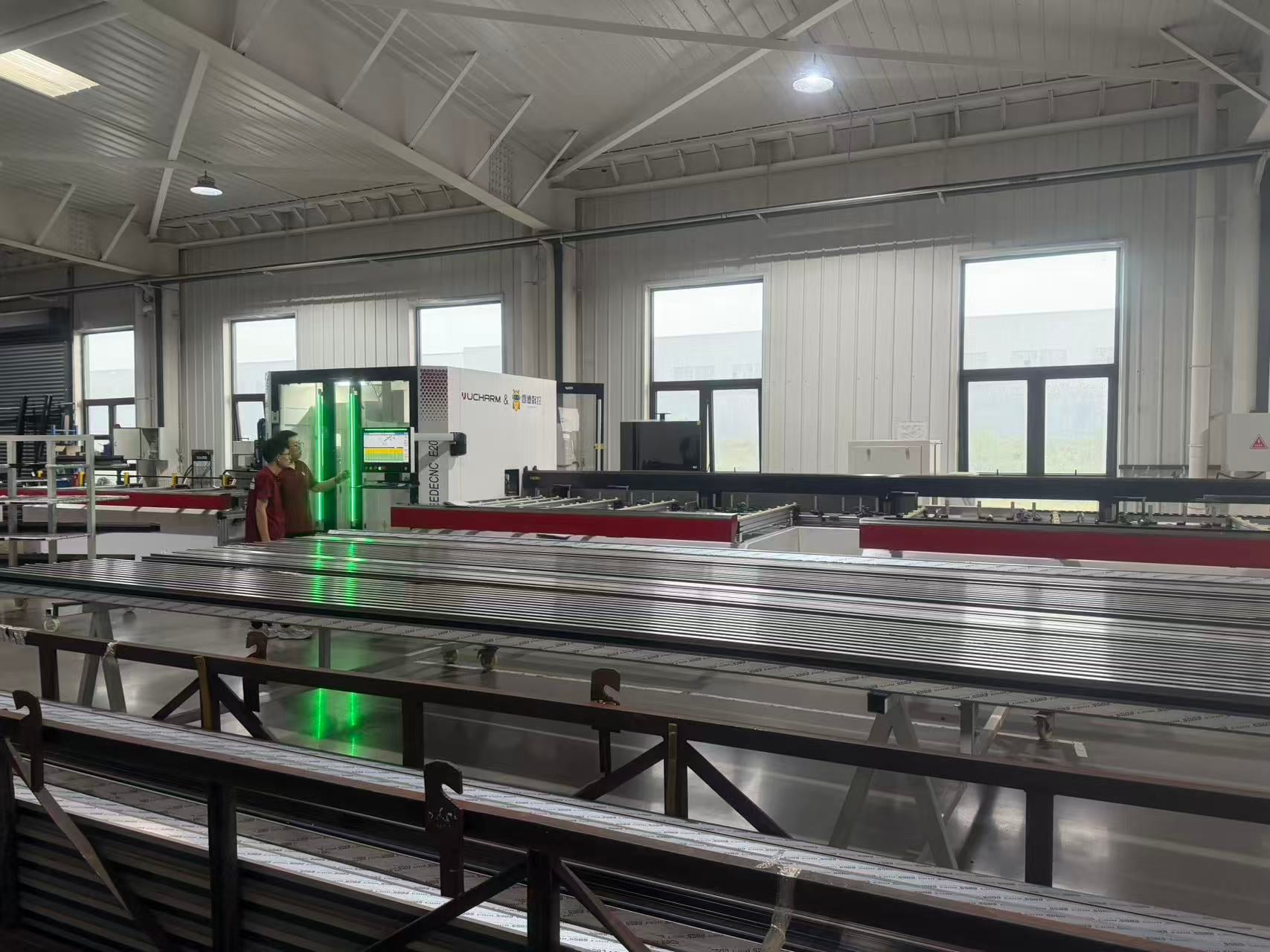

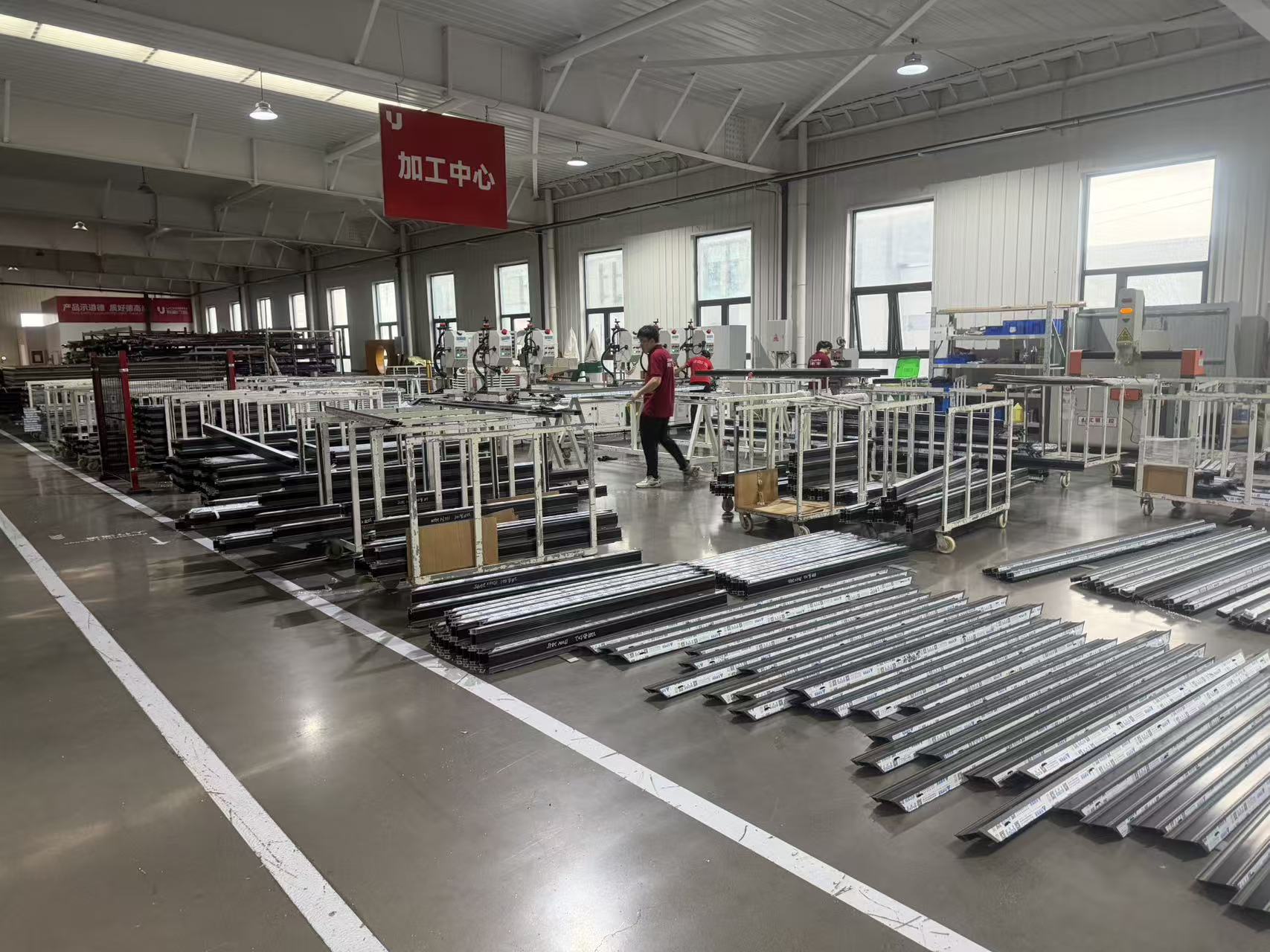

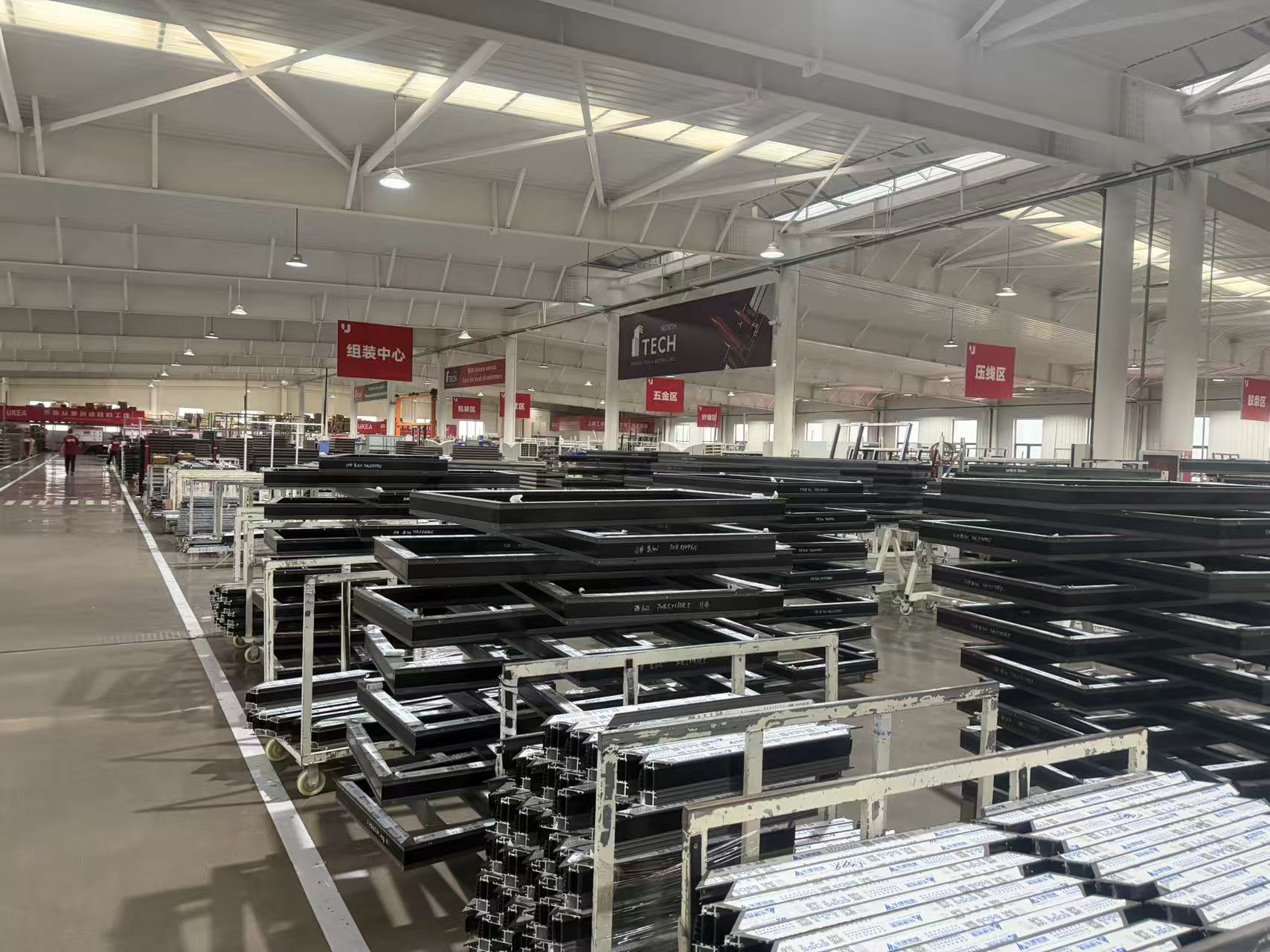

• Factory production line — CNC machining, assembly, hardware fitting, QC process
• Project case footage — installed windows and customer feedback

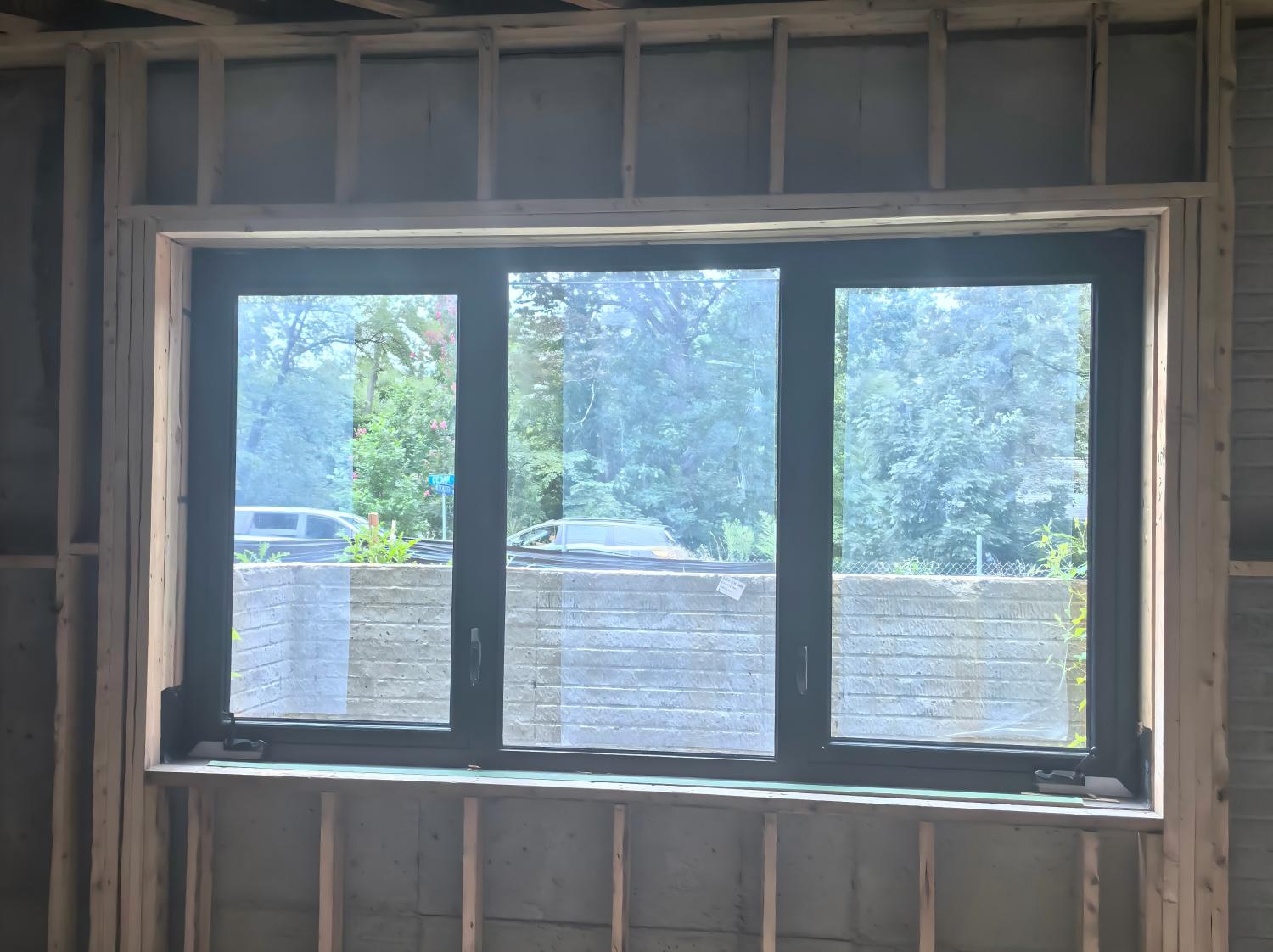

Reviews & Cases

Sample reviews:

• The tilt function is brilliant for our nursery — ventilation without any safety worry. The hardware feels solid and premium.
• Ordered 200 units for a residential project in Europe. Hardware passed local certification and installation was straightforward.
• Inward opening makes cleaning so much easier on our 8th floor apartment. Thermal performance is excellent.

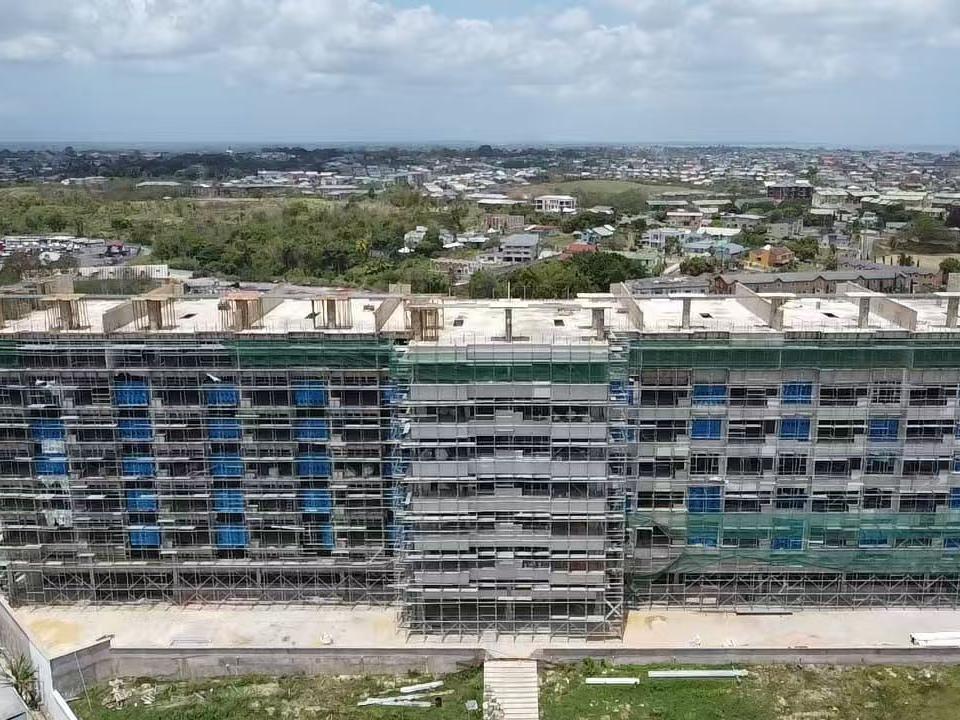

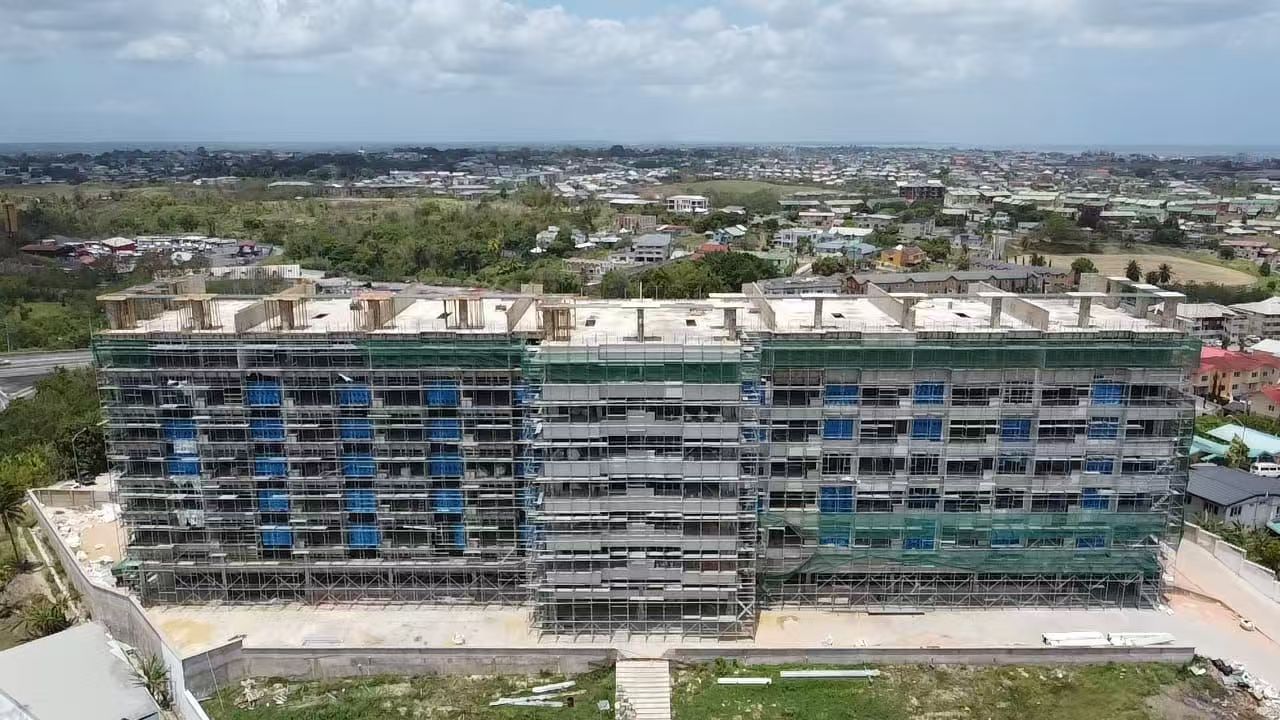

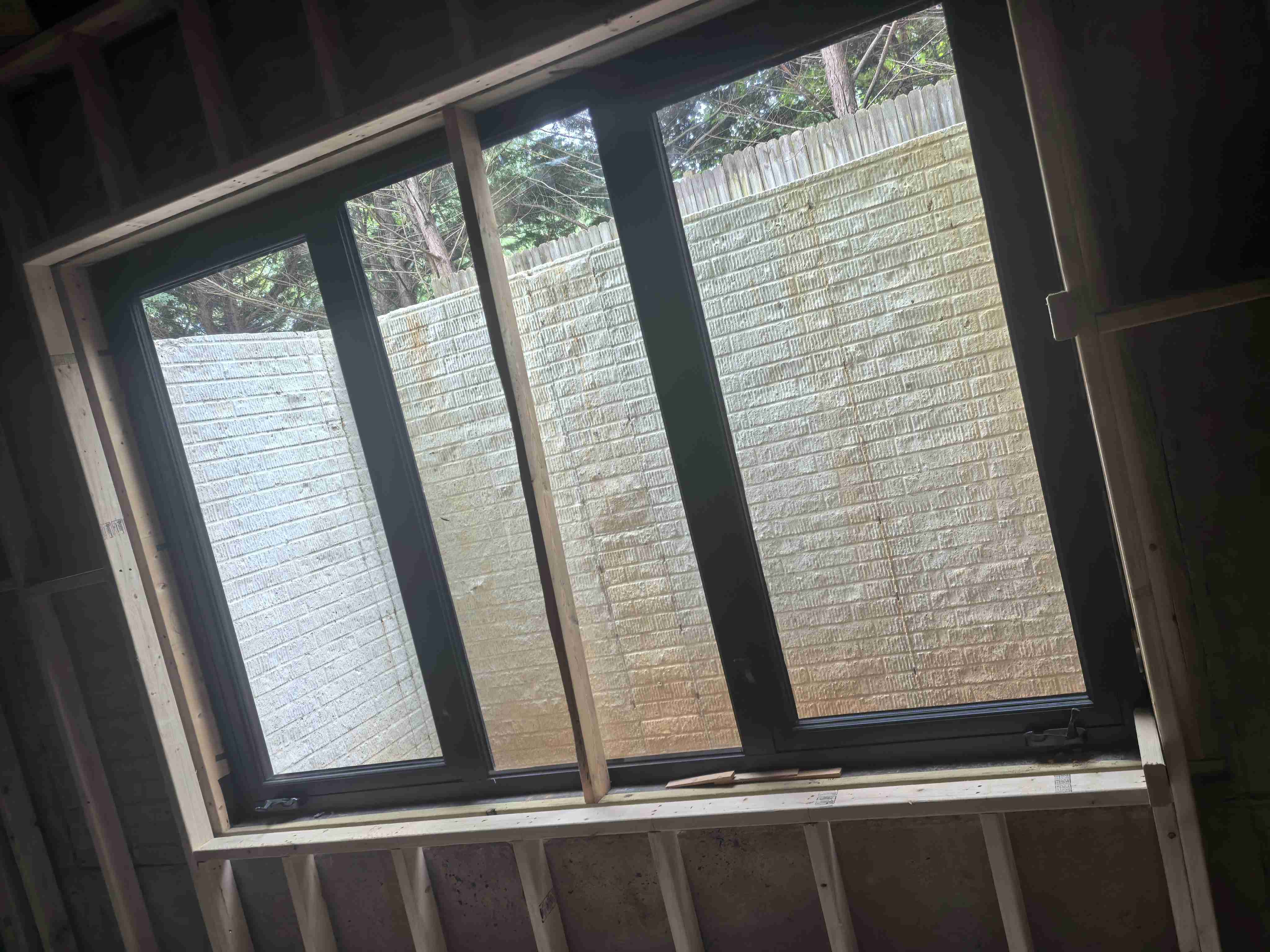

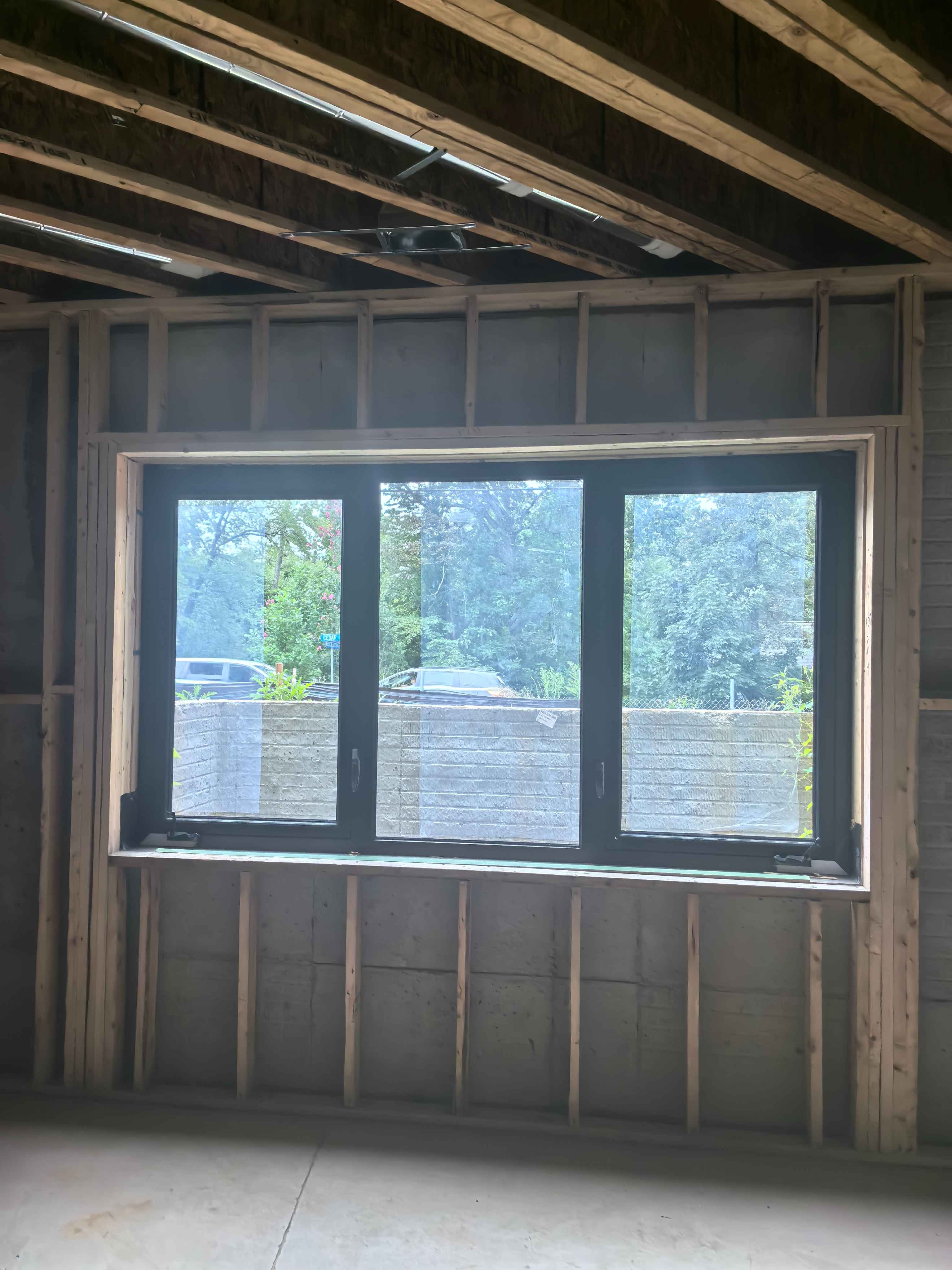

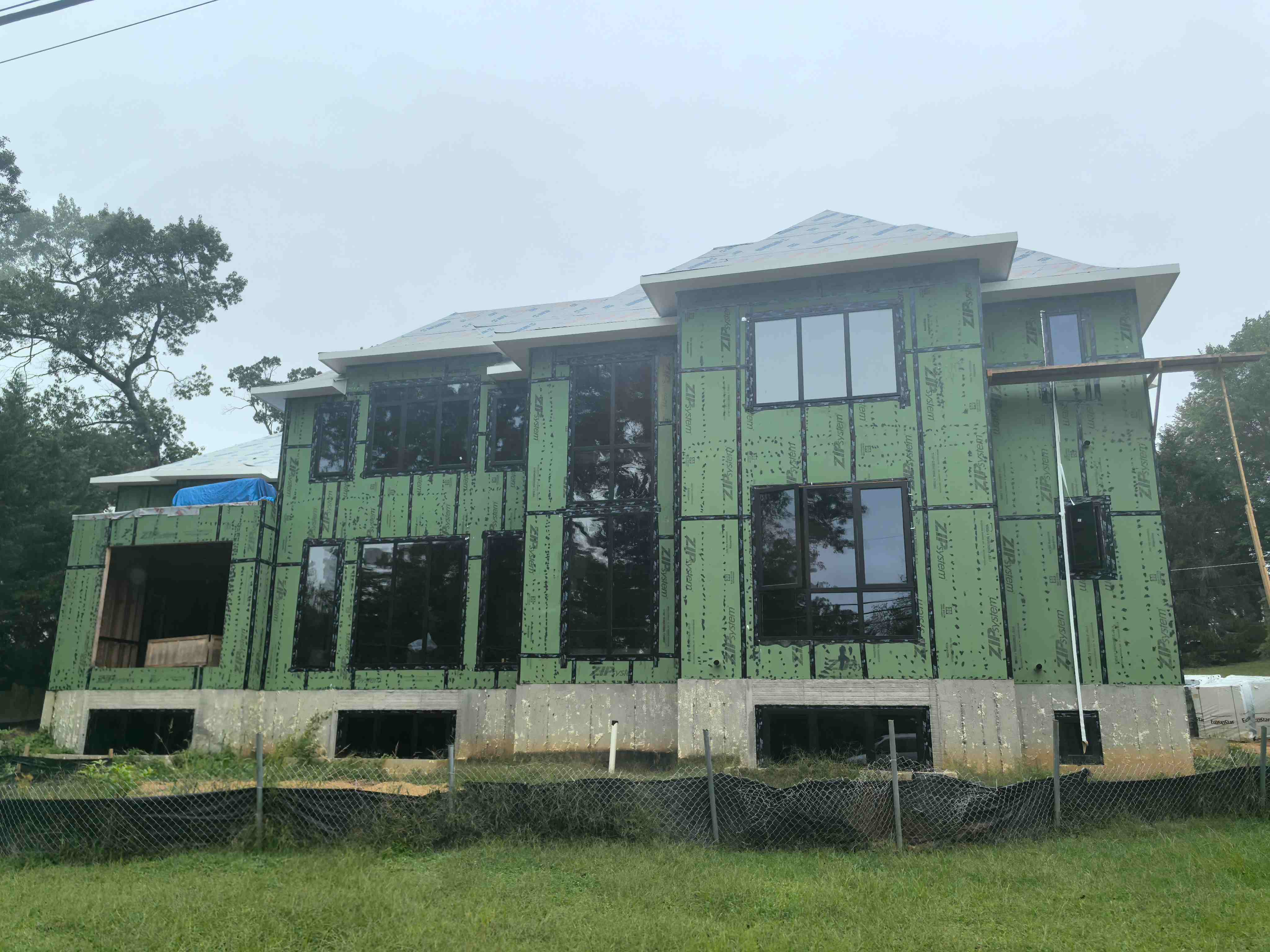

Case template:

• Project name: Urban Apartment Aluminum Tilt‑and‑Turn Window Project
• Location: Warsaw / Poland
• Scale: 1680 m² window area / 940 units
• Configuration: 92 series thermal‑break aluminum profile + 6+18A+6 Low‑E insulated glazing + 1500*2200mm glass panel size
• Customer feedback: High‑performance windows meet local energy‑saving standards and bring comfortable living experience for end users.

Service

• Samples: free sample windows available before ordering
• Design support: free drawing review, hardware selection and detailed design
• Quick response: inquiries replied within 24 hours; after-sales issues within 48 hours
• Warranty: 3 years on profile structure, 5 years on hardware (per company policy)
• Installation support: installation video and manual provided; on-site technical guidance available
• After-sales: long-term spare parts supply, lifetime parts service
• Quality commitment: every window inspected before shipment; no defective products leave the factory

FAQ

Q1: What is the difference between tilt & turn and casement windows?

A: Tilt & turn windows offer two opening modes — tilt for secure, rain-safe ventilation and full turn opening for cleaning and maximum airflow — while casement windows open only one way.

Q2: Can the window be cleaned from inside?

A: Yes. In turn mode the sash opens fully inward, allowing both sides of the glass to be cleaned safely from inside — ideal for high-rise buildings.

Q3: Is the tilt mode safe for children?

A: Yes. In tilt mode the opening gap is limited to approximately 10–15cm, preventing children from falling out while still allowing fresh air in. Child safety locks are also available.

Q4: What is the minimum order quantity (MOQ)?

A: custom MOQ depends on configuration — confirm with our sales team.

Q5: What is the production lead time?

A: Around 15–25 days for standard windows and 25–35 days for custom orders; partial shipments can be arranged for large orders.

Q6: What is the maximum opening sash size?

A: Opening sashes are generally produced up to about 1800mm wide × 2500mm high, subject to hardware load capacity and wind load calculation.

Q7: Do you support OEM/ODM?

A: Yes. We offer private label, logo printing, custom packaging, and new product development from customer drawings.

Q8: What is the warranty? How is after-sales handled?

A: 3 years on profile structure and 5 years on hardware. Report issues with photos and we will provide a solution within 48 hours.

Q9: What glazing options are available?

A: Double glazing, triple glazing, Low-E, laminated, tempered, frosted and built-in blinds. We can recommend the right configuration for your local climate.

Q10: How do you guarantee quality?

A: We use qualified suppliers for profiles, glass and hardware, run QC throughout production, and inspect every window before shipment with a certificate of conformity. Test reports are available.

Q11: Can I get a sample?

A: Yes. Samples / sample windows are available free or at cost (freight paid by customer); the sample fee is deductible from the first order.
